Hubbell LAREDO LLC Installation Instructions Manual

READ ALL INSTRUCTIONS CONTAINED HEREIN BEFORE PROCEEDING WITH INSTALLATION OF FIXTURE.

WARNINGS:

- HUBBELL LIGHTING WILL NOT WARRANTY ANY FIXTURES FOR ANY REASON IF THE INSTALLER OF THE
FIXTURE DOES NOT READ AND COMPLY WITH ALL OF THE INSTRUCTIONS CONTAINED HEREIN.
- DISCONNECT POWER BEFORE INSTALLATION OR SERVICING.
- INSTALL, OPERATE AND MAINTAIN TO MEET ALL APPLICABLE CODES.
- ALL SERVICING OR RELAMPING MUST BE PERFORMED BY QUALIFIED SERVICE PERSONNEL.
- ALL CONNECTIONS SHOULD BE CAPPED WITH SUITABLE INSULATED WIRE CONNECTORS (BY OTHERS).
- LAMP AND BALLAST MUST BE EQUAL ANSI CODE AND WATTAGE.
- THIS LUMINAIRE IS APPROVE ONLY FOR WALL MOUNT AND DOWNWARD ORIENTATION IN WET LOCATION.

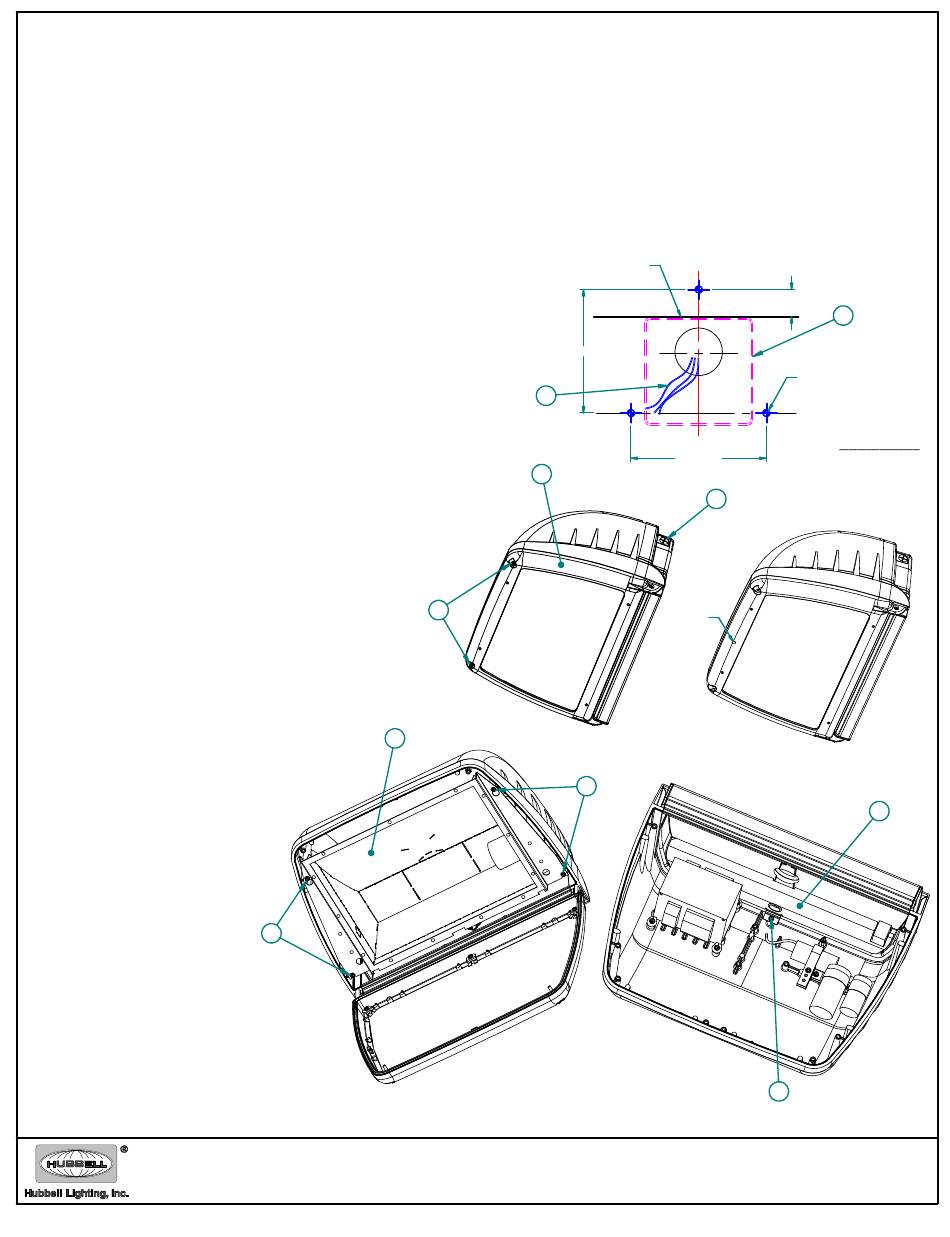

STEP-I MOUNTING PREPARATION

* Using template (page 4) lay over junction box (A)
on the wall. Mark at (3) hole.
* Drill wall for the hardware appropriate for
the type of wall. Use 1/4" diameter bolts (not provided).
* Pull the supply wires (B) from junction box (A).

STEP-II FIXTURE MOUNTING PREPARATION

* To open door (C), loosen (2) retaining screws (D).
* For optional quick release door latch,
push pin to open door.
(Fig. 3)
* Loosen (4) screws (E) then gently lower reflector (F).
* Lossen screws (G), remove cover (H).

STEP-III FIXTURE MOUNTING

* Insert all wires (B) thru opening
at the back of housing.
(Fig. 6)
* Hang fixture on the mounting hardware
at the wall thru key-slots opening (J).
* Tighten bolts securely.
* Apply caulking sealant around the
top and both sides of the housing.
Step-Iv Wiring
(Fig. 6)
POWER MUST BE OFF.
(WIRING MUST BE PERFORMED
BY A QUALIFIED ELECTRICIAN)
* Wire service leads to fixture power leads
according to local and National Elec. Codes.
* For direct wire connections, connect
ground wire to green wire then push
wire back to J-box on the wall. Connect
black to black and white to neutral then
push connections back inside J-box (A).
