Hubbell COMPASS CU2W Important Safeguards

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following.
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. Do not let power supply cords touch hot surfaces.
2. Do not mount near gas or electric heaters.
3. Equipment should be mounted in locations and at heights where it will not readily be subject
to tampering by unauthorized personnel.
4. The use of accessory equipment not authorized by the manufacturer may cause an unsafe condition.
5. Do not use this equipment for other than its intended purpose.
6. Servicing of this equipment should be performed by qualified service personnel.
7. Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency lighting units once a month for a
minimum of 30 seconds, and once a year for a minimum of 90 minutes.
•SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
•SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
WARNING – This product contains chemicals known to the State of California to cause cancer, birth
defects and/or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning,
or otherwise touching this product.

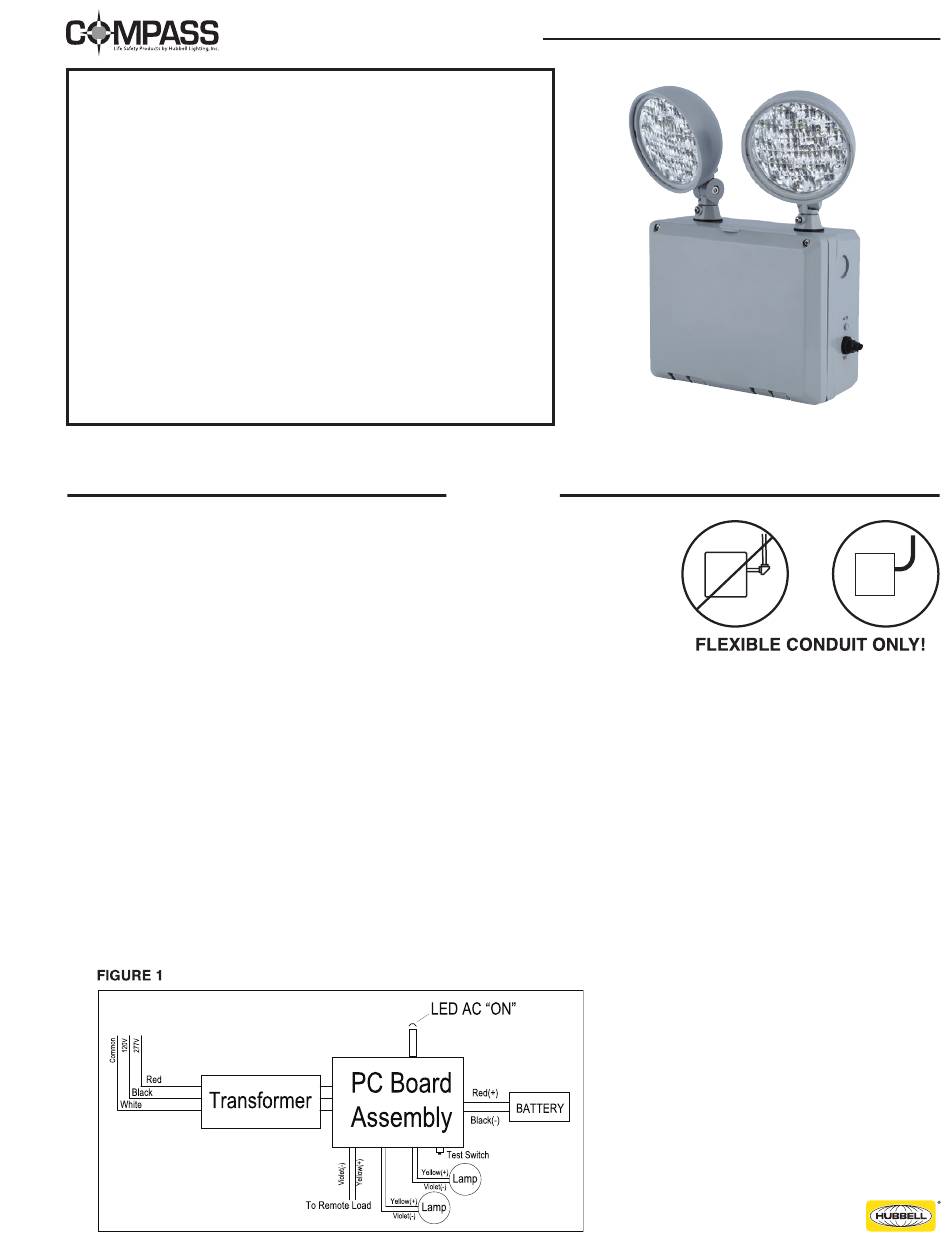

1. Mount the equipment securely in place using the hardware provided and
the mounting tabs on the back of the housing. If accessory mounting
devices are being utilized in this installation, follow any instructions
provided with those devices to ensure a safe installation.
2. Extend 24-hour AC supply of rated voltage to the equipment, which
is furnished with a dual-voltage 120V/277V field selectable input (see
Figure 1). The unit should be DRILLED for the connector in the proper
location as it relates to the location of the entry point of the power feed coming into the unit. There are
various places inside the unit that are suitable for this incoming power location. For 120V supply, connect
the line wire to the black lead. For 277V supply, connect the line wire to the red lead. Connect neutral wire
to the white lead. Connect the ground wire in accordance with local codes. A green ground lead is provided.
DO NOT energize circuit at this time.
3. CAUTION: Insulate the unused black or orange wire. Failure to insulate the unused wire will cause an
unsafe condition.
4. Connect the battery to the circuit board after the unit is installed.
5. Energize the AC supply. The CHARGE indicator will illuminate.
6. Replace the cover.
7. Adjust and focus the lighting heads a required.
CAUTION: If conduit is applied, use UL Listed Suitable for Wet Location parts.
INSTALLER:

INSTALLATION

WARNING:
UNUSED WIRES MUST
BE CAPPED USING
ENCLOSED WIRE NUTS
CU2W
Wet Location LED Emergency Light
