INSTALLATION, OPERATION & MAINTENANCE DATA SHEET
Luminaires are designed to be installed in Class I, Division 2, Class II, Division 1, or Class I Zone 2 Hazardous locations.
CAUTION: Before installing luminaire, make sure luminaire complies with area classifications, failure to do so may
result in bodily injury and/or property damage. Do not attempt installation until you are familiar with the following
procedures. All installation must comply with the applicable local and/or National Electrical Code and be
performed by a qualified electrician.
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that luminaire is grounded. Failure to ground will create electrical shock hazards, which can cause serious injury and
or death.
NOTE- For Class I, Division 2 / Class II, Division 1 / Class I, Zone 2 Hazardous Locations, use rigid conduit.
Note: Due to the surge protection provided in the fixture to protect the internal electronics and LEDs, a branch
circuit with the LED fixture may false fail a megohmmeter test (sometimes referred to as a megger test. If a
megohmmeter test is required, the LED fixture should be removed from the branch circuit.
Note: Multiple fluorescent or LED fixtures attached to a single Ground Fault Circuit Interrupter (GFCI) may cause
nuisance tripping of the GFCI. Regulatory agencies allow a small amount of leakage current because of the circuitry
required to mitigate possible issues with electromagnetic compatibility (reference UL8750 and EN61347). The summation
of these leakage currents from multiple fixtures may be enough to trip a GFCI.
P/N KIL00921398 FORM NO. K1398 R01/13 ECO-6-010-13
FOR
KFL SERIES LED LUMINAIRE FLOOD
KFL Series Typical
HUBBELL ELECTRICAL PRODUCTS
A Division of HUBBELL INCORPORATED
(Delaware)
3940 Martin Luther King Drive
St. Louis, Missouri 63113 USA

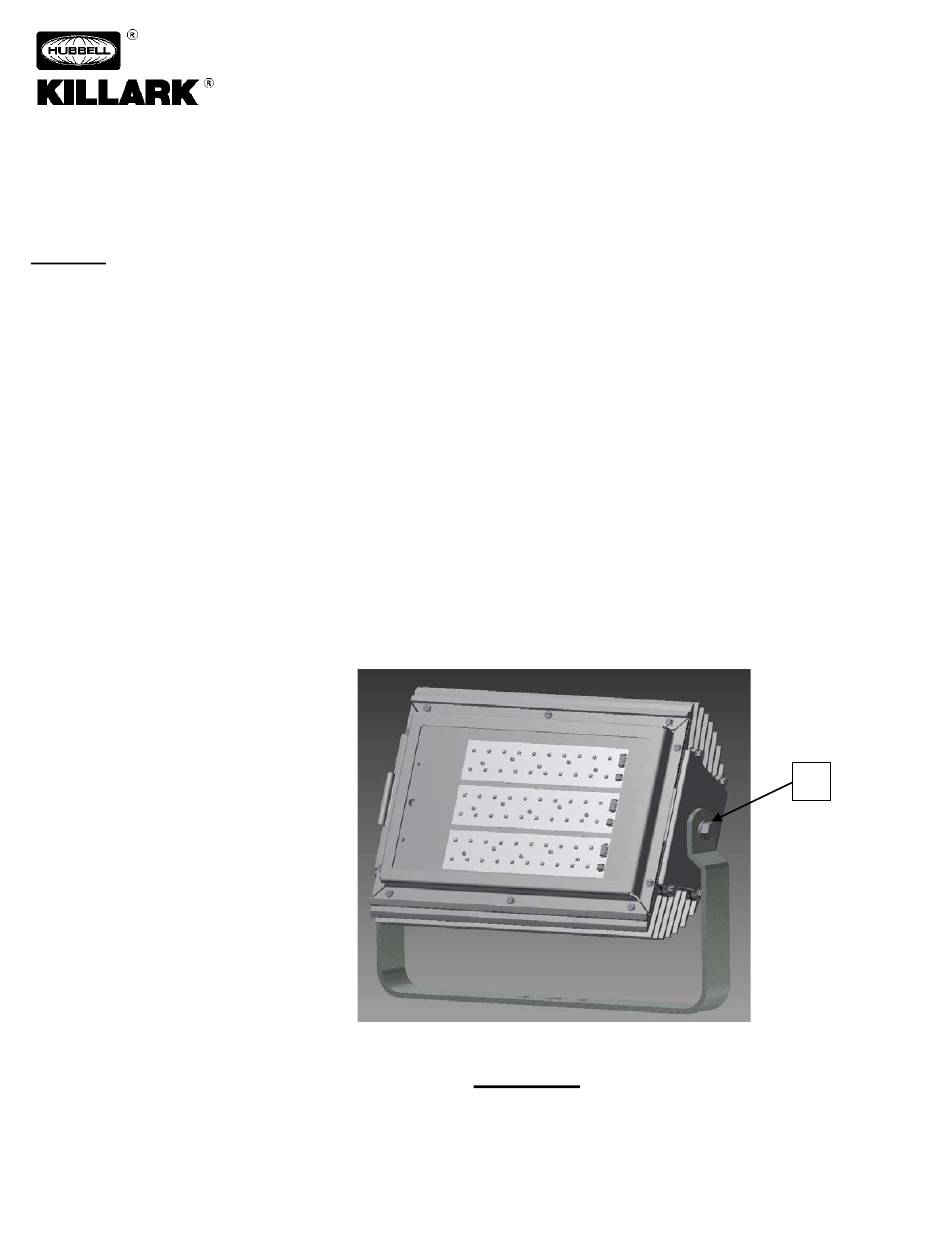

Figure 1
Assembly
A
Sheet 1 of 4
Advertisement
Related Manuals for Hubbell Killark KFL-DARK
Summary of Contents for Hubbell Killark KFL-DARK
- Page 1 HUBBELL ELECTRICAL PRODUCTS A Division of HUBBELL INCORPORATED (Delaware) 3940 Martin Luther King Drive St. Louis, Missouri 63113 USA INSTALLATION, OPERATION & MAINTENANCE DATA SHEET KFL SERIES LED LUMINAIRE FLOOD Luminaires are designed to be installed in Class I, Division 2, Class II, Division 1, or Class I Zone 2 Hazardous locations.
- Page 2 INSTALLATION INSTRUCTIONS: FLOOD LIGHT WITH YOKE MOUNT: (See Figure 1) 1. For convenience, install the yoke bracket on the trunnion before mounting the structure. 2. Loosen bolts (A) - aim the floodlight to the desired spot. 3. Tighten both bolts (A) securely. 4.
- Page 3 Aiming Designations The figures below refer to nameplate data as applicable. Fig. A Fig. B Fig. C Fig. D MAINTENANCE INSTRUCTIONS: CAUTION: Disconnect the supplying circuit before opening fixture or removing optics. To maintain maximum light output, this fixture should be cleaned periodically. Maintenance procedures sometimes require fixtures to be hosed down for good housekeeping.
- Page 4 Directions for Installation of KFL Accessories NOTE – Reflector (KFL-DARK) and Guard (KFLG) cannot be used simultaneously. KFL-DARK Reflector IMPORTANT- Before installing, check the fixture nameplate to be sure you have the correct fixture. WARNING- Turn OFF the supplying circuit before starting installation. 1) To install reflector, carefully remove the (7) screws provided in housing that align with the locations of the holes on the reflector and retain the screws.
