Section II Installation

2.1

General Information

The PM3000 comes with all mounting hardware and jacks for installation. Installation of the PM3000,
using the hardware supplied and available wiring does not require special tools or knowledge other than
described in FAA Advisory Circular 43.13-2. It is the installer's responsibility to determine the approval
basis for this installation. An FAA Form 337, or other approval may be required. See Appendix B for
example of FAA Form 337.
2.2

Unpacking and preliminary inspection

The PM3000 was carefully inspected mechanically and thoroughly tested electronically before shipment.
It should be free of electrical or cosmetic defect.
Upon receipt, verify that the parts kit (p/n 250-001-0001) includes the following:
PM3000 Installation Kit: 250-001-0001
Part Number
475-440-0318
625-003-0002
430-003-0003
425-025-0002
425-025-0003
475-002-0000
200-193-0000
122-001-0000
250-000-0061
475-003-0002
475-003-0003
550-001-0002
550-001-0003
550-008-0001
2.3

Equipment installation procedures

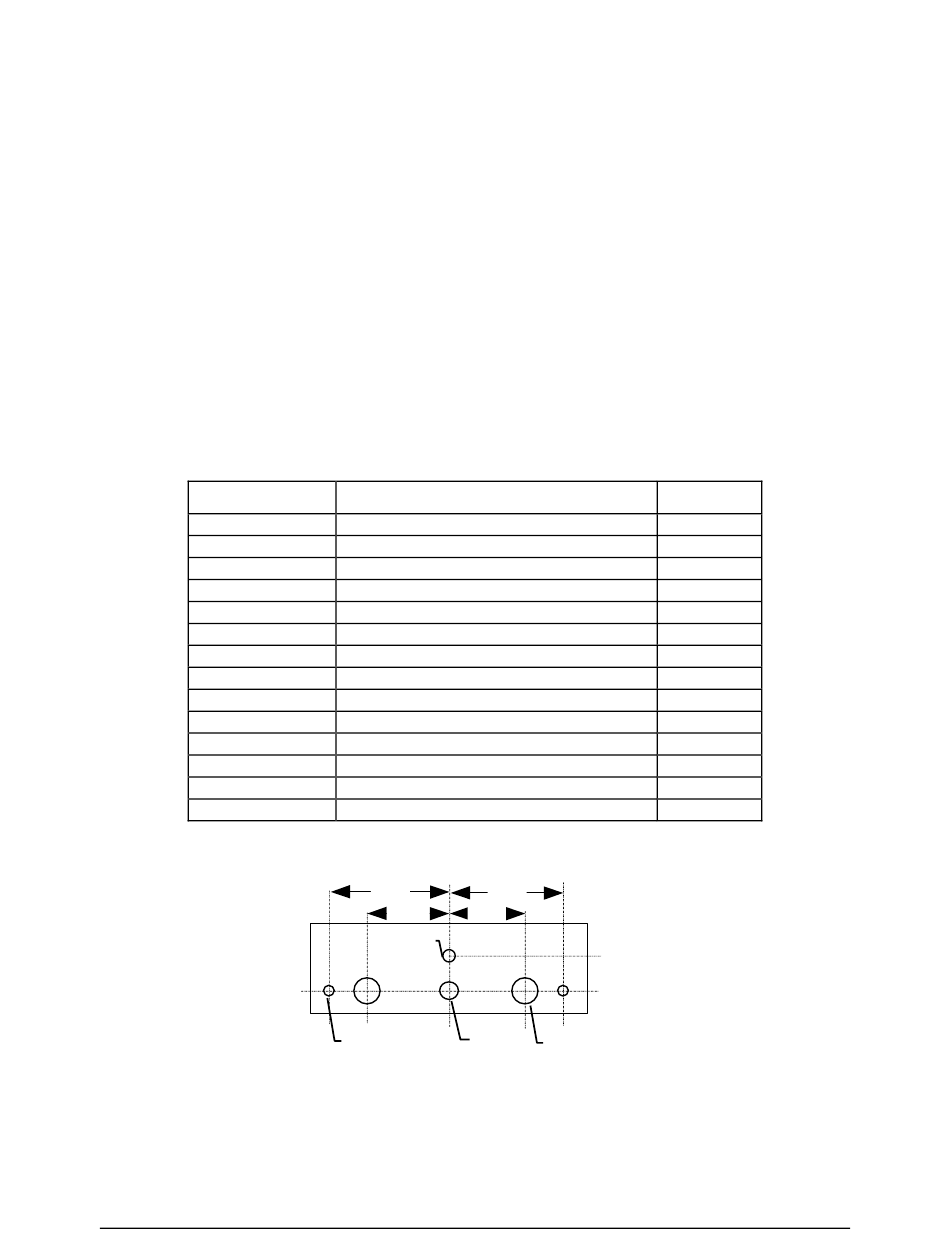

Figure 1-1 Hole Spacing
1. Using the template, drill six holes in the instrument panel in a location convenient to the pilot
position(s).
200-193-0000
PS Engineering Incorporated
PM3000
Installation and Operation Manual
Description
#4-40 Machine screws, black
Knobs (Soft Touch)
PM3000 faceplate (Aluminum)
25 pin Sub-D male connector
Connector hood
Connector Thumbscrews
Operator's and Installation Manual
Drill Template
6-place jack kit containing the following
Insulated Shoulder Washers
Insulated Flat Washers
Stereo Headphone Jack
Microphone Jack
Music Input Jack ?"
1.200
1.200
" 0.838 "
0.838
0.250
0.297
2 ea. 0.125
NOT TO SCALE
1
Page
Quantity
2
2
1
1
1
2
1
1
X
12
12
6
6
2
0.325
2 ea. 0.314
Rev. 0, May 1998
