PS Engineering PMA8000D Pilot's Manual And Operation Manual

Audio selector panel, marker beacon receiver, stereo intercom system with bluetooth connectivity for dual audio panel installations
Hide thumbs Also See for PMA8000D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation & Operator's Manual
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
PMA8000D
PMA8000D
Audio Selector Panel
Marker Beacon Receiver
Stereo Intercom System
with Bluetooth™ Connectivity
For Dual Audio Panel Installations

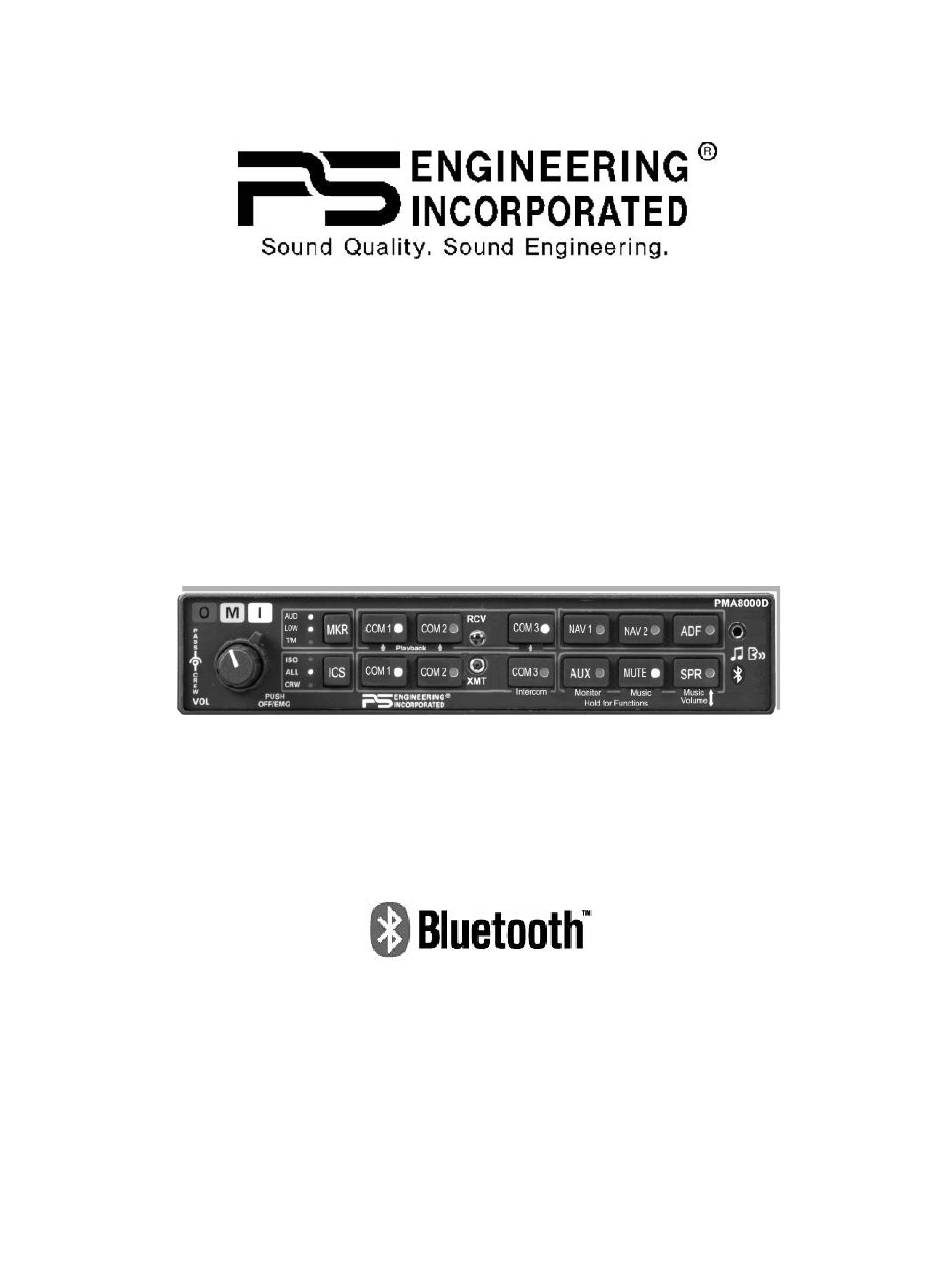

Pilot's Guide
Pilot's Guide
and
and
Operation Manual
Operation Manual
202-890-0304
For serial no. BD1023 & above
Rev. 2, Oct. 2014
Covered under one or more of the following Patent
No. 4,941,187, 5,903,227, 6,160,496, 6,493,450
FAA-Approved: TSO C50c, C35d
EASA-Approved ETSO C50c, 2C35d
Flying never sounded so good ®
Oct. 2014
PMA8000D Pilot Guide
202-890-0304
Page 1
