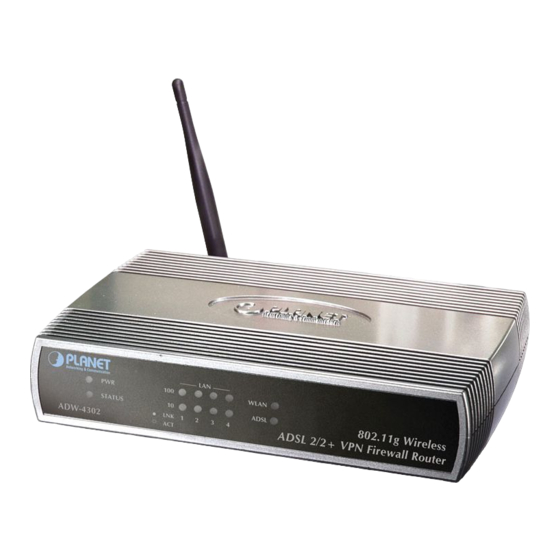

Planet Networking & Communication ADW-4302 Manual

802.11g wireless adsl 2/2+ vpn
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Package Contents
The following items should be included:
• The ADSL2/2+ Wireless VPN Firewall Router Unit
• 1 Cat-5 Ethernet (LAN) cable
• 1 RJ-11 (ADSL) cable
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual.
If any of the above items are damaged or missing, please contact your dealer
immediately.

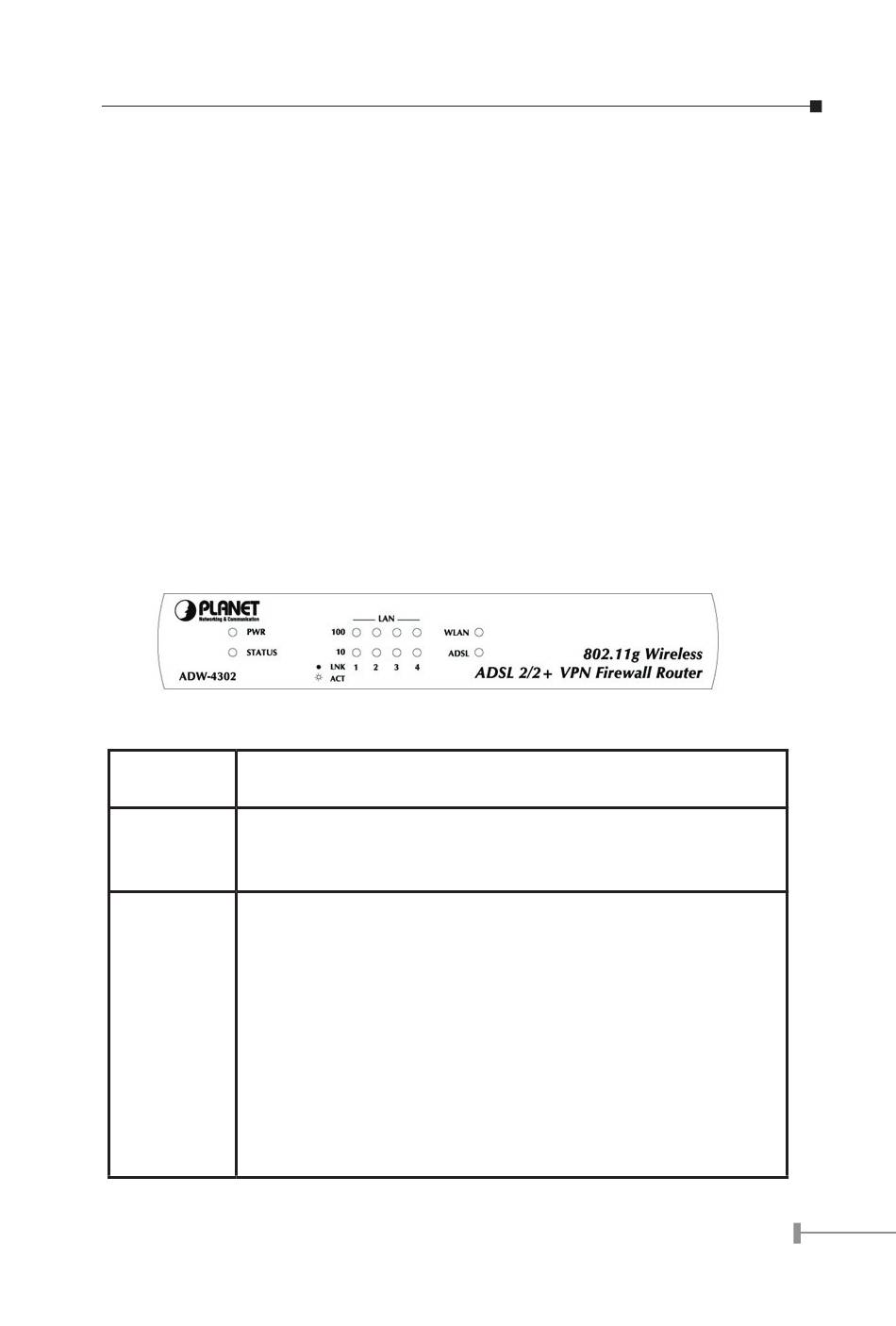

Physical Details
Front-mounted LEDs
PWR LED
On - Power on.
Off - No power.
S T A T U S
Off - Normal operation.
LED
Blinking - This LED blinks during start up, and during a Firm-
ware Upgrade.
LAN
For each port, there are 2 LEDs, to indicate the connection speed
(10Base-T or 100Base-T) of each port.
• 100 LNK/ACT - This will be ON if the LAN connection is us-
• 10 LNK/ACT - This will be ON if the LAN connection is using
• If neither LED is on, there is no active connection on the
ing 100Base-T, and Blinking if data is being transferred via
the corresponding LAN port.
10Base-T, and Blinking if data is being transferred via the
corresponding LAN port.
corresponding LAN port.
1

Advertisement

loading

Related Manuals for Planet Networking & Communication ADW-4302

Summary of Contents for Planet Networking & Communication ADW-4302

  • Page 1 Package Contents The following items should be included: • The ADSL2/2+ Wireless VPN Firewall Router Unit • 1 Cat-5 Ethernet (LAN) cable • 1 RJ-11 (ADSL) cable • Power Adapter • Quick Installation Guide • CD-ROM containing the on-line manual. If any of the above items are damaged or missing, please contact your dealer immediately.

  • Page 2: Installation Procedure

    Use standard LAN cables (RJ-45 connectors) to con- LAN connections nect your PCs to these ports. Reset Button This button will reset the ADW-4302 to the factory default settings. (Reset to Defaults) To do this, press and hold the Reset Button for five (5)
  • Page 3 • The ADSL LED should be ON if ADSL line is connected. Configuration The ADW-4302 contains a HTTP server. This enables you to connect to it, and configure it, using your Web Browser. Your Browser must support JavaScript. The configuration program has been tested on the following browsers: •...
  • Page 4 IP Address during configuration. Using your Web Browser To establish a connection from your PC to the ADW-4302: 1. After installing the ADW-4302 in your LAN, start your PC. If your PC is already running, restart it. 2. Start your WEB browser.
  • Page 5 Common Connection Types Type Details ISP Data required Dynamic Your IP Address a) ADSL parameters (VPI and VCI) IP Address is allocated au- may be required, if they cannot be t o m a t i c a l l y , detected automatically.

  • Page 6: Home Screen

    Home Screen After finishing the Setup Wizard, you will see the Home screen. When you connect in future, you will see this screen when you connect. An example screen is shown below. Further information If you still have problem on connecting to your ISP, please check the user’s manual on the bundled CD for detail configuration.
