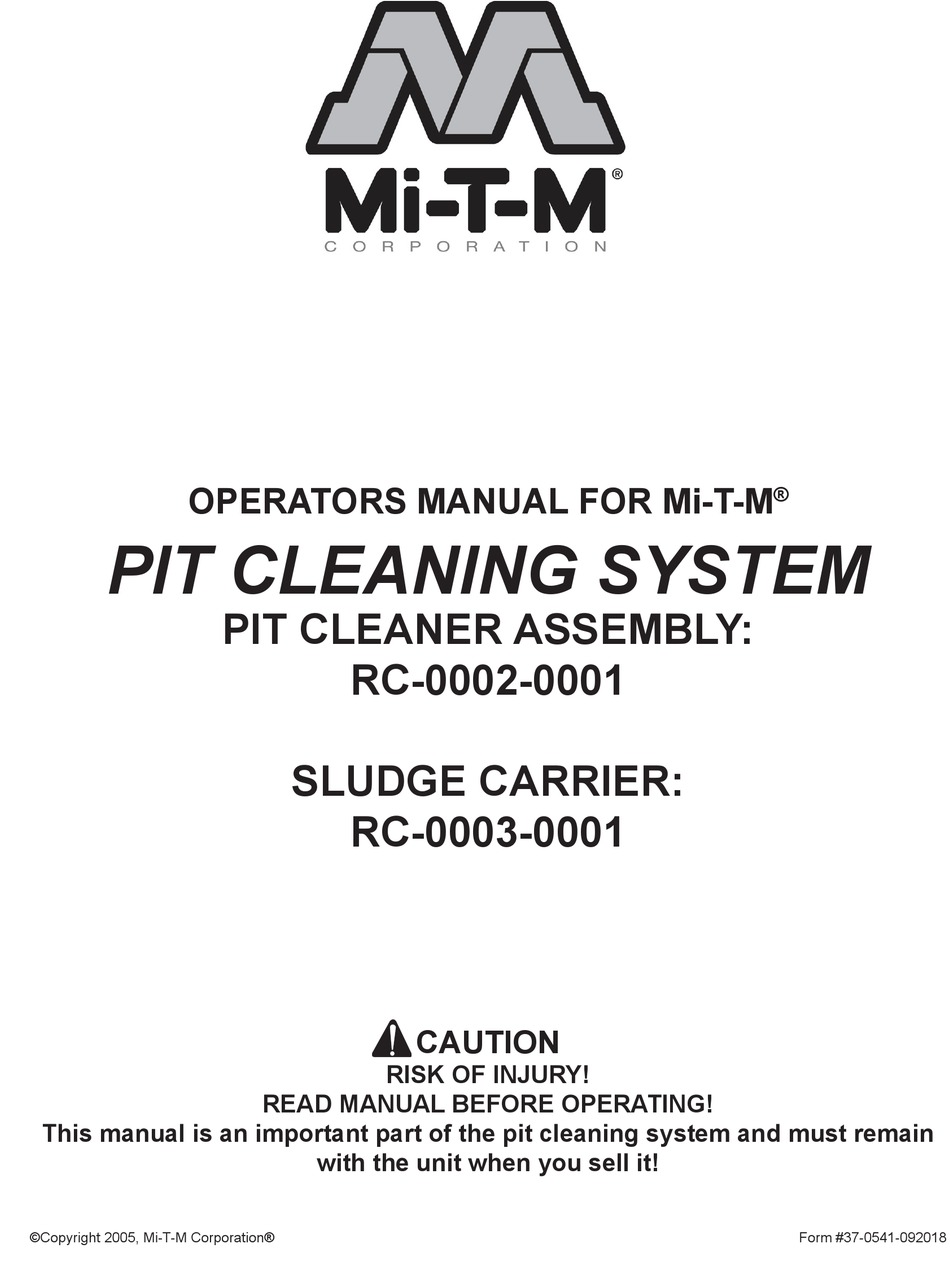

OPERATORS MANUAL FOR Mi-T-M
®
PIT CLEANING SYSTEM
PIT CLEANER ASSEMBLY:
RC-0002-0001
SLUDGE CARRIER:
RC-0003-0001
CAUTION
RISK OF INJURY!
READ MANUAL BEFORE OPERATING!
This manual is an important part of the pit cleaning system and must remain
with the unit when you sell it!
Mi-T-M
Pit Cleaner Operator's Manual
1
©Copyright 2005, Mi-T-M Corporation®
Form #37-0541-092018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC-0002-0001 and is the answer not in the manual?

Questions and answers

Related Manuals for Mi-T-M RC-0002-0001

Summary of Contents for Mi-T-M RC-0002-0001

  • Page 1 OPERATORS MANUAL FOR Mi-T-M ® PIT CLEANING SYSTEM PIT CLEANER ASSEMBLY: RC-0002-0001 SLUDGE CARRIER: RC-0003-0001 CAUTION RISK OF INJURY! READ MANUAL BEFORE OPERATING! This manual is an important part of the pit cleaning system and must remain with the unit when you sell it!

  • Page 2: Table Of Contents

    State of California to cause birth the State of California to cause cancer and birth defects or other reproductive harm. For more defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov information go to www.P65Warnings.ca.gov Mi-T-M Pit Cleaner Operator's Manual ®...

  • Page 3: Introduction

    INTRODUCTION Congratulations on the purchase of your new Mi-T-M Pit Cleaning system! You can be assured your Mi-T-M Pit Clean- ing system was constructed and designed with quality and performance in mind. Each component has been rigorously tested to ensure the highest level of acceptance.

  • Page 4: Contents

    CONTENTS Carefully unpack your new Mi-T-M Pit Cleaning system. Check the contents against the packing list. Contact the freight line if a damage claim is required on any component. The following items are the basic equipment sent with your Pit Cleaning system.

  • Page 5: Purpose

    EPA standards. The Pit Cleaner connects to your Mi-T-M pressure washer in place of its standard gun/lance assembly, and uses the force of the high pressure water to create a vacuum to remove debris and sludge from the pit. The Pit Cleaner comes with a #4 nozzle which will work with a variety of pressure washers ranging from 1000-4000 PSI and 2–4 GPM.

  • Page 6: Important Safety Warnings

    ALWAYS shut off the unit and trigger the gun to release trapped pressure. (Even after you shut off the unit, there is high pressure water left in the pump, hose and gun until you release it by triggering the gun.) Mi-T-M Pit Cleaner Operator's Manual ®...

  • Page 7: Risk Of Bodily Injury

    NEVER squeeze the trigger unless securely nozzle. braced. NEVER trigger the gun while on a ladder or roof. DO NOT leave pressurized unit unattended. Shut off the pressure washer and release trapped pressure before leaving. !SAVE THESE INSTRUCTIONS! Mi-T-M Pit Cleaner Operator's Manual ...

  • Page 8: Pit Cleaner System Flow Chart

    (5), the hose directs the mixed flow into the Sludge Cart (6). The mixed flow is then deposited into the Filtration Bag where the solids and sludge materials are filtered from the water, and retained in the bag allowing the cleaned water to return to the pit system. Mi-T-M Pit Cleaner Operator's Manual ®...

  • Page 9: Explanation Of Sludge Pump Operation

    PVC body of the Pit Cleaner a vacuum (venturi action) is formed at the bottom end of the Sludge Pump. Debris and Sludge from the pit is pulled up into the high pressure stream and out through the body of the Pit Cleaner. Mi-T-M Pit Cleaner Operator's Manual ...

  • Page 10: Pit Cleaner Assembly Instructions

    3. Attach the lance assembly to the main wand assembly by pressing the pipe into the clamps until the clamps are fastened securely (two clicks). 4. Attach the quick connect from the lance assembly to the plug of the sludge pump assembly. Mi-T-M Pit Cleaner Operator's Manual ®...

  • Page 11: Operating Instructions

    10. Place the next bag on the Sludge Carrier and continue cleaning, replacing the bag when necessary. REPLACEMENT PARTS Biodegradable Filter Bags (Qty. 5) ........RC-0003-0002 Replacement O-ring for 1/4” Quick Connect ....25-0123 Repair Kit for Gun ............. 70-0055 Mi-T-M Pit Cleaner Operator's Manual ...

  • Page 12: Parts List Pit Cleaner

    PARTS LIST PIT CLEANER Mi-T-M Pit Cleaner Operator's Manual ®...
  • Page 13 25-0481 Quick Coupler Socket 17-0001 Sludge Pump Assembly Hose Assembly Quick Connect Plug 17-0002 Coupler 55-0053 Reducer 23-0017 Flex Hose (20') 15-0212 Adapter-Cam & Groove 55-0061 *Must order in one foot lengths. Nozzle-0004 18-0045 Mi-T-M Pit Cleaner Operator's Manual ...

  • Page 14: Parts List Sludge Cart

    Sludge Cart 5-0166-A01 Gasket 25-0481 Plug 62-0125 Filter Bag-Burlap 41-0190 Elbow Fitting 55-1610 Wheel 14-0017 Adapter 55-0024 30-0117 Pipe *(.23' required) 55-1600 Handle Grips 7-0143 Fitting 55-1622 *Must order in one foot lengths. Fitting 55-1686 Mi-T-M Pit Cleaner Operator's Manual ®...

  • Page 15: Statement Of Warranty

    There are no warranties which extend beyond the description of the face hereof. Under no circumstances shall Mi-T-M bear any responsibility for loss of use of the unit, loss of time or rental, inconvenience, commercial loss or consequential damages.
  • Page 16 Mi-T-M Pit Cleaner Operator's Manual ®...
