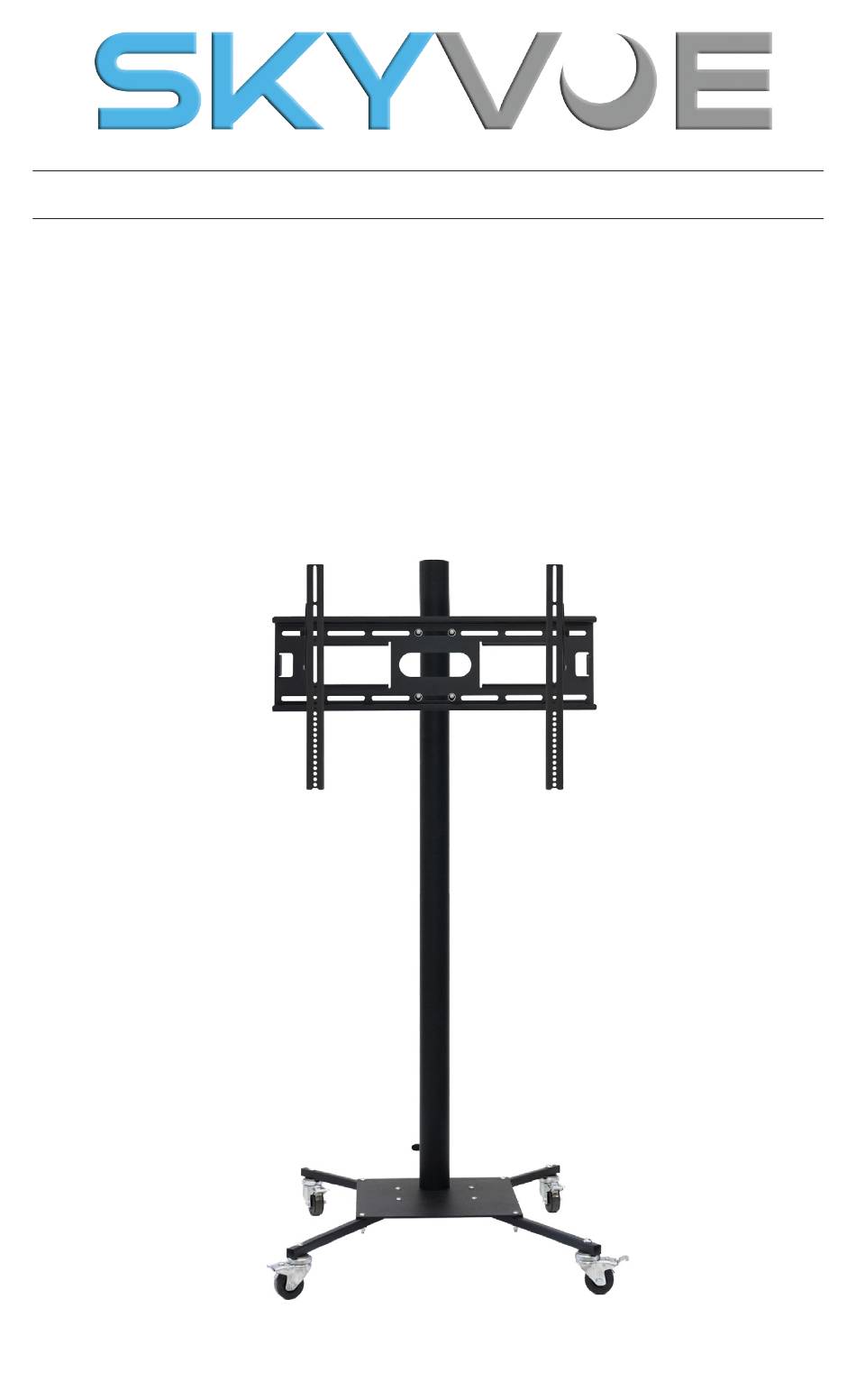

- Page 1 NXG 55 Portable Cart & Tilt Mount Assembly Manual...
-
Page 3: Table Of Contents
TILT MOUNTS ..............5 BASE PLATE ASSEMBLY ..........6 POST TO PLAY ASSEMBLY ..........8 POST TILT MOUNT ASSEMBLY ........11 PARTS FOR POST TILT MOUNT ........13 TILT MOUNTS ..............14 U-BOLTS AND MOUNTING PLATE ASSEMBLY ..... 15 nXG 55 ortable anual... -
Page 4: Portable Cart Installation
Parts for Post Assembly: back front this item is found in parts box Gather the following: 1. 1- Post 2. 1- Base Plate 3. 1 - Post Lock - Handle 4. 4 - Outriggers ® All Rights Reserved. 2017 SkyVue... -
Page 5: Tilt Mounts
The tilt mount portion of a portable cart is provided in a separate box labeled “PTM” and is size specific. See below for the appropriate sizes. 55” Class Televisions Tools Required for Post Assembly: 9/16” 9/16” Ratchet Crescent Wrench with 9/16” Socket nXG 55 ortable anual... - Page 6 Once this is done reapeat these instructions and steps three more times for the remaining casters and outriggers. With all for outriggers assembled proceed to the next stage of the assembly process. ® All Rights Reserved. 2017 SkyVue...
-
Page 7: Base Plate Assembly
Gather the following: 4 qty. - Outriggers Base Plate Remove the bolts, washers and nuts from the four outriggers as shown. Align the holes on outriggers with the indicated holes on the base plate as shown. nXG 55 ortable anual... - Page 8 Allen wrench on the other. The base plate is complete when all four (4) outriggers are securely attached and tightened. ® All Rights Reserved. 2017 SkyVue...
-
Page 9: Post To Play Assembly
Post to Plate Assembly: Upper Cable Entry Hole Lower Cable Exit Hole Hole Post Lock - Handle Located on side Set Screw Preinstalled Bottom of Post Brass Fitting for Friction Reduction nXG 55 ortable anual... - Page 10 You have now completed the cart assembly portion of your Portable Cart Mount. ® All Rights Reserved. 2017 SkyVue...
- Page 11 55 ortable anual...
-
Page 12: Post Tilt Mount Assembly
Post Tilt Mount Assembly Manual NXG 5550... - Page 13 Portable Cart 2. 2- U-Bolts - (4) Flat Washers, (4) Lock Washers, (4) Powder Coated Nuts 3. 2- U-Bolt Saddles 4. 4 - Rubber Bolt Caps 5. Appropriately sized tilt mount (Located in the box labeled “PTM”) nXG 55 ount anual...
-
Page 14: Tilt Mounts
“PTM” and is size specific. PTM Boxes will contain the following items: 2- Mounting Arms 1- Locking Bar 1- Mounting Plate Tools Required for PTM Assembly: 9/16” 9/16” Ratchet Crescent Wrench with 9/16” Socket ® All Rights Reserved. 2017 SkyVue... -
Page 15: U-Bolts And Mounting Plate Assembly
U-Bolts should be hooked around the post and through the holes on the U-Bolt Saddles. These should be positioned near the upper cable entry hole. With U-Bolts and saddles in place, slide mounting plate over the U-bolt ends. nXG 55 ount anual... - Page 16 3. Thread black powder coated nuts over bolt ends and hand tighten. See figure 3a for suggested mounting plate placement. 4. Once positioned, level and tighten all U-bolt nuts on mounting plate. 5. Place rubber bolt caps over exposed bolt ends ® All Rights Reserved. 2017 SkyVue...
- Page 17 55 ount anual...
- Page 18 Lay blanket down on flat sturdy surface. Run hand over surface to make sure there are no sharp object or protrusions, when the television is laying down. Lay television down, viewing side down on blanket. ® All Rights Reserved. 2017 SkyVue...
- Page 19 The following instructions apply to NXG 55” Television These will be in a separate Gather the clamping nuts with springs. bag shipped with the User Manual Packet. Remove the hex head screws and washers. Set the screws and washers in a secure location.
- Page 20 Mount Plate SECURE BY Locking Bar INSERTING LOCKING BAR Congratulations you have successfully installed your post tilt mount. If you have any questions feel free to contact our technical support team (877) 475-9883 option 2 ® All Rights Reserved. 2017 SkyVue...
