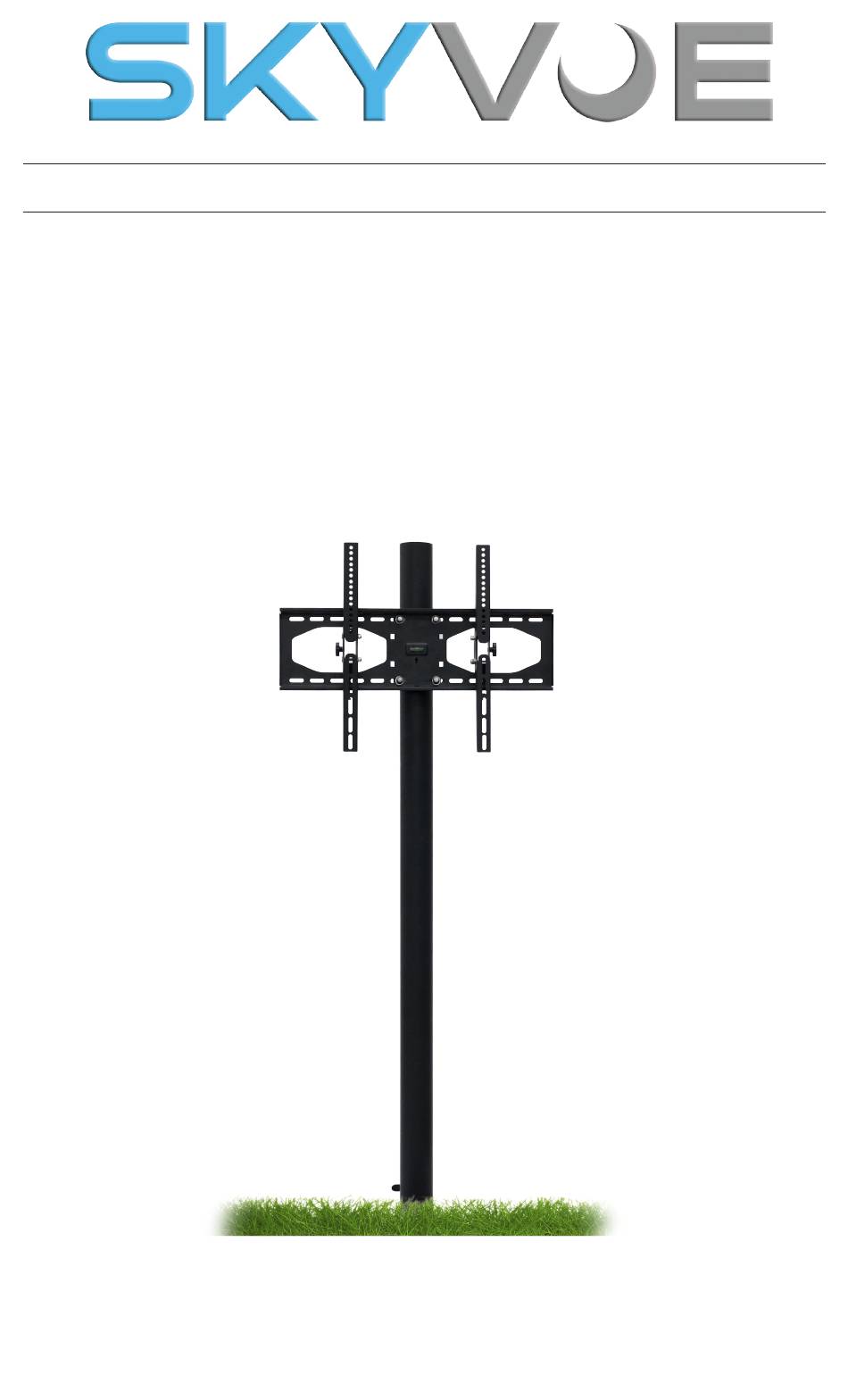

- Page 1 OBX 32 / OBX 42 In-Ground Post Assembly Manual In-Ground Post...
- Page 3 In-Ground Post Setup...
- Page 5 Tools Required for in-ground post Setup: 1. Shovel 2. Post Hole Digger 3. Wheelbarrow and Garden Hoe (For mixing concrete.) 4. Bag of Concrete Mix (Amount of concrete will vary, additional bags may be needed to complete this installation) 5. Short In-Ground Post Sleeve 6.
- Page 6 Once the hole is dug, gather your wheelbarrow for concrete mixing. Be careful when mixing concrete. Wear gloves and eye protection if possible. Do not handle concrete by hand without gloves as it may damage or burn the skin. ® All Rights Reserved. 2017 SkyVue...
- Page 7 Pour the concrete mix into your wheelbarrow or mixing container. Check the packaging for the amount of water needed to create a mix of concrete. After measuring, pour the water into one side of the wheelbarrow or container. Be sure to measure the amount of water needed.
- Page 8 Pour slowly and evenly until concrete mix has reached ground level. Once the mixture has been poured into the hole gather the short post sleeve to be inserted in the next step. ® All Rights Reserved. 2017 SkyVue...
- Page 9 With assistance insert the short post sleeve into the center of the concrete. It’s important that the post sleeve is inserted straight down and as level as possible. Continue to press the sleeve down until the flange is against the concrete mixture.
- Page 10 Congratulations you are now finished with the concrete and post set up portion of this installation. If you have any questions feel free to contact our technical support team at (877) 475-9883, option 2. ® All Rights Reserved. 2017 SkyVue...
- Page 11 Notes:...
- Page 13 Post Tilt Mount Assembly OBX 32000/OBX4270...
- Page 15 Parts for Tilt Mount Assembly: these items are found in parts box 1. Previously assembled post: Deck Post, In-ground Post, or Portable Cart 2. 2- U-Bolts - (4) Flat Washers, (4) Lock Washers, (4) Powder Coated Nuts 3. 2- U-Bolt Saddles 32”/42”...
- Page 16 PTM Boxes will contain the following items: 2- Mounting Arms 2- M6 Carriage Bolts 1- Mounting Plate 2- ABS Washers 2- Tilt Control Knobs 2- Lock Washers Tools Required for PTM Assembly: 9/16” Ratchet with 9/16” Socket ® All Rights Reserved. 2017 SkyVue...
- Page 17 U-Bolts and Mounting Plate Assembly: U-Bolt Post Saddle Top View U-Bolts should be hooked around the post and through the holes like shown with the arrows above, on the U-Bolt Saddles. These should be positioned near the upper cable entry hole. With U-Bolts and saddles in place, slide mounting plate over the U-bolt ends.
- Page 18 Assembly Manual- Post Tilt Mount ® All Rights Reserved. 2017 SkyVue...
- Page 19 U-Bolts and Mounting Plate Assembly Cont.: 1. With U-bolts threaded through the mounting plates, place stainless steel flat washers over the bolt ends. 2. Place stainless steel lock washers over bolt ends. 3. Thread black powder coated nuts over bolt ends and hand tighten. See figure 3a for suggested mounting plate placement.
- Page 20 4. Place then twist the knob on to the bolt. Do not tighten all the way this will control the amount of tilt the television has once it is put on the wall bracket. ® All Rights Reserved. 2017 SkyVue...
- Page 21 Lay blanket down on flat sturdy surface. Run hand over surface to make sure there are no sharp objects or protrusions, when laying down the television. Lay television down, viewing side down on blanket. oBX 32000 / oBX 4270 ount...
- Page 22 You may adjust the position of the clamp nuts with springs up or down as needed. oth kNoBs Need to face the sides of the televisioN Ideal positioning for clamp nuts with springs are shown above as red dots. ® All Rights Reserved. 2017 SkyVue...
- Page 23 Reinsert the bolts and washers from previous step and tighten securely as shown. Repeat this process for all 4 clamp nuts with springs to secure mounting arms to the back of the television. Be sure to check that the mounting arms leveled with each other before attempting to mount the television.
- Page 24 SET & TIGHTEN KNOBS SECURE BY TIGHTENING SET SCREW Congratulations you have successfully installed your post tilt mount. If you have any questions feel free to contact our technical support team (877) 475-9883 option 2 ® All Rights Reserved. 2017 SkyVue...
