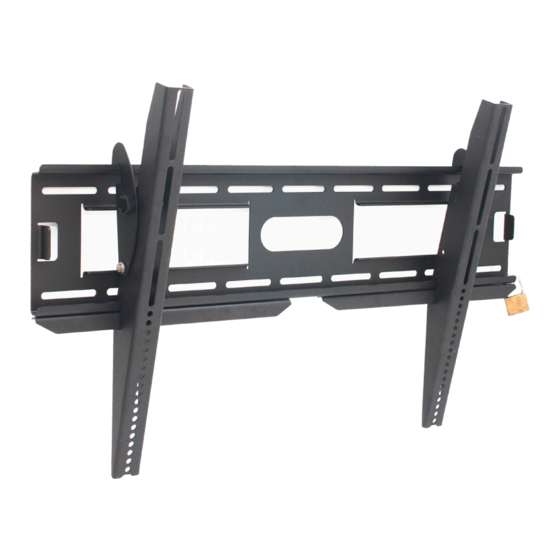

Skyvue NXG-55 Installation Manual

Tilt mount

Hide thumbs Also See for NXG-55:

NXG-55

Tilt Mount

Installation Manual

Table of Contents

Need help?

Do you have a question about the NXG-55 and is the answer not in the manual?

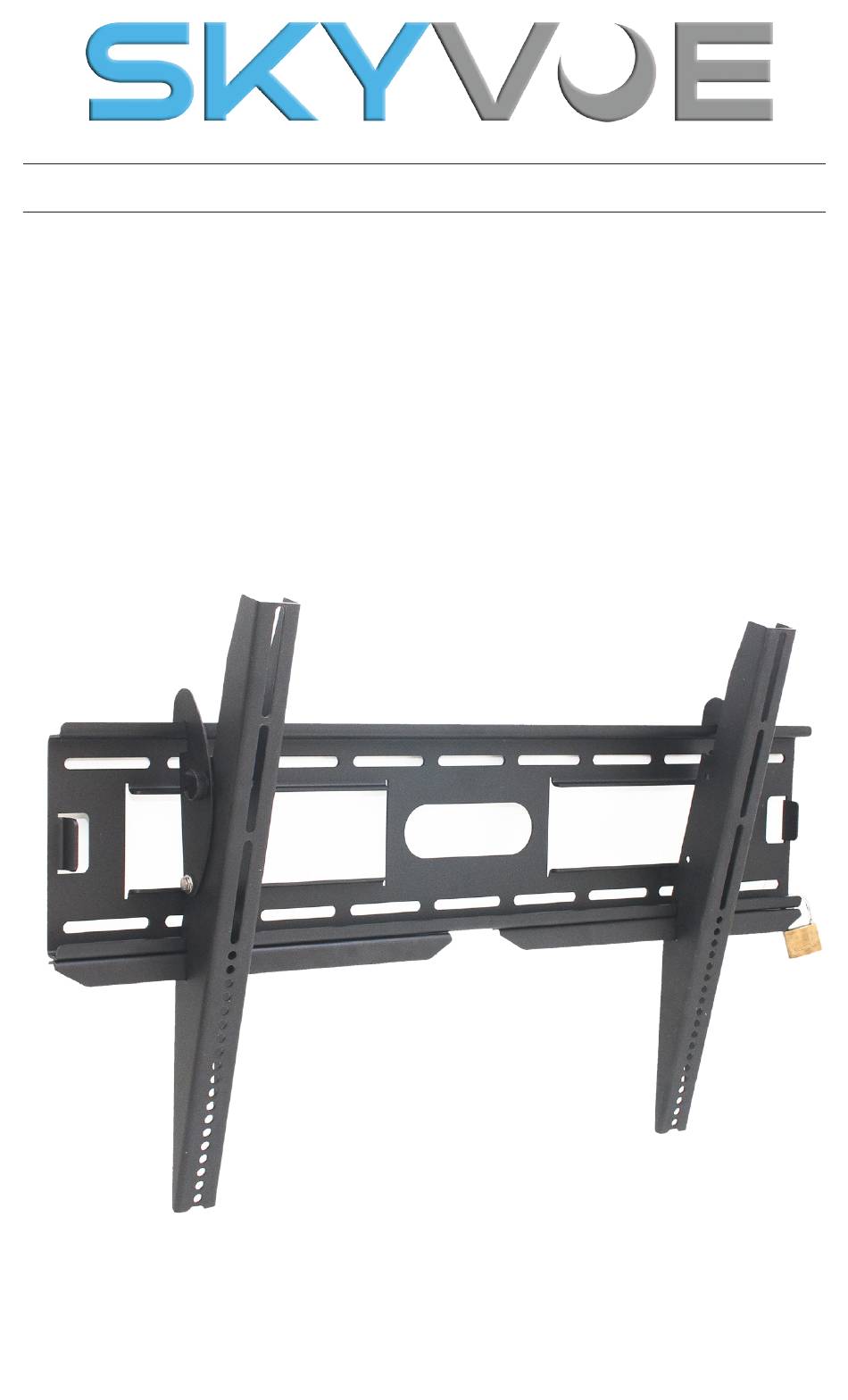

Page 1 NXG-55 Tilt Mount Installation Manual...
Page 3 Included in the tilt mount kit: 2- Mounting Arms 4- 5/16”x 2 ½” Lag Screws 1- Mounting Plate 4- 5/16” Lag Shields 2- Locking Bars 4- 5/16” Flat Washers Tools Required for Installation: Masonry Wood 1/2” 1/2” 3/16” Ratchet with 1/2” Socket Drill with 1/2”...
Page 4 Lay blanket down on flat sturdy surface. Run hand over surface to make sure there are no sharp object or protrusions, when the television is laying down. Lay television down, viewing side down on blanket. ® All Rights Reserved. 2017 SkyVue...
Page 5 The following instructions apply to NXG 55” Television These will be in a separate Gather the clamping nuts with springs. bag shipped with the User Manual Packet. Remove the hex head screws and washers. Set the screws and washers in a secure location.
Page 6 With wood bit, drill 3/16” pilot hole. Hold the plate to the wall. Make sure the plate is level. Using the 4 supplied lag bolts and washers secure plate to the wall. ® All Rights Reserved. 2017 SkyVue...
Page 7 With the help from a friend, lift the television and attach the hooks on the mounting arms to the plate on the tilt mount. Tighten knobs on arms once the tilt is set correctly for the television. Insert locking bars and secure by fastening with a pad lock for added security.
