Cleaning the check valve units

14  Maintenance / Repairs
Rev. 00 05/19

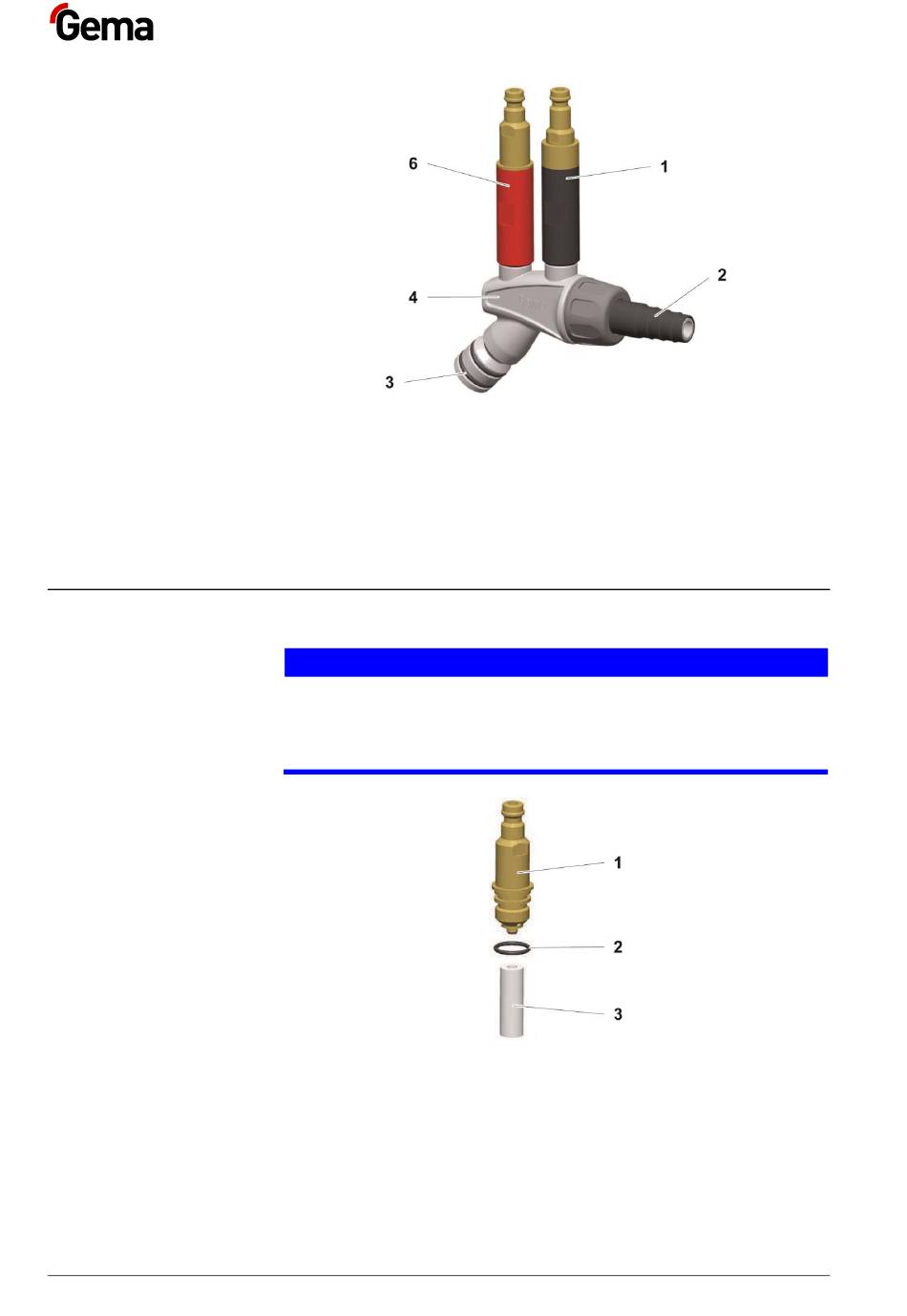

fig. 4
1 Check valve unit
(supplementary air)
2 Powder hose quick release
connection
3 Powder hopper connection
ATTENTION
Parts of the check valve unit may be damaged during the
dismantling process.
► Blow off the filter elements from the inside to the outside!
► Do not immerse the filter elements in fluidities or solvents
fig. 5
1 Connection/plug
2 O-ring
4 Injector housing
6 Check valve unit
(conveying air)
3 Filter element
