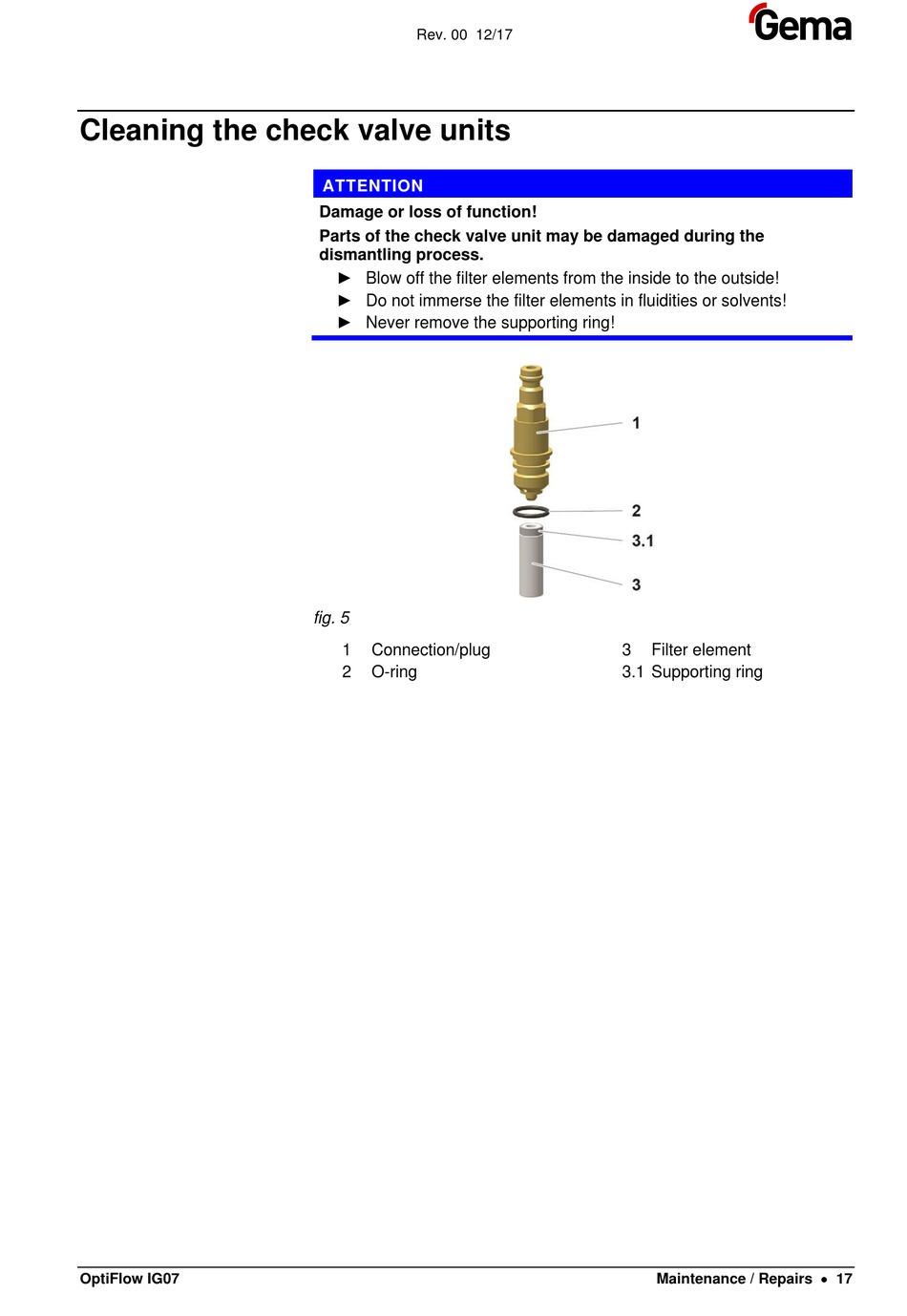

Cleaning the check valve units

OptiFlow IG07
Rev. 00 12/17
ATTENTION
Damage or loss of function!
Parts of the check valve unit may be damaged during the
dismantling process.
► Blow off the filter elements from the inside to the outside!
► Do not immerse the filter elements in fluidities or solvents!
► Never remove the supporting ring!
fig. 5
1 Connection/plug
2 O-ring
3 Filter element
3.1 Supporting ring
Maintenance / Repairs  17
