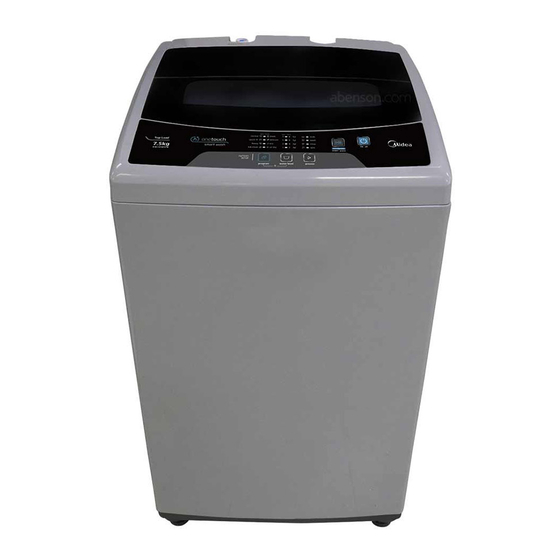

Washing Machine
OWNER'S MANUAL
FP-90LTL065GETM-N2
FP-90LTL075GETM-N2
Read This Manual
Use all instructions and explanation on
installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
washing machine is sold or passed on,
ensure that the new owner always receives
this manual.
Advertisement
Table of Contents
Related Manuals for Midea FP-90LTL065GETM-N2
Summary of Contents for Midea FP-90LTL065GETM-N2
- Page 1 Washing Machine OWNER’S MANUAL FP-90LTL065GETM-N2 FP-90LTL075GETM-N2 Read This Manual Use all instructions and explanation on installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the washing machine is sold or passed on, ensure that the new owner always receives...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ..............INSTALLATION Product description ..............Installation area ................ Unpacking the washing machine ........Installation of drain hose ............Levelling the washing machine ..........Selection of tap ................Connection of inlet hose, tap and washing machine..OPERATIONS Preparation before washing........... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction... - Page 4 SAFETY INSTRUCTIONS Model Washing Capacity Standard Water Pressure FP-90LTL065GETM-N2 6.5kg 0.03MPa~0.8MPa FP-90LTL075GETM-N2 7.5kg 0.03MPa~0.8MPa Explanation of the symbols: Warning! This combination of symbol and signal descriptive indicates a potentially dangerous situation which may result in death or serious injuries unless it is avoided.
- Page 5 SAFETY INSTRUCTIONS Note! This combination of symbol and descriptive word indicates a potentially dangerous situation which may result in slight or minor injuries. Warning! Electric shock! • This washing machine is for indoor use only. • Do not put this washing machine in a humid place.
- Page 6 SAFETY INSTRUCTIONS Risk to children! • he appliance can not be used by children and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It is not intended for built-in installation. • The openings must not be obstructed by a carpet. • The w ashing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS Operating the appliance! • Before washing the clothes for the first time, the product shall be operated without clothes using tub clean as the recommended program • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for top-loading fully automatic washing machines.
-
Page 9: Installation
INSTALLATION Product Description Water inlet valve Top lid Frame Power cord and plug Control panel Handle Cabinet Adjustable foot knob Drain hose Note! • ll illustrations in this manual are for reference only. lease refer to the product ,for actual appearance of the parts Accessories Inlet hose ass cabinet baseboard... -
Page 10: Installation Area
INSTALLATION Installation Area Warning! • Stability is important to prevent the product from moving • Make sure that the product dose not stand on power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation 4.Room temperature is above 0 C... -
Page 11: Levelling The Washing Machine
INSTALLATION Warning! • Do not kink, protract or compress the drain hose. • Position drain hose properly otherwise improper position may result in water leakage. • If drain hose is too long, do not force it into washing machine as this will cause abnormal noises. -
Page 12: Selection Of Tap
INSTALLATION Selection of tap Please select appropriate tap. Ordinary tap Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall clamp nut 1.Loosen clamp nut 2.Loosen four 3.Set connecting base 4.Tighten clamp nut on tap and tighten to show 5mm... -
Page 13: Operations
OPERATION Preparation Before Washing Caution! • Before washing, please make sure that the unit is installed properly. • Before washing for the first time, the washing machine shall be operated without clothes using tub clean as the recommended course. Open tap Plug in load and Close lid Add detergent... -
Page 14: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • Before washing , lease check the clothes labels and the detergent usage instructions. se low-density detergent before wash suitable for washing machines . Take items out Tie tassels into a knot, Check the label of the pockets fasten zippers and buttons Put small clothes into a... -
Page 15: Control Pane
OPERATION Control Panel Soak Wash Rinse Spin Program Water level Process Child Lock Note! • This illustration is for reference only. Please refer to the product ,for actual appearance. On/Off Start/Pause Turn the unit on or off. Press the button to start or pause the washing cycle. -
Page 16: Options
OPERATION Option Water Level Allows you to select the water level, depending on the clothing category, degree of soiling, and washing habits. Process You can choose from the following: wash only, spin only, number of rinses, with or without soaking, and other settings. -
Page 17: Personalized Setting Of Washing Program
OPERATION Personalized setting of washing program Customers can select the washing program according to actual need, and set washing, rinsing & spinning & water volume function function Program Start Water Level Process (Power) Operations of washing process The user can set a single process or combinations of washing, rinsing and spinning freely according to the need. -
Page 18: Washing Program Table
OPERATION Washing Program Table Programs are available according to the laundry type. Only for washers having these functions Program Suitable to wash heavily-stained/ thick clothes. Jeans: Quick: Suitable to wash lightly - stained clothes and clothes (Quick 15’) for summer. Cleans the inner and outer surface of the tub, by running a Tub clean program (wash, rinse, &... -
Page 19: Cleaning And Care
MAINTENANCE Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use wet cloth to wipe it off immediately. -
Page 20: Troubleshooting
MAINTENANCE Troubleshooting If the appliance does not start or it stops during the operation, initially try to nd a solution to the problem based on the table below. Otherwise, contact the service center. Description Inspection Items If the power is o or the fuse is burned out. If the water volume reache... -
Page 21: Technical Information
MAINTENANCES Technical Specifications Rated Standard Water Model Washing Dimension Power Supply Power (W*D*Hmm) Pressure Capacity Weight FP-90LTL065GETM-N2 6.5kg 515 x 525 x 915 29kg 400W 220-230V AC, 60Hz 0.03MPa~0.8MPa 29kg FP-90LTL075GETM-N2 7.5kg 515 x 525 x 915 0.03MPa~0.8MPa 450W 220-230V AC, 60Hz...
Need help?
Do you have a question about the FP-90LTL065GETM-N2 and is the answer not in the manual?
Questions and answers
How to reset midea washing machine FP-90LTL065GETM-N2 machine screen shows E1 and stops after 1 time of washing.
To reset the Midea washing machine FP-90LTL065GETM-N2 when it shows an E1 error (alarm for abnormal water filling):
1. Check if the water tap is open.
2. Ensure the inlet hose is properly connected.
3. Verify that the water pressure is within the standard range (0.03MPa~0.8MPa).
4. After checking and correcting the issue, try to use the appliance again.
If the problem persists, contact the service center.
