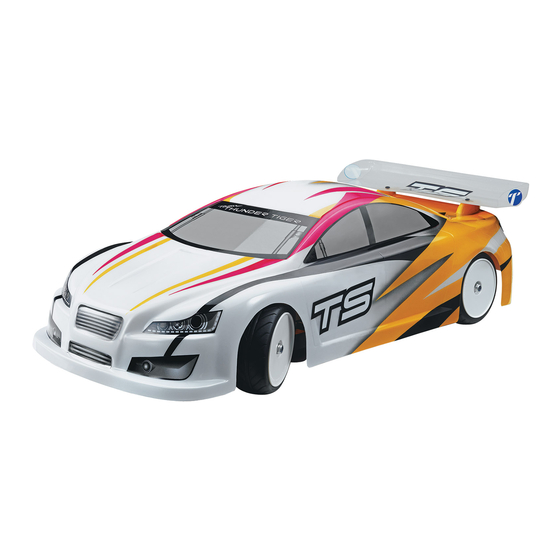

1:10 NITRO POWERED 4WD RACING CAR
This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.
本產品為高性能模型非一般玩具，組裝與操作前，請詳閱本產品說明書。
The contents are subject to change without prior notice due to product improvements and specificatrion changes.
本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之因，我們將保留產品規格變更權力，不再另行通知使用者。
Instruction Manual & Parts Catalogue
Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship. The total monetary value under
warranty will in no case exceed the cost of the original kit purchased. This warranty does not cover any components damaged by use or modification.
Part or parts missing from this kit must be reported within 60 days of purchase. No part or parts will be sent under warranty without proof of purchase.
To receive part or parts under warranty, the service center must receive a proof of purchase and/or the defective part or parts. Should you find a
defective or missing part, contact the authorized Thunder Tiger Service/Distributor nearest you. Under no circumstances can a dealer or distributor
accept return of a kit if assembly has started.
本公司對於製造過程中產生之瑕疵，負完全品質保證責任。
保證事項僅限於產品本身與隨產品所附之零配件。
品質保證不包含下列事項
因使用、組裝或調整本產品所發生之損壞。
其他所有非產品本身品質所造成之損壞。
1:10
引擎動力四驅競速房車
操作說明書及零件包型錄
WARRANTY
No. 6724-F28 PLUS 3.5
No. 6725-F28 LUXE 3.5
品質保證事項
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THUNDER TIGER TS4n
Summary of Contents for THUNDER TIGER TS4n
- Page 1 品質保證事項 Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship. The total monetary value under warranty will in no case exceed the cost of the original kit purchased. This warranty does not cover any components damaged by use or modification.
-
Page 2: Table Of Contents
前言 Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely to reduce problems during operation. -
Page 3: Important Notes & Warning 重要注意事項
2. Thunder Tiger assumes and accepts no responsibility for personal and/or property damages resulting from the use of improper building materials, equipment and operations. By the act of assembling or operating this product, the user accepts all resulting liability. -
Page 4: Items Required For Operation 周邊配件
ITEMS REQUIRED FOR OPERATION 周邊配件 95% Assembled, Almost Ready to Run for ACE Tx Ready Engine/Motor, ESC, Receiver, Servos Installed Requires compatible Transmitter, Battery and Charger 本體95%組裝完成，自備ACE遙控器。 4-Way Wrench 引擎發動機或馬達、電調、伺服機及相關電裝組配完成。 需另備 相容系統之遙控器，電池與充電器。 4向六角螺帽套筒扳手 95% Assembled, Ready to Run Engine/Motor, ESC, Radio/Servos Installed Requires Battery and Charger 本體95%組裝完成。... -
Page 5: Charging The Glow Plug Igniter 電夾充電方式
CHARGING THE GLOW PLUG IGNITER 電夾充電方式 Glow plug igniter and charger has to be purchased separately. 充電電夾需另外選購 a. Plug the charger into an AC outlet, and then pull on the igniter lever to accept the charging adapter. b. At this point, the small red LED indicator on the charger should light up indicating the charging sequence is in progress. c. -
Page 6: Radio Operation 遙控器操作
RADIO OPERATION 遙控器操作 servo reverse switches servo trim knobs a. When turning your system on, ALWAYS turn on the transmitter FIRST. b. Then, turn on the receiver. When turning off, ALWAYS turn the receiver off FIRST, then the transmitter off. c. -
Page 7: Binding Process 安全校頻配對(鎖碼)
BINDING PROCESS 安全校頻配對(鎖碼) A binding feature is included in the ACE RC Cougar 2.4GHz spread spectrum system to ensure the transmitter and receiver bind properly and prevent interference from other controllers. To manually bind Tx/Rx, please proceed as per the following steps: a. -
Page 8: F/S-Fail Safe 防暴衝設定
F/S-FAIL SAFE 防暴衝設定 How to Set the Fail Safe (F/S) Position a. After binding the transmitter and receiver, you can continually set up the F/S position. Turn on the transmitter power and then receiver power. b. Press the “Binding SW” button on the receiver. 10 seconds later, the LED will turn green flash on the receiver. (Caution! Don't release the “Binding SW”... -
Page 9: Operating Radio Steering Function 遙控器設定－轉向
OPERATING RADIO STEERING FUNCTION 遙控器設定－轉向 a. Check the radio steering functions. With the radio transmitter and receiver on, turn the steering wheel/stick to the left. The front tires/wheels should turn left accordingly. If not, flip the steering servo reverse switch. b. -
Page 10: Operating Radio Throttle/ Brake Function 遙控器設定－油門、中立、煞車
OPERATING RADIO THROTTLE/ BRAKE FUNCTION 遙控器設定－油門、中立、煞車 a. Check the radio throttle/brake functions. With the radio transmitter and receiver on, pull the trigger / push the stick forward. The carburetor should be fully opened and the brake disengaged. To reverse this function, flip the throttle/brake servo reverse switch. b. -
Page 11: Fuelling 燃油的添加
(replace with new one). After checking, reinstall the glow plug. The glow plug used for this engine can be: Thunder Tiger 9281, McCoy #9 / #59, Novarossi C4S / C5S / C6S,OS #8 / #A3 / #A5, and Picco P6S / P7S. -
Page 12: Starting The Engine 發動引擎
STARTING THE ENGINE 發動引擎 Not pull on over 35cm a. Turn on the radio (transmitter first, then receiver). b. Clip the glow plug igniter onto engine's glow plug. c. Pull on the engine starter, release, repeat until the engine starts. Throttle maybe required to be opened momentarily, but release back to neutral immediately after it starts. -
Page 13: Engine Setting 引擎設定
ENGINE SETTING 引擎設定 Due to different fuel formula, operating elevation, humidity . . . etc. The engine may / may not operate properly at initial setting. Please follow the following procedure to achieve proper carburetor setting. Do not perform this procedure until the engine has been properly broken in. a. -
Page 14: Maintenance After Running 車體保養
MAINTENANCE AFTER RUNNING 車體保養 a. Always turn off the radio system and disconnect the battery pack when the car is not in use. b. Remove the sand, mud, dirt, and any other elements completely from the car before you store it. c. -
Page 15: Troubleshooting 常見問題與解決方法
TROUBLESHOOTING 常 見 問 題 與 解 決 方 法 If you have trouble starting or keeping your TS4n running, here's a quick checklist of what to look for first. 如果您的 有行駛上的問題，您可以參考下的說明。 TS4n 如果問題無法解決，請與購買經銷商聯絡。 Description 問題 Problem 可能原因 Solution 解決方法... -
Page 16: Set-Up
Optional Part for 6725-F28 TS-4n LUXE, purchase separately... -
Page 25: Ts4N Plus / Luxe Spare Parts List 共用零件包
For No.6724 No.6725 TS4n SPARE PARTS LIST 共用零件包 9262 9442 PD0592 PD0801 PD0802 AIR CLEANER,12/15 CAR ENGINE,PRO-18BX PRESSURE FITTING DIFFERENTIAL SET TS- DIFF PULLEY/CASE TS-N S1 空氣濾清器組 車用引擎,PRO-18 加油嘴組 差速皮帶輪組零件包 差速皮帶輪殼組零件包 PD0803 PD0804 PD0807 PD0810 PD0811 DIFFERENTIAL GEAR TS-N S... - Page 26 For No.6724 No.6725 TS4n SPARE PARTS LIST 共用零件包 PD0860 PD0861 PD0863 PD0867 PD0871 REAR SHOCK SPRING BL SILICONE DIAPHRGM TS SHOCK PLASTIC PART T SHOCK SHAFT TS-4 COUPLER TUBE 後避震彈簧零件包 空氣活門零件包 避震器零件包 避震器軸零件包 加速管接頭零件包 PD0876 PD0959 PD0954 PD0955 PD0958 B.BEARINGS(4)d8*D14*W4mm...
- Page 27 For No.6724 No.6725 TS4n SPARE PARTS LIST 共用零件包 PD7668 417T FR PD7669 177T RR PD7670 162T CTR PD7660 PD7662 PD7665 PD7666 BELT ROLL BAR,TS-4N 1/10 FLYWHEEL R-CLIPS(4),LONG UPPER DECK BRACE 飛輪組 時規皮帶組 提把組 R型插銷組 後補強板組 PD7693 PD7694 PD7497 PD7681 PD7672...
-
Page 28: Ts4N Plus Spare Parts List 專用零件包
避震器本體組 底板組 PD7664-R PD7683 PD7526 UPPER DECK , ROUGE,TS-4N SHOCK CAP,ROUGE(2),TS-4N LINKAGE SET 二樓板組 避震器上固定帽組 前後一體拉桿組 For No.6725 TS4n LUXE SPARE PARTS LIST 專用零件包 PD0875 BALL BEARINGS 5x11x4mm 軸承零件包 PD0829 PD7667 PD0870 PD0813 BALL END TS-4 TIE ROD TS-4 傳動軸組... -
Page 29: Ts4N Plus / Luxe Spare Parts List 共用零件表
PD7671-T PD7675 底板零件包 二段變速離合器罩 二樓板組 避震器套件組 兩段變速組 MAIN CHASSIS,TI 2.5mm 2 SPEED PINION CLUTCH 13T/16T UPPER DECK , TI,TS-4N 1/10 TOURING SHOCK,TS4N 2-SPEED TRANSMISSION,TS4 PD7677-T 避震器本體組 1/10 TOURING SHOCD BODY For No.6724 No.6725 TS4n SPARE PARTS LIST 共用零件表 SET SCREW(20),M3x6 無頭內六角螺絲組,M3x6... -
Page 30: Ts4N Plus Spare Parts List 專用零件表
PD7664-T UPPER DECK , TI,TS-4N 二樓板組 兩段變速後軸 PD0919 傳動軸組 CARBON FRONT SHOCK T 前避震器支架零件包 PD7667 2SPEED DRIVE SHAFT,FRONT PD0920 CARBON REAR SHOCK TO 1/10 TOURING SHOCK,TS4N 避震器套件組 後避震器支架零件包 PD7671-T PD0990 兩段變速組 2-SPEED ONE-WAY BEAR 兩段變速單向座 PD7675 2-SPEED TRANSMISSION,TS4 PD0991 避震器本體組... -
Page 31: Ts4N Plus / Luxe Option Parts List 改裝共用零件包
For No.6724 No.6725 TS4n OPTION PARTS LIST 改裝共用零件包 PD0907 2.4mm PURPLE PD0852 162T PD0993 1.8mm ORANGE PD0853 177T PD0994 2.0mm RED PD0908 2.2mm, GREEN PD0865 PD0855 PD0854 417T PD0995 2.2mm GREEN PD0909 2.4mm, PURPLE SHOCK BALL JOINT TS-E BBS WHEEL(GRAY),2mm... -
Page 32: Ts4N Plus Option Parts List 改裝專用零件包
For No.6724 No.6725 TS4n OPTION PARTS LIST 改裝共用零件包 (20) (20) PD7699 26mm PD8294 PD8295 PD9134 PD9249 PD7700 30mm BODY ACCESSORIES,R35 R35 MIRROR SET,6576 SLICK TIRE W/FOAM,26mm SLICK DRIFT TIRE,TAED 10-SPOKE SPORT WHL R35 車殼配件組 R35 後視鏡組 光頭胎26mm 光頭甩尾胎, 26mm 1/10 10爪輪轂... -
Page 33: Ts4N Plus / Luxe Option Parts List 改裝共用零件表
1/10 脈沖甩尾胎,26mm PD1059 2-SPEED CLUTCH BELL 兩段變速離合器 PD7646 30MMPULSE DRIFT TIRE,TS4 1/10 脈沖甩尾胎,30mm ALUMINUM WHEEL HEX A PD1061 六角輪轂轉換器(改) PD7647 26MMFOAM TIRE,TS4N 1/10 高速海綿胎組,26mm PD1133 1/10 OZ Wheel(W),26mm PD7648 30MMFOAM TIRE,TS-4N 輪榖(白),26mm 1/10 高速海綿胎組,30mm PD1195 FH SOCKET SCREW,3x5mm 扁圓盤內六角螺絲,M3*5 PD7650 30MMRACING DISH WHEEL,TS 1/10 TT蝶式輪轂,30mm... - Page 34 thundertiger.com JD7553...
