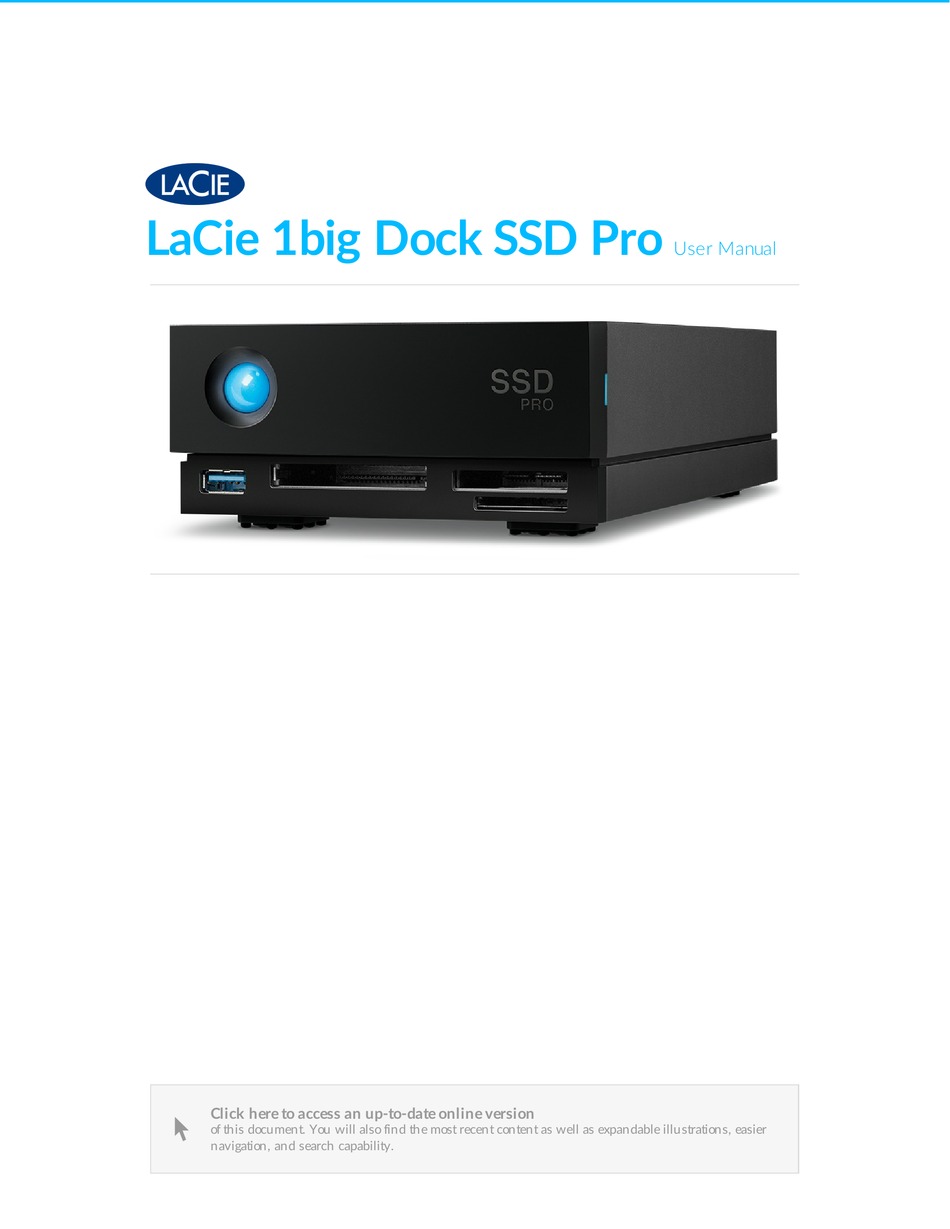

- Page 1 LaCie 1big Dock SSD Pro User Manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
-
Page 2: Table Of Contents
......................... . Set up LaCie 1big Dock SSD Pro . - Page 3 Po wer pass-thro ugh 10 Safely Remove LaCie 1big Dock SSD Pro From Your Computer ...................
- Page 4 ........................Ho w to cho o se the file system fo rmat .
-
Page 5: Box Content
™ ™ LaCie 1big Dock SSD Pro is a Thunderbolt 3 storage hub featuring accelerated NVMe SSD speeds of up to 2800MB/s, cinema-grade card slots, and a DisplayPort 1.4 output for pro 4K monitors. Equipped with a professional NVMe SSD and self-cooling design, 1big Dock SSD Pro is where long-term reliability meets optimized performance. -
Page 6: System Overview
3. CFast 2.0 slot—Read CFast 2.0 memory cards. See Docking Features. 4. Secure Digital (SDXC) slot—Read SD memory cards. See Docking Features. 5. CFexpress slot—Read CFexpress memory cards. See Docking Features. Rear panel view LaCie 1big Do ck SSD Pro 4/1/20... -
Page 7: Dimensions
5. Manual shutdown button—Press and hold this button for more than 4 seconds to cut power and shut down 1big Dock SSD Pro. This button allows you to conserve power without having to unplug 1big Dock SSD Pro. See Operation. -
Page 8: Weight
Weight (lb/kg) 1big Dock SSD Pro 2.866lb/1.3kg Electrical Power adapter 20V@5.5A Use only the power supply provided with your device. Power supplies from other LaCie, Seagate, and third-party devices can damage your 1big Dock. Temperature ranges Ambient environment Temperature range Standard (operating) 5 to 35 °C... -
Page 9: System Leds
LaCie 1big Dock SSD Pro LEDs provide information on the system status. LED loca ons 1. Front—System status 2. Side—Drive status LED behavior The list of colors below helps you identify the general status of LaCie 1big Dock SSD Pro. Color State Solid blue Ready... -
Page 10: Cables
Use the Thunderbolt 3 cable to connect 1big Dock's host port to a Thunderbolt 3 port on your computer. 1big Dock SSD Pro Computer 1big Dock SSD Pro only supports connections to a computer's Thunderbolt 3 port. The drive is not available when connected to a USB port. -
Page 11: Getting Started
Ge ng Started Connect power cable Connect to computer Use the Thunderbolt 3 cable to connect 1big Dock SSD Pro's host port to your computer's Thunderbolt 3 port. Important—Your computer must be connected to 1big Dock SSD Pro's host port to power on and access the drive. -
Page 12: Set Up Lacie 1Big Dock Ssd Pro
Set up LaCie 1big Dock SSD Pro The setup process lets you: Register LaCie 1big Dock SSD Pro Get the most from your drive with easy access to information and support. Install Toolkit Manage Sync Plus plans, automate imports from memory cards, control LED settings, and more. -
Page 13: Register Your Device
Start Using a file manager such as Finder or File Explorer, open LaCie 1big Dock SSD Pro and launch Here Mac Start Here Win. Register your device Register. Enter your information and click Download Toolkit LaCie 1big Do ck SSD Pro... -
Page 14: Install Toolkit
Click on the file to launch the application. Your computer must be connected to the internet to install and run Toolkit. For details on Toolkit features, see the LaCie Toolkit user manual. Storage format LaCie 1big Do ck SSD Pro 4/1/20... -
Page 15: Disconnecting The Drive
1big Dock SSD Pro is preformatted exFAT for compatibility with both Windows and Mac computers. If you use the drive with only one type of computer, you can optimize file copy performance by formatting it in the native file system for your operating system. See Optional Formatting and Partitioning for details. -
Page 16: Operation
3. Disconnect the device from your computer. Long push You can cut power and shut down 1big Dock SSD Pro, allowing you to conserve power without having to unplug the device. Press and hold the Manual shutdown button for more than four seconds to manually shut off 1big Dock SSD Pro. -
Page 17: Rem Oving The Thunderbolt Cable During Operation
Quiet opera on and heat management ® To reduce noise during operation, 1big Dock SSD Pro uses a Noctua cooling fan to pull heat away from the internal components. The cooling fan is temperature controlled, which guarantees optimal heat management by adjusting the rotational speed for the environment. -
Page 18: Docking Features
Docking Features LaCie 1big Dock SSD Pro provides you with convenient means of managing your digital content. Insert SD, CFast 2.0, and CFexpress cards to transfer files for safe storage. Connect smartphones, cameras, and other devices to the USB 3.0 hub to access content. -
Page 19: Windows
‘click’), and then release. The card is now locked in the slot. 3. Open a Finder or File Explorer window to browse and manage the contents of the SD card. Safely ejec ng and removing an SD memory card Toolkit LaCie 1big Do ck SSD Pro 4/1/20... -
Page 20: Macos
1. Hold your CFast 2.0 memory card upright with the label on top. 2. Insert the card into the CFast 2.0 slot on the front of the device and gently push it in until it’s seated in the slot. LaCie 1big Do ck SSD Pro 4/1/20... -
Page 21: Safely Ejecting And Remo Ving A Cfast 2.0 Memo Ry Card
2. In the list of devices, choose the CFast 2.0 card volume you want to eject. Windows displays a notification when it is safe to remove the device. 3. Remove the card from the slot. CFexpress memory card reader Reading a CFexpress memory card LaCie 1big Do ck SSD Pro 4/1/20... -
Page 22: Reading A Cfexpress Memory Card
3. Open a Finder or File Explorer window to browse and manage the contents of the CFexpress card. Important—LaCie 1big Dock SSD Pro supports CFexpress but not XQD media card format. Safely ejec ng and removing a CFexpress memory card Toolkit (macOS only) 1. - Page 23 Safely Remove Hardware icon, click the Show hidden icons arrow in the system tray to display all icons in the notification area. 4. In the list of devices, choose LaCie 1big Dock SSD Pro to eject. Windows displays a notification when it is safe to disconnect the device.
-
Page 24: Expansion Port
DP 1.4 supports up to two 4K displays or one 5K display. LaCie 1big Dock SSD Pro provides the full performance available to DisplayPort 1.4. However, many computers with Thunderbolt ports do not support DisplayPort 1.4, which limits the outputs to displays. -
Page 25: Daisy Chain, Power Delivery & Power Pass-Through
1big Dock's host Thunderbolt 3 port. How to daisy chain The peripheral Thunderbolt 3 port on 1big Dock SSD Pro can be used to daisy chain compatible Thunderbolt 3 peripherals, such as hard drives and monitors. If you have another Thunderbolt 3 storage device, make certain to connect it to the daisy chain before adding compatible displays or USB 3.1 (USB-C) devices. -
Page 26: Power Pass-Through
Peripheral port 1big Dock must receive power via its power cable in order to deliver power to compatible devices. LaCie is not responsible for devices that experience harm, damage, or malfunction when connected to LaCie 1big Dock. Power pass-through... -
Page 27: Safely Remove Lacie 1Big Dock Ssd Pro From Your Computer
Safely Remove LaCie 1big Dock SSD Pro From Your Computer Always eject a storage device from your computer before physically disconnecting it. Your computer must perform filing and housekeeping operations on the drive before it is removed. If you unplug the drive without using the operating system’s software, your files can become corrupt or damaged. - Page 28 3. In the list of devices, choose the storage device you want to eject. Windows displays a notification when it is safe to remove the device. 4. Disconnect the storage device from the computer. LaCie 1big Do ck SSD Pro 4/1/20...
- Page 29 Op onal Forma ng and Par oning LaCie 1big Dock SSD Pro is preformatted exFAT for compatibility with both Mac and Windows computers. If you use the drive with only one type of computer, you can optimize file copy performance by formatting the drive in the native file system for your operating system.
- Page 30 …you connect the storage device to Mac computers, and you don’t need to allow a Windows computer to read or write to the drive. Do not use APFS if you intend to back up using Time Machine to LaCie 1big Dock SSD Pro, or if your computer is not running macOS 10.13 or later.
- Page 31 3. From the list of storage devices in the middle of the Disk Management window, locate your LaCie device. 4. The partition must be available to format. If it is currently formatted, right click on the partition and then choose Delete.
-
Page 32: Frequently Asked Questions
Check both ends of the cable and make sure they are fully seated in their respective ports. Try safely ejecting LaCie 1big Dock SSD Pro from your computer and then disconnect the cable. Wait 10 seconds and then reconnect 1big Dock to the computer. -
Page 33: Problem: I'm Receiving File Transfer Error Messages
Q: Can I password protect my hard drive? A: Yes, it is possible to protect the hard drive or individual folders and files with a password. There are many third-party solutions for password protection. However, LaCie cannot guarantee them since we do not test third-party applications. -
Page 34: Windows
If you're uncertain that your drive is listed, safely unplug it and then reconnect it. The entry that changes is your LaCie hard drive. Q: Is your drive listed next to an unusual icon? A: Windows Device Manager usually provides information about failures with peripherals. -
Page 35: Regulatory Compliance
Regulatory Compliance Product Name LaCie 1big Dock SSD Pro Regulatory Model Number LRDMU05 FCC Declara on of Conformance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 36: Im Portant Note: Fcc Radiation Exposure Statem Ent
Europe – EU Declara on of Conformity This device complies with the essential requirements of the EMC Directive 2004/108/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements LaCie 1big Do ck SSD Pro 4/1/20... - Page 37 Hereby, LaCie, declares that this direct attached storage device is in compliance with the essential requirements and other relevant provisions of Directive 2004/5/EC. Español Por medio de la presente LaCie declara que el direct attached storage device cumple con [Spanish] los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2004/5/CE.
-
Page 38: China Rohs
LaCie declara que este direct attached storage device está conforme com os requisitos [Portuguese] essenciais e outras disposições da Directiva 2004/104/CE. Slovensko LaCie izjavlja, da je at direct attached storage device v skladu z bistvenimi zahtevami in [Slovenian] ostalimi relevantnimi določili direktive 2004/104/ES. Slovensky LaCie týmto vyhlasuje, že direct attached storage device spĺňa základné... -
Page 39: Taiwan Rohs
Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence” requirements. 台灣RoHS是指台灣標準局計量檢驗局(BSMI)對標準CNS15663要求的減排電子電氣設備限用化學物質指引。從2018 年1月1日起，Seagate產品必須符合CNS15663第5節「含有標示」要求。本產品符合台灣RoHS。 下表符合第5節 「含有標示」要求。 LaCie 1big Do ck SSD Pro 4/1/20... - Page 40 LaCie 1big Do ck SSD Pro 4/1/20...
