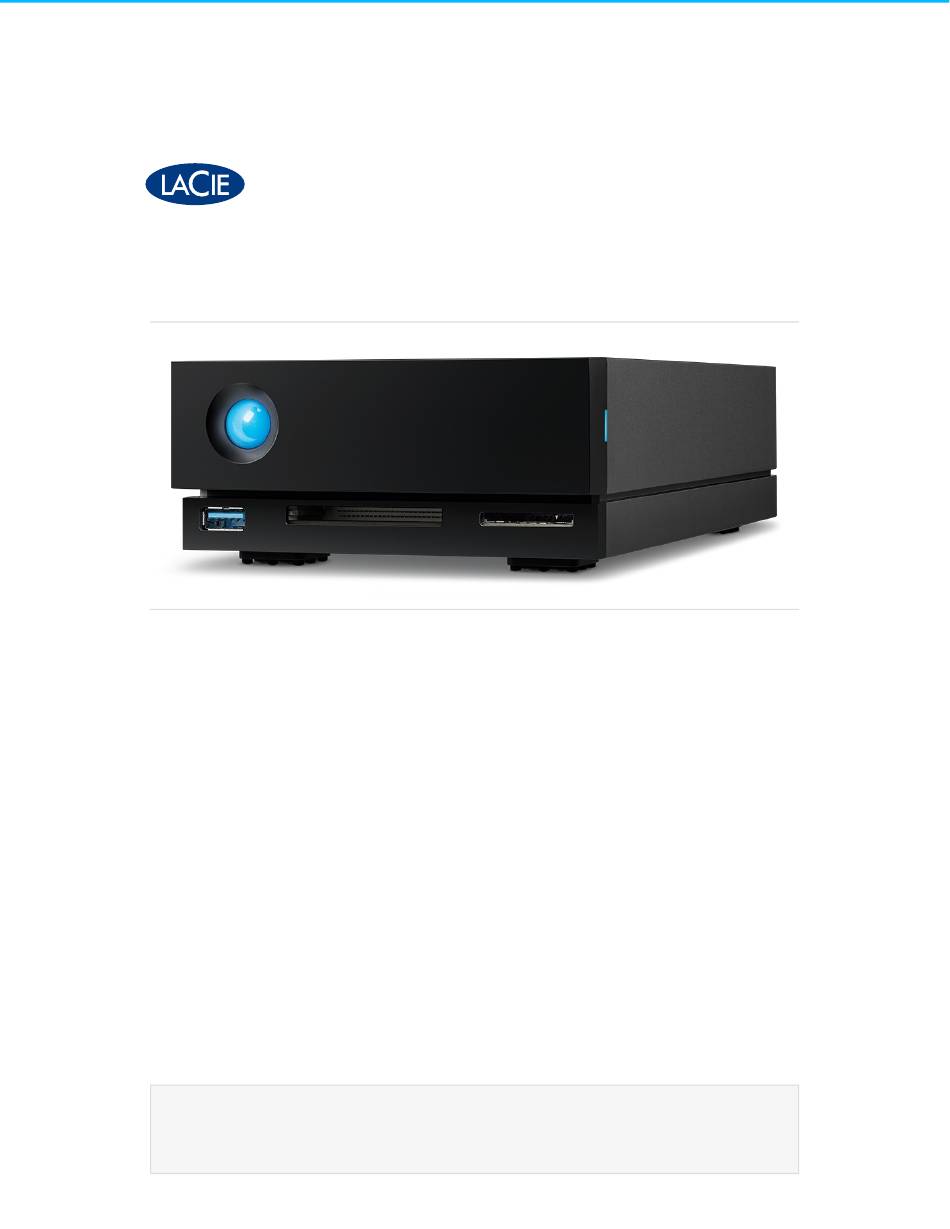

- Page 1 LaCie 1big Dock User Manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
-
Page 2: Table Of Contents
......................... . Set up LaCie 1big Dock . - Page 3 ......................... . Power on .
- Page 4 ......................... . LaCie 1big Dock enclosure: non-serviceable com ponents 14 Frequently Asked Questions .
-
Page 6: Box Content
™ The LaCie 1big Dock is a Thunderbolt 3 storage hub that lets you ingest files directly through built-in CF and SD card slots, connect two 4K displays, daisy chain devices, and charge your laptop with up to 80W of power—all through a single cable. - Page 7 LaCie 1big Do ck 9/13/22...
-
Page 8: System Overview
4. Secure Digital (SDXC) Slot — Use this slot to read SD memory cards. See Docking Features. 5. Swappable hard drive tray — Hard drive tray can be removed to replace a failed hard drive. See Hard Drive Maintenance. Rear panel view LaCie 1big Do ck 9/13/22... -
Page 9: Dimensions
1. Power input — Use this port to connect the power cable. Only use the power cable included with your LaCie 1big Dock. Attaching third-party or other LaCie power cables with incorrect voltage can damage the device. See Operation. 2. Host port — Thunderbolt 3 port that connects to a Thunderbolt 3 or USB 3.1 port on the host computer. -
Page 10: Electrical
Weight (lb/kg) 1big Dock with drive 3.748 lb/1.7 kg Electrical Power adapter 20V@5.5A Use only the power supply provided with your device. Power supplies from other LaCie, Seagate, and third-party devices can damage your 1big Dock. Temperature ranges Ambient environment... -
Page 11: System Leds
LaCie 1big Dock LEDs provide information on the system status. LED loca ons 1. Front—System status 2. Side—Hard drive status LED behavior The list of colors below helps you identify the general status of your LaCie 2big Dock. Color State Solid blue Ready... - Page 12 Technical note regarding power-saving mode and Windows: The device can be placed into power-saving mode on PCs. However, it is possible that the LED will remain off rather than flash blue every 10 seconds. LaCie 1big Do ck 9/13/22...
-
Page 13: Cables
Your 1big Dock is shipped with two cables for compatibility with modern computers. Thunderbolt 3 cable For optimal transfer rates, use the Thunderbolt 3 cable to connect 1big Dock's host port to a Thunderbolt 3 or USB 3.1 port on your computer. 1big Dock Computer LaCie 1big Do ck 9/13/22... - Page 14 1big Dock Computer LaCie 1big Do ck 9/13/22...
-
Page 15: Getting Started
To maximize performance, use the Thunderbolt 3 cable to connect 1big Dock's host port to your computer's Thunderbolt 3 or USB‑C 3.1 port. Important—Your computer must be connected to 1big Dock's host port to power on and access 1big Dock. LaCie 1big Do ck 9/13/22... -
Page 16: Set Up Lacie 1Big Dock
Set up LaCie 1big Dock The setup process lets you: Register LaCie 1big Dock Get the most from your drive with easy access to information and support. Install Toolkit Manage Sync Plus plans and more. Your computer must be connected to the internet to register your device and install Toolkit. -
Page 17: Register Your Device
Start Here Using a file manager such as Finder or File Explorer, open LaCie 1big Dock and launch Start Here Win. Register your device Register. Enter your information and click Download Toolkit LaCie 1big Do ck 9/13/22... -
Page 18: Install Toolkit
Click on the file to launch the application. Your computer must be connected to the internet to install and run Toolkit. For details on Toolkit features, see the LaCie Toolkit user manual. Storage format LaCie 1big Do ck 9/13/22... -
Page 19: Disconnecting The Drive
LaCie 1big Dock is preformatted exFAT for compatibility with both Windows and Mac computers. If you use the drive with only one type of computer, you can optimize file copy performance by formatting it in the native file system for your operating system. See Optional Formatting and Partitioning for details. -
Page 20: Power On
Connected to a computer that supports Thunderbolt 3 or USB. Plugged into a live power outlet. The LEDs blink blue while the disk spins up. Caution: Do not operate LaCie 1big Dock until the ambient temperature is within the specified temperature range. See System Overview. -
Page 21: Power-Saving Mode: Daisy Chain
The host computer placed the product into Access the device’s volume on the host computer. power-saving mode due to inactivity. For example, copy files to its volume. The computer is in sleep mode. Wake up the computer. LaCie 1big Do ck 9/13/22... -
Page 22: Receiving Power
Removing the cable connecting 1big Dock to your computer during operation can result in lost data. Safely eject 1big Dock's volumes before disconnecting the device. See Safely Remove Device From Your Computer. Quiet opera on and heat management ® LaCie 1big Do ck 9/13/22... - Page 23 Additionally, the enclosure's metal casing dissipates heat from the hard drive, keeping it safe and prolonging its life. Since LaCie's unique design draws heat away from the internal hard drive, the external casing may be warm to the touch after extended use.
-
Page 24: Docking Features
Docking Features LaCie 1big Dock provides you with convenient means of managing your creative digital content. Insert SD and CompactFlash cards to transfer files for safe storage. Connect smartphones, cameras, and other devices to the USB 3.0 hub to access content. -
Page 25: Compactflash (Cf) Revision 6.0 Type I (Udma 7) Memory Card Reader
2. Insert the card into the CF slot on the front of the device and gently push it in until it’s seated in the slot. 3. Open a Finder or File Explorer window to browse and manage the contents of the CF card. Removing a CF memory card Ejec ng using macOS or Windows LaCie 1big Do ck 9/13/22... -
Page 26: Usb 3.2 Gen 2Hub
1. Hold the Type A end of the cable upright. 2. Insert the cable end into the hub port on the front of the device. 3. Open a Finder or File Explorer window to browse and manage the contents of the device. LaCie 1big Do ck 9/13/22... -
Page 27: Disco Nnecting A Device Fro M The Hub Po Rt
2. In the list of devices, choose the storage device you want to eject. Windows displays a notification when it is safe to remove the device. 3. Remove the Type A end of the cable from the port. LaCie 1big Do ck 9/13/22... -
Page 28: Expansion Port
DP 1.4 supports up to two 4K displays or one 5K display. LaCie 1big Dock provides the full performance available to DisplayPort 1.4. However, many computers with Thunderbolt and USB host ports do not support DisplayPort 1.4, which limits the outputs to displays. -
Page 29: Daisy Chain, Power Delivery & Power Pass-Through
2. LaCie 1big Dock (connected to computer via host Thunderbolt 3 port). 3. LaCie d2 Thunderbolt 3 (connected to 1big Dock's peripheral Thunderbolt 3 port). 4. Second LaCie d2 Thunderbolt 3 (connected to first d2 via Thunderbolt 3 port). 5. LaCie Rugged SSD (connected to second d2 via Thunderbolt 3 port). -
Page 30: Power Delivery
Part number (P/N) Host port Peripheral port P/N ending in 500 P/N ending in 501 Device connected to peripheral port Part number (P/N) Host port Peripheral port P/N ending in 500 30 W P/N ending in 501 LaCie 1big Do ck 9/13/22... -
Page 31: Power Pass-Through
1big Dock must receive power via its power cable in order to deliver power to compatible devices. LaCie is not responsible for devices that experience harm, damage, or malfunction when connected to LaCie 1big Dock. Power pass-through With power pass-through, you can attach a laptop's USB-C power supply to 1big Dock's peripheral Thunderbolt 3 port and let 1big Dock 'pass' power to the laptop. -
Page 32: Works With Ipad Usb-C
Works with iPad USB-C Your LaCie storage devices can be used with higher-end iPads. This is a great option for moving files between computers, cloud services and external storage. The iPad is also a perfect mobile editing station for importing media to more advanced imaging and video apps. -
Page 33: Safely Remove Device From Your Computer
1. Select the desktop icon for your device and drag it to the Trash. 2. When the device icon is no longer visible on your desktop, you can physically disconnect the device from your Mac. LaCie 1big Do ck 9/13/22... - Page 34 LaCie 1big Do ck 9/13/22...
-
Page 35: Optional Formatting
Mac OS Extended (also known as Heirarchical File System Plus or HFS+) is an Apple file system used since 1998 for mechanical and hybrid internal drives. macOS Sierra (version 10.12) and earlier use HFS+ by LaCie 1big Do ck 9/13/22... -
Page 36: Learn More
Android mobile devices. Learn more For additional considerations when choosing a file system format, see File System Format Comparisions. Forma ng instruc ons For instructions on formatting your drive, see How to format your drive. LaCie 1big Do ck 9/13/22... -
Page 37: Hard Drive Maintenance
1big Dock. Click here for a list of model numbers that are compatible with LaCie Direct Attached Storage devices in the big family. 1. Locate the hard drive you want to replace and place your index finger on the small hole on the right side of its disk tray. - Page 38 3. If you are replacing a failed hard drive with a full disk tray, skip to Step 4. Continue here if you are replacing the hard drive using the same disk tray. A. Using a Phillips head screwdriver, carefully unfasten all four screws from their four slots. LaCie 1big Do ck 9/13/22...
- Page 39 E. Using a Phillips head screwdriver, carefully fasten all four screws into their four slots. Do not force the screws into the slots. Forcing the screws too tight into the slots can make it difficult to remove them later and strip the screws' teeth. LaCie 1big Do ck 9/13/22...
- Page 40 4. Carefully insert the full disk tray into the empty disk slot. Gently push the disk tray handle until you feel it snap into place. LaCie 1big Dock enclosure: non-serviceable LaCie 1big Do ck 9/13/22...
-
Page 41: Lacie 1Big Dock Enclosure: Non-Serviceable Components
LaCie 1big Dock enclosure: non-serviceable components The components inside the chassis are NOT serviceable at any location outside of LaCie-approved service centers. Removing the cover voids your product’s warranty. Additionally, removing, replacing or changing any part in the enclosure or, performing any action that involves the components in the enclosure, voids the product’s warranty. -
Page 42: Frequently Asked Questions
Frequently Asked Ques ons For help setting up and using your LaCie hard drive, review the frequently asked questions below. For additional support resources, go to LaCie customer support. All users Problem: My file transfers are too slow. Thunderbolt 3/USB... -
Page 43: Problem: I'm Receiving File Transfer Error Messages
Q: Can I password protect my hard drive? A: Yes, it is possible to protect the hard drive or individual folders and files with a password. There are many third-party solutions for password protection. However, LaCie cannot guarantee them since we do not test third-party applications. -
Page 44: Windows
If you're uncertain that your drive is listed, safely unplug it and then reconnect it. The entry that changes is your LaCie hard drive. Q: Is your drive listed next to an unusual icon? A: Windows Device Manager usually provides information about failures with peripherals. -
Page 45: Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Cau on LaCie 1big Do ck 9/13/22... -
Page 46: Im Portant Note: Fcc Radiation Exposure Statem Ent
Europe – EU Declara on of Conformity This device complies with the essential requirements of the EMC Directive 2004/108/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements LaCie 1big Do ck 9/13/22... - Page 47 Hereby, LaCie, declares that this direct attached storage device is in compliance with the essential requirements and other relevant provisions of Directive 2004/5/EC. Español Por medio de la presente LaCie declara que el direct attached storage device cumple con [Spanish] los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2004/5/CE.
-
Page 48: China Rohs
LaCie declara que este direct attached storage device está conforme com os requisitos [Portuguese] essenciais e outras disposições da Directiva 2004/104/CE. Slovensko LaCie izjavlja, da je at direct attached storage device v skladu z bistvenimi zahtevami in [Slovenian] ostalimi relevantnimi določili direktive 2004/104/ES. Slovensky LaCie týmto vyhlasuje, že direct attached storage device spĺňa základné... -
Page 49: Taiwan Rohs
Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence” requirements. 台灣RoHS是指台灣標準局計量檢驗局(BSMI)對標準CNS15663要求的減排電子電氣設備限用化學物質指引。從2018 年1月1日起，Seagate產品必須符合CNS15663第5節「含有標示」要求。本產品符合台灣RoHS。 下表符合第5節 「含有標示」要求。 LaCie 1big Do ck 9/13/22... - Page 50 LaCie 1big Do ck 9/13/22...
