MISUMI IESH-MB208G-R Startup Manual

IESH-MB208G-R
Industrial Unmanaged Gigabit Ethernet Switch

Overview

The IESH-MB208G-R supports Gigabit Ethernet.
The power is a +12 ~ 48 VDC redundant input
design, and is secured with a double protection
mechanism: Power Polarity Reverse Protect and an
Overload Current Fuse. The former tolerates reverse
power wiring while the later secures the system from
overload currents. Each port of IESH-MB208G-R has
2 LED's to show the link status transmission speed
and collision status. It also provides a relay output for
an event alarm. In the event of a power failure, the
built-in LED will activate the alarm to notify
administrators. Engineers can simply verify the
hardware status by checking the LED, and have
troubleshooting easy and quick. IESH-MB208G-R
comes with compact metal housing that rates IP30 to
help against from dusty industrial environments. This
product is intended to be supplied by a Listed DC
power source, rated 12-48 Vdc, 0.45 A minimum or
12-48Vdc, 1.5A minimum and Tma 60 degree C.
Packing List
Before installation, please make sure that you have
received the following:
 1 x IESH-MB208G-R Industrial Ethernet Switch
 2 x Wall Mounting Bracket and Screws
 1 x DIN-rail Mounting Bracket and Screws
 2 x IESH-MB208G-R Startup Manual

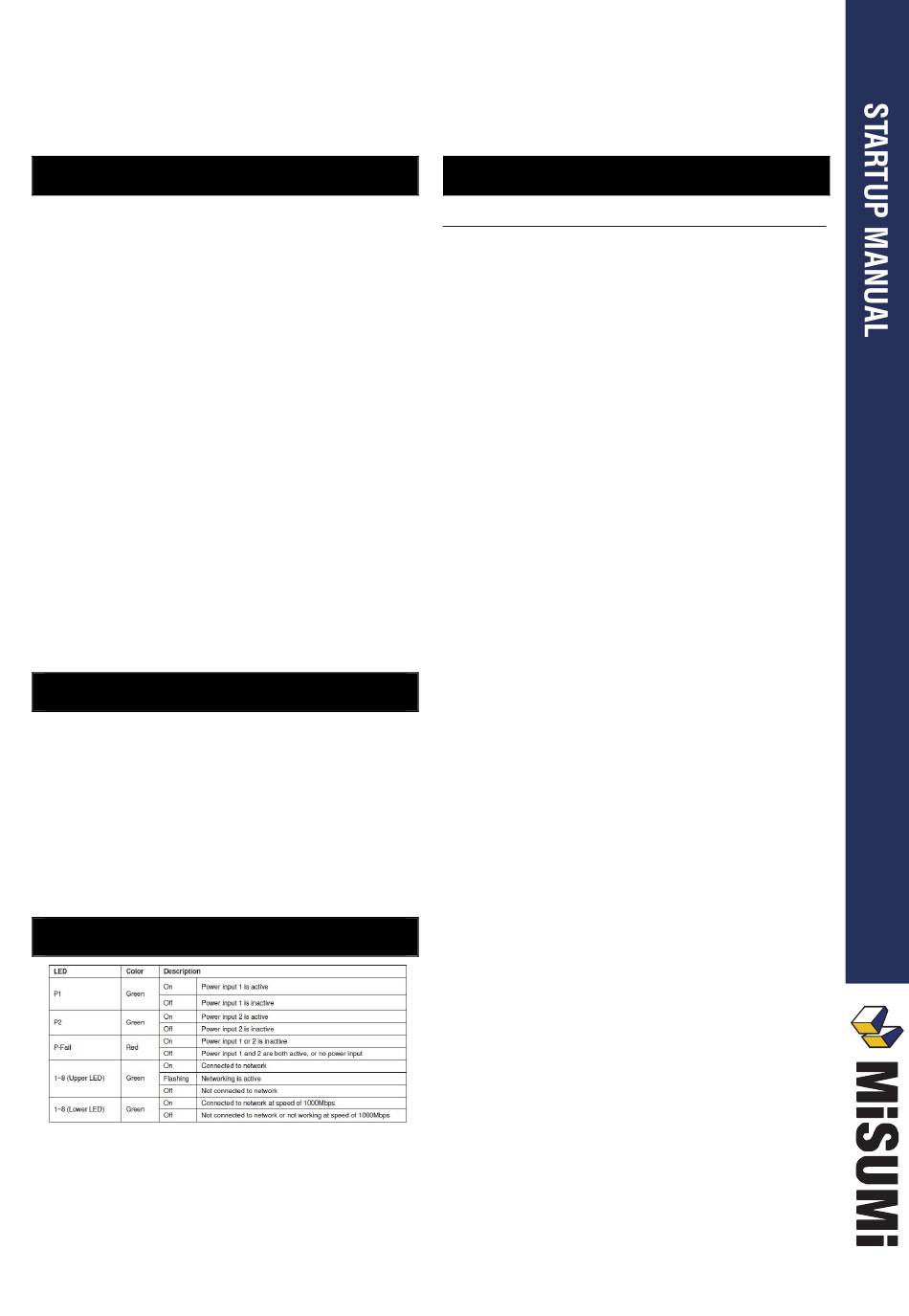

LED definition
1 Startup Manual

Specifications

General
 Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.3ab
 LAN: 10/100/1000Base-T(X)
 TransmissionDistance: Ethernet: Up to 100 m
 Connectors: 8 x 10/100/1000Base-T/TX RJ- 45
ports
 LED Indicators:
P1, P2, P-Fail
10/100/1000T (X): Link/Activity, Duplex/Collision
 Switch Architecture: Store and Forward
 Power Requirement: 12~48V
Input with reverse polarity protection
 Power Consumption: 5.8 Watts
 Dimensions (W x H x D): 30 x 140 x 95mm
 Enclosure: IP30
 OperatingTemperature: -40~75°C (-40~167°F)
 Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
 Operating Humidity: 10 ~ 95% (non-condensing)
 Storage Humidity: 10 ~ 95% (non-condensing)
 Safety: UL60950
 EMC: CE, FCC
, redundant Power
DC
