- Page 1 IESH-MB205*/208*-C2E-R Series Quick Installation Guide IESH-MB205-C2E-R IESH-MB205M-C2E-R IESH-MB208-C2E-R IESH-MB208M-C2E-R Version 1.0, October 2019 P/N: 1802020003020 *1802020003020*...
-
Page 2: Package Checklist
IESH-MB205*/208*-C2E-R switches are reliable and easy to use. NOTE Throughout this Quick Installation Guide, we use IESH-MB as an abbreviation for Misumi IESH-MB205*/208*-C2E-R Switch: IESH-MB = Misumi IESH-MB205*/208*-C2E-R Switch ATTENTION This device complies with part 15 of FCC Rules. Operation is... - Page 3 Features High Performance Network Switching Technology • 10/100BaseT(X) auto-negotiation speed, full/half duplex mode, auto MDI/MDI-X connection, and 100BaseFX for fiber port models. • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X). • IEEE 802.1p for Quality of Service (QoS) traffic prioritized function. •...

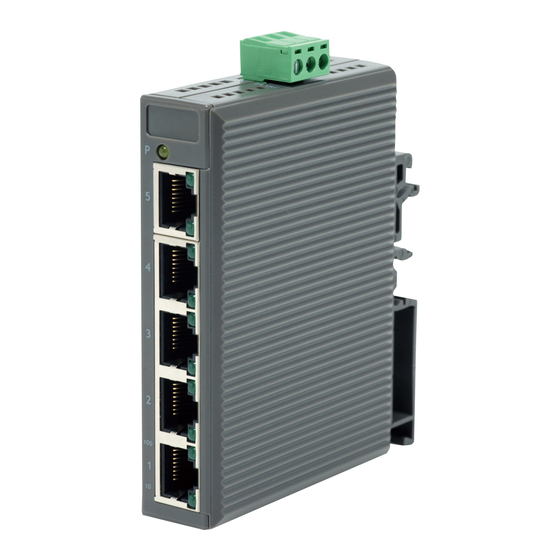

- Page 4 Panel Layout of IESH-MB205M-C2E-R/IESH- MB205-C2E-R 1. Chassis ground screw 2. Terminal block for power input 3. DIP switch 4. Power LED 5. 10/100 BaseT(X) Port 6. 10/100 BaseT(X) Port LED 7. Port number - 4 -...
- Page 5 Panel Layout of IESH-MB208M-C2E-R/IESH- MB208-C2E-R 1. Chassis ground screw 2. Terminal block for power input 3. DIP switch 4. Power LED 5. 10/100 BaseT(X) Port 6. 10/100 BaseT(X) Port LED 7. Port number - 5 -...
-
Page 6: Mounting Dimensions
Mounting Dimensions IESH-MB205M-C2E-R Series IESH-MB205-C2E-R Series - 6 -... - Page 7 IESH-MB208M-C2E-R Series IESH-MB208-C2E-R Series - 7 -...
-
Page 8: Din Rail Mounting
DIN-rail Mounting When shipped, the DIN-rail mounting kit is fixed to the back panel of the IESH-MB. Mount the IESH-MB on the corrosion-free mounting rail that adheres to the EN 60715 standard. Suggested Installation Method STEP 1: Insert the upper lip of the DIN-rail kit into the mounting rail. - Page 9 Tighten the two screws for added stability. Please note wall-mount kit will be sold separately from IESH-MB switch. For ordering information, please check Misumi official website. WARNING External metal parts are hot. Take necessary precautions if it is necessary to touch.
-
Page 10: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless the power supply has been switched off or the area is known to be non- hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage. -
Page 11: Wiring The Power Input
Grounding Misumi IESH-MB Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. A 4 mm conductor must be used when a connection to the external grounding screw is utilized. -
Page 12: Communication Connections
Communication Connections The IESH-MB205*/208*-C2E-R models have 10/100BaseT(X) Ethernet ports and 100BaseFX Ethernet ports. 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the IESH-MB’s front panel are used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables. -
Page 13: Dip Switch Settings
Ethernet port. . (BSP) Disables the broadcast storm protection. LED Indicators The front panel of the Misumi IESH-MB Switch contains several LED indicators. The function of each LED is described in the table below. Color State Description Power is being supplied to power input PWR. -
Page 14: Dual Speed Functionality And Switching
Dual Speed Functionality and Switching The IESH-MB’s 10/100 Mbps RJ45 switch port auto negotiates with the connected device for the fastest data transmission rate supported by both devices. The IESH-MB is a plug-and-play device, so software configuration is not required at installation or during maintenance. The half/full duplex mode for the RJ45 switched ports is user dependent and changes (by auto-negotiation) to full or half duplex, depending on which transmission speed is supported by the attached device. -
Page 15: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100Base FX, IEEE 802.1p for Class of Service Flow Control IEEE 802.3x flow control, back pressure flow control Interface RJ45 Ports 10/100BaseT(X) auto negotiation speed LED Indicators PWR, 10M/100M DIP Switch QoS, Broadcast Storm Protection (BSP) Switch Properties... - Page 16 Regulatory Approvals FCC Part 15B, CISPR 22, 32 (EN 55032) Class A CISPR 35 (EN 55035) EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (EFT) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 - 16 -...
