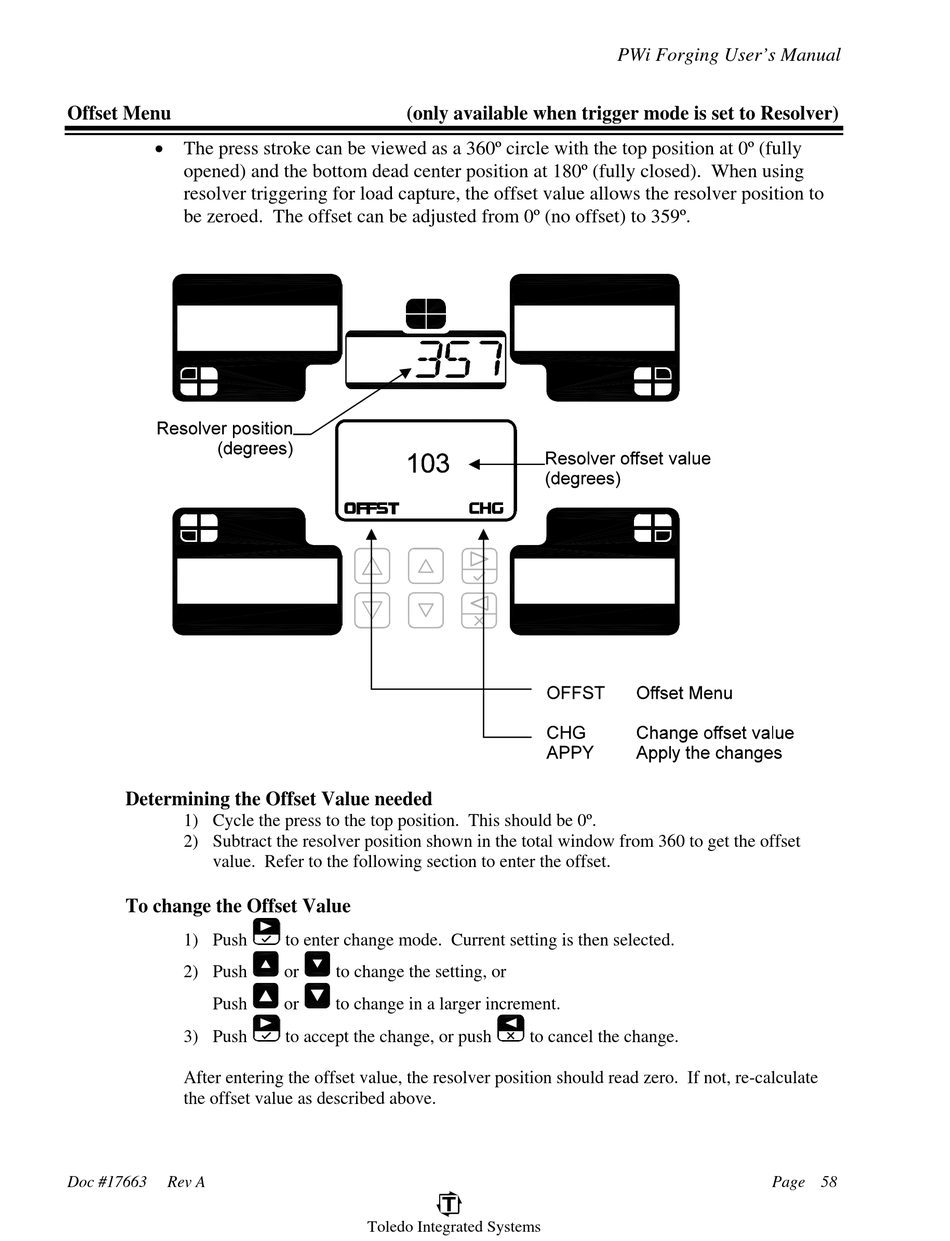

Offset Menu

 The press stroke can be viewed as a 360º circle with the top position at 0º (fully
opened) and the bottom dead center position at 180º (fully closed). When using
resolver triggering for load capture, the offset value allows the resolver position to
be zeroed. The offset can be adjusted from 0º (no offset) to 359º.
Determining the Offset Value needed
1) Cycle the press to the top position. This should be 0º.
2) Subtract the resolver position shown in the total window from 360 to get the offset
value. Refer to the following section to enter the offset.
To change the Offset Value
1) Push
2) Push
Push
3) Push
After entering the offset value, the resolver position should read zero. If not, re-calculate
the offset value as described above.
Doc #17663 Rev A
(only available when trigger mode is set to Resolver)
to enter change mode. Current setting is then selected.
or to change the setting, or
or to change in a larger increment.
to accept the change, or push
Toledo Integrated Systems
PWi Forging User's Manual
to cancel the change.
