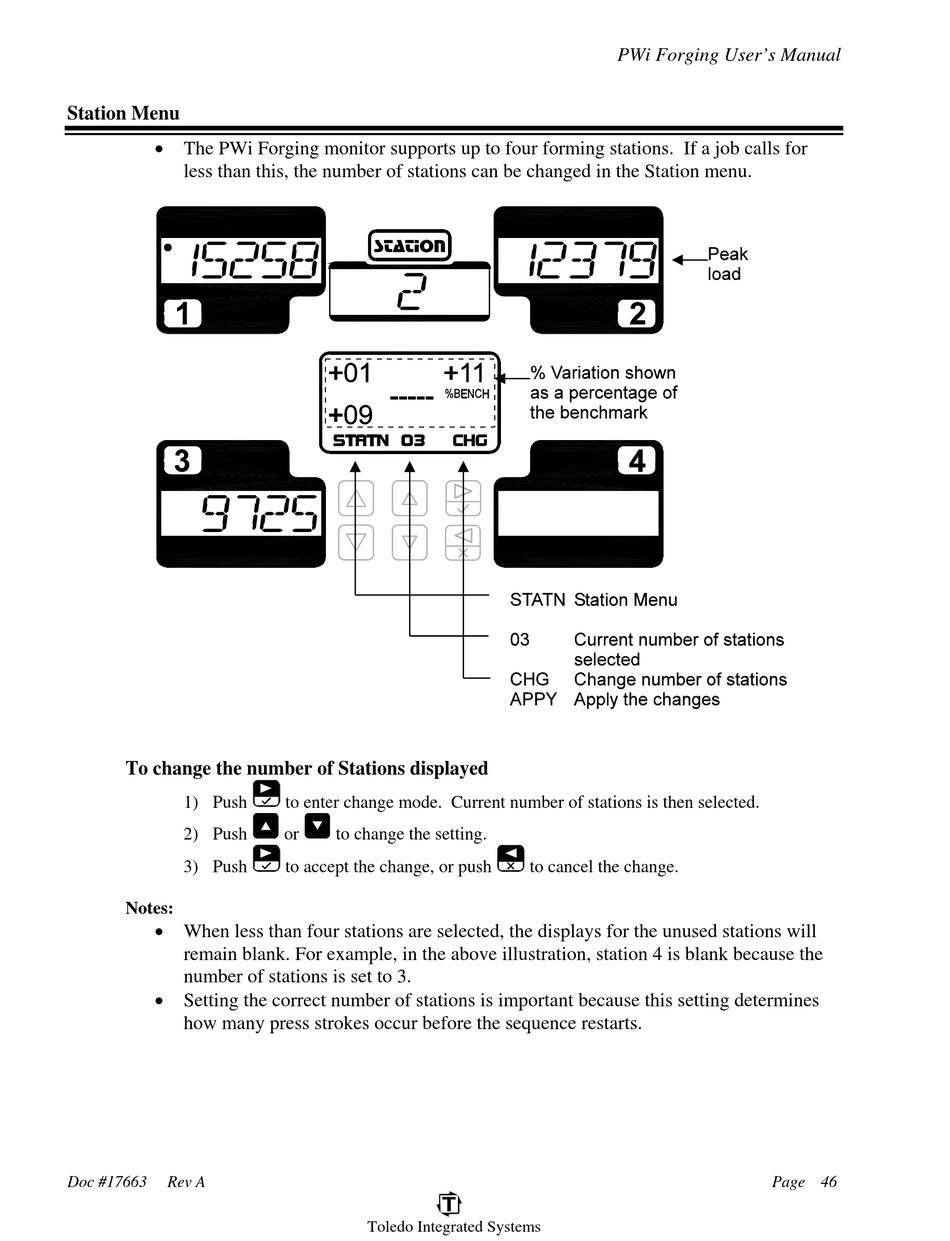

Station Menu

 The PWi Forging monitor supports up to four forming stations. If a job calls for
less than this, the number of stations can be changed in the Station menu.
To change the number of Stations displayed
1) Push
2) Push
3) Push
Notes:
 When less than four stations are selected, the displays for the unused stations will
remain blank. For example, in the above illustration, station 4 is blank because the
number of stations is set to 3.
 Setting the correct number of stations is important because this setting determines
how many press strokes occur before the sequence restarts.
Doc #17663 Rev A
to enter change mode. Current number of stations is then selected.
or to change the setting.
to accept the change, or push
Toledo Integrated Systems
PWi Forging User's Manual
to cancel the change.
