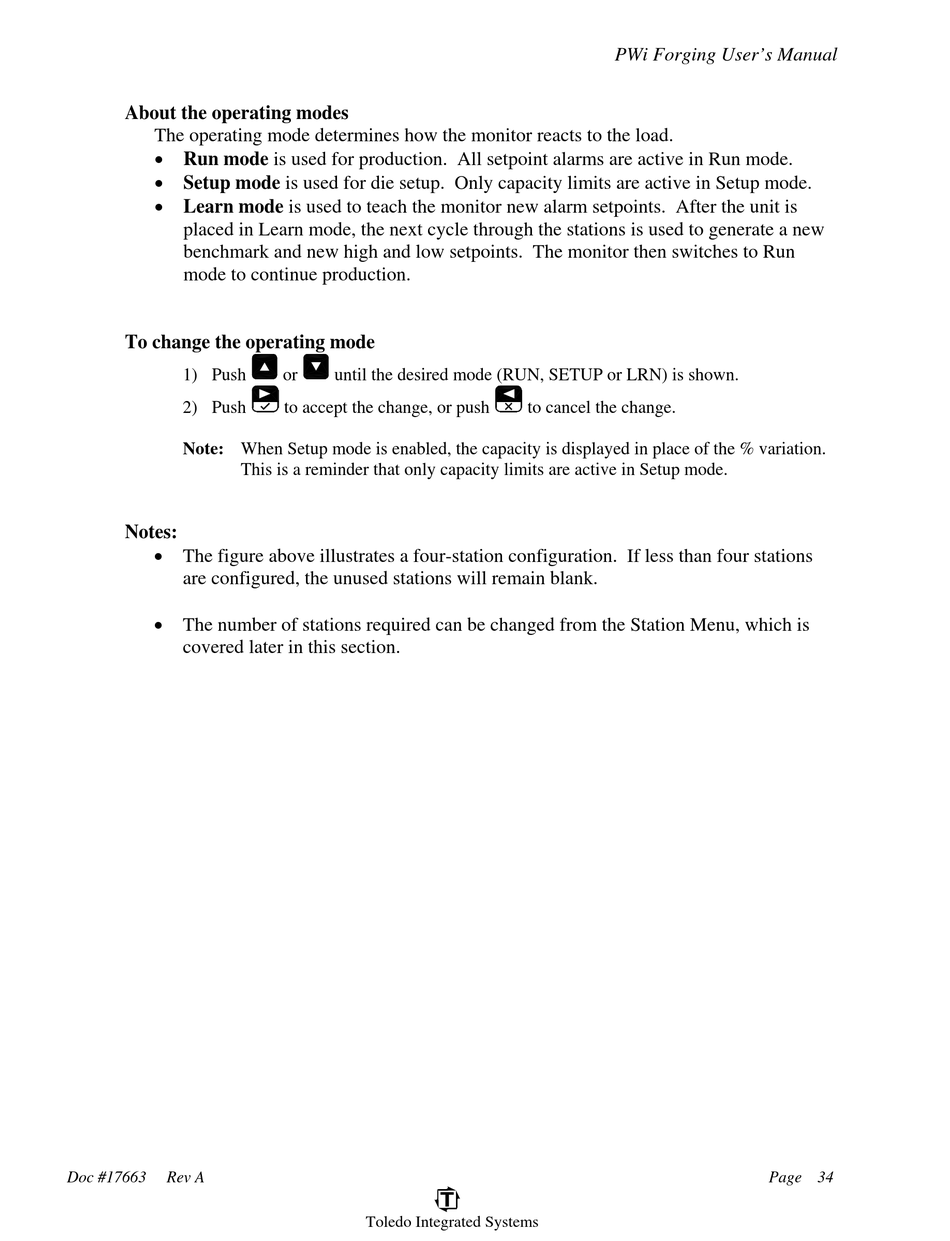

About the operating modes
The operating mode determines how the monitor reacts to the load.
 Run mode is used for production. All setpoint alarms are active in Run mode.
 Setup mode is used for die setup. Only capacity limits are active in Setup mode.
 Learn mode is used to teach the monitor new alarm setpoints. After the unit is
placed in Learn mode, the next cycle through the stations is used to generate a new
benchmark and new high and low setpoints. The monitor then switches to Run
mode to continue production.
To change the operating mode
1) Push
2) Push
Note: When Setup mode is enabled, the capacity is displayed in place of the % variation.
This is a reminder that only capacity limits are active in Setup mode.
Notes:
 The figure above illustrates a four-station configuration. If less than four stations
are configured, the unused stations will remain blank.
 The number of stations required can be changed from the Station Menu, which is
covered later in this section.
Doc #17663 Rev A
or until the desired mode (RUN, SETUP or LRN) is shown.
to accept the change, or push
Toledo Integrated Systems
PWi Forging User's Manual
to cancel the change.
