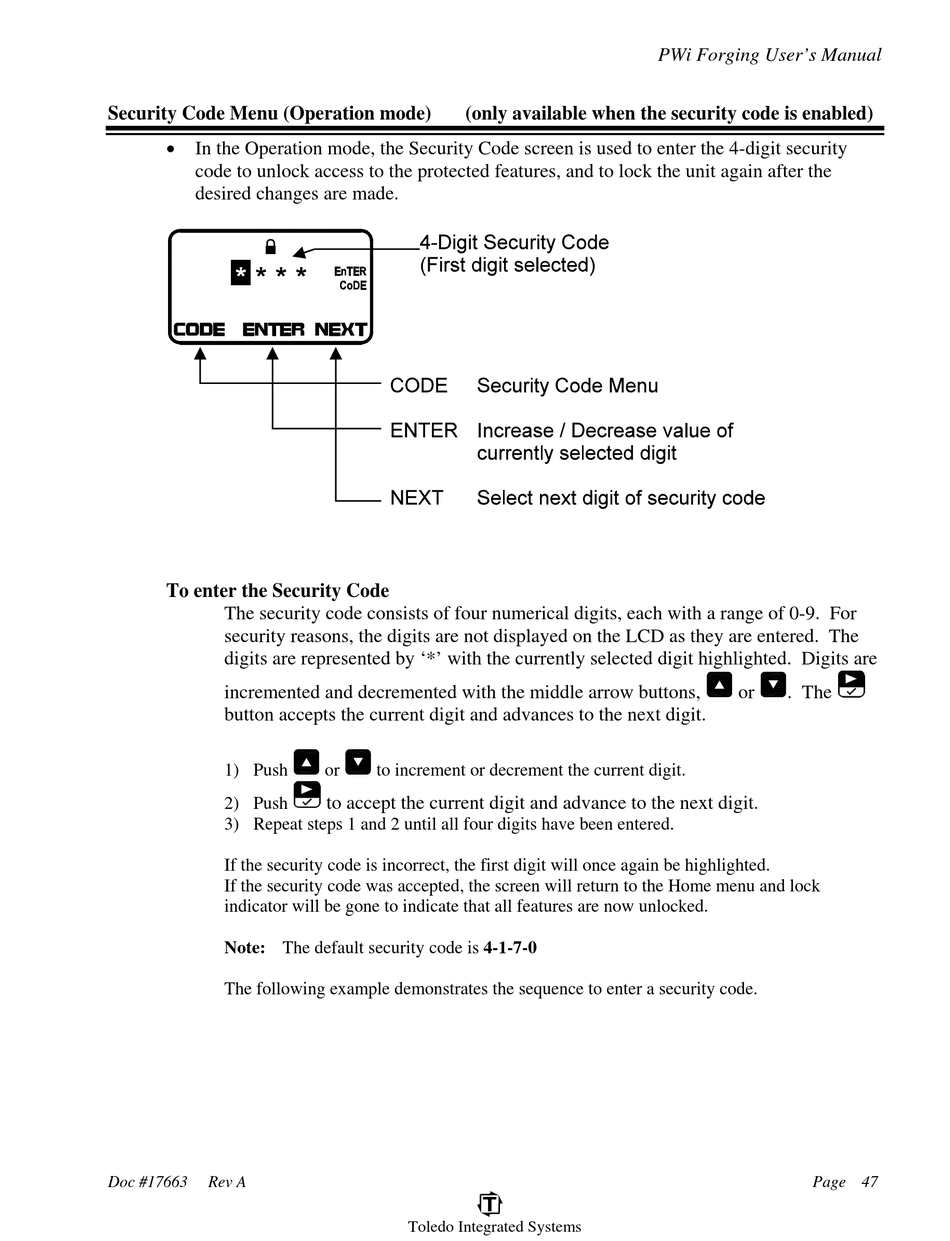

Security Code Menu (Operation mode)

 In the Operation mode, the Security Code screen is used to enter the 4-digit security
code to unlock access to the protected features, and to lock the unit again after the
desired changes are made.
To enter the Security Code
The security code consists of four numerical digits, each with a range of 0-9. For
security reasons, the digits are not displayed on the LCD as they are entered. The
digits are represented by '*' with the currently selected digit highlighted. Digits are
incremented and decremented with the middle arrow buttons,
button accepts the current digit and advances to the next digit.
1) Push
2) Push
3) Repeat steps 1 and 2 until all four digits have been entered.
If the security code is incorrect, the first digit will once again be highlighted.
If the security code was accepted, the screen will return to the Home menu and lock
indicator will be gone to indicate that all features are now unlocked.
Note: The default security code is 4-1-7-0
The following example demonstrates the sequence to enter a security code.
Doc #17663 Rev A
(only available when the security code is enabled)
or to increment or decrement the current digit.
to accept the current digit and advance to the next digit
Toledo Integrated Systems
PWi Forging User's Manual
or . The
.
Page 47
