Masterbuilt 20040712 Assembly, Care & Use Manual page 9

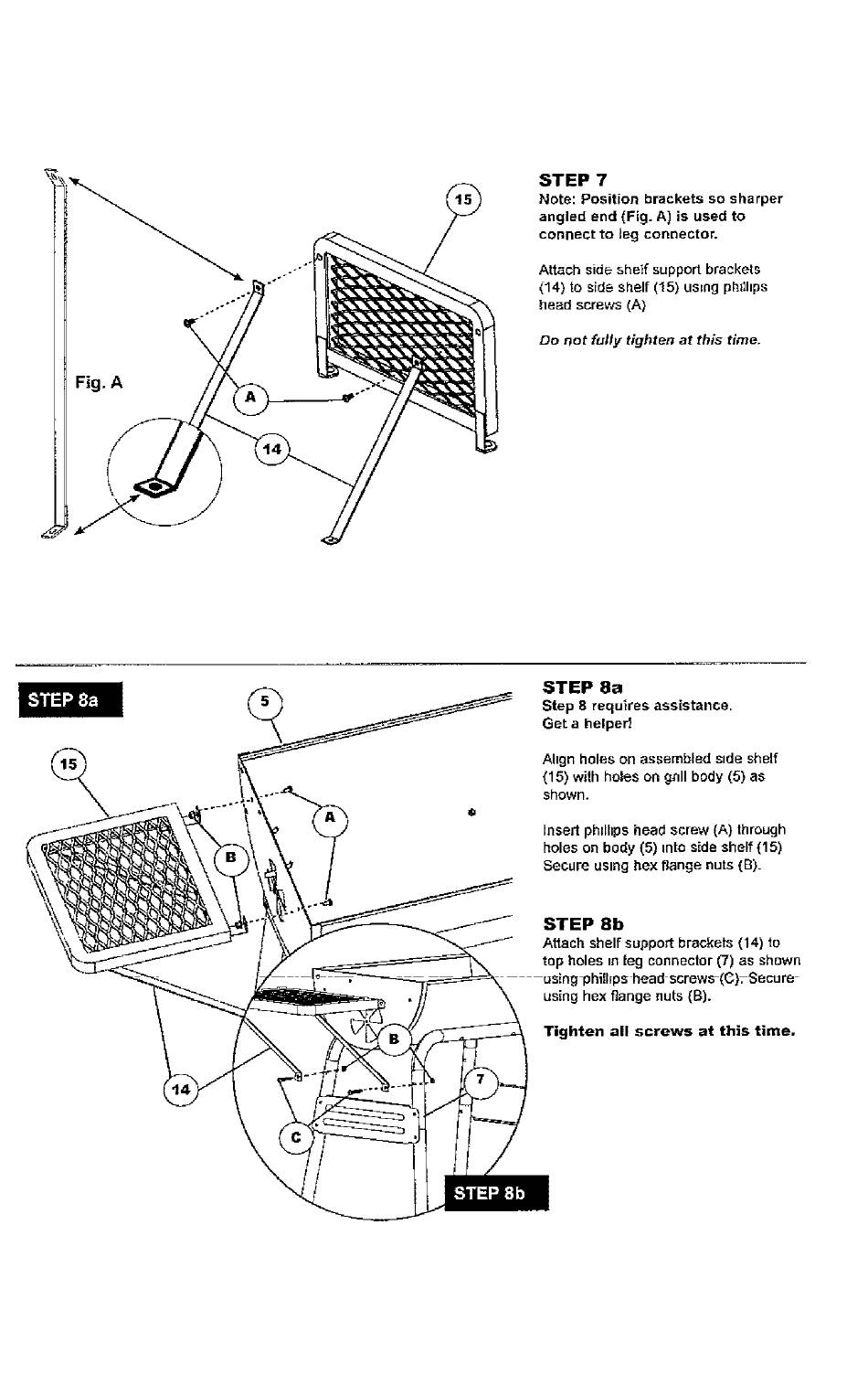

STEP 7
Note: PositiOn brackets so sharper
angled end (Fig. A) is used to
connect to Jag connector.
Attach side she_f suppod brackets
(14) to side shelf (15) using ph_lhps
head screws (A)
Do not fully tighten at this time.
STEP 8a
Step 8 requires ass|stance.
Get a helper'!
Ahgn holes on assembled stde shelf
(15) with holes on grill body (5) as
shown.
Insert phtlhps head screw (A) through
holes on body (5) rote s|de shelf (15)
Secure usmg hex flange nuts (B)_
STEP 8b
Attach shelf support brackets (14) to
tap holes m Ieg connector C7) as shown
using phiflfps head screw_(C). Secure
using hex flange nuts (B).
Tighten all screws at this time.
