Summary of Contents for Bullet RPZ1600

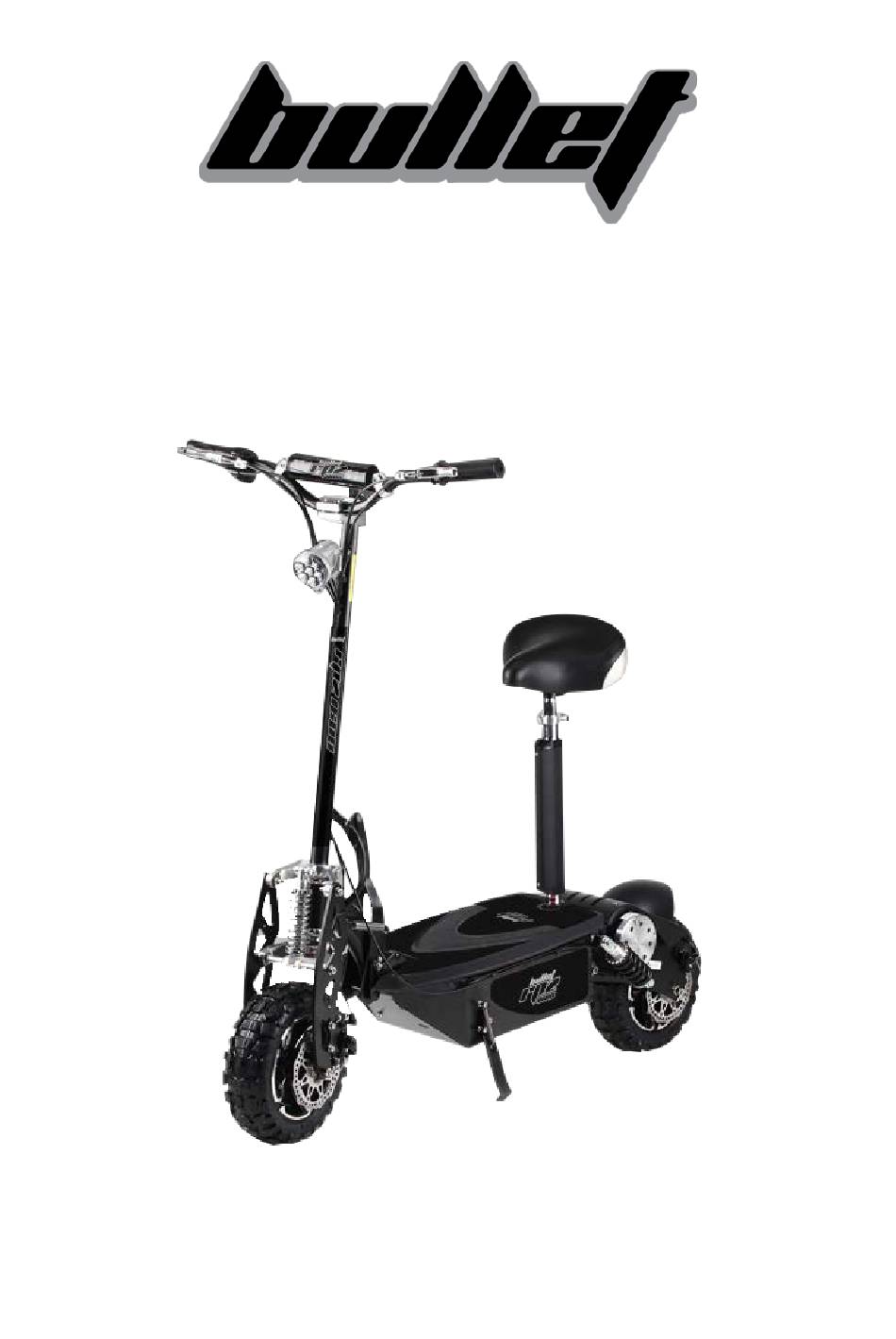

- Page 1 1600W SCOOTER OWNER’S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS……………………………………………………………2 IMPORTANT INFORMATION…………………………………………………..3-4 QUICK REFERENCE………………………………………………………………5 GETTING TO KNOW YOUR SCOOTER………………………………………….6 PACKAGE CONTENTS…………………………………………………………….7 GETTING STARTED………………………………………………………………..7 ASSEMBLY…………………………………………………………………….7-8 FUSE INSTALLATION…………………………………………………………..8 SEAT&SEAT POST INSTALLATION……………………………………………8 CHARGING……………………………………………………………………….9 RIDING/BRAKING……………………………………………………………….9 FOLDING AND STORAGE…………………………………………………………10 BRAKING SYSTEM………………………………………………………………...10 ADJUSTING BRAKES……………………………………………………………...10 TIRE PRESSURE……………………………………………………………………11 MAINTENACE……………………………………………………………………...12 RECOMMENDED TOOLS..................12 ADJUSTING THE HEAD UNIT................12 ADJUSTING THE CHAIN……………………………………………………12-13 MAINTENANCE SCHEDULE……………………………………………………...13 TROUBLESHOOTING GUIDE……………………………………………………..14... - Page 3 PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS! IMPORTANT BATTERY MAINTENANCE and CHARGING INSTRUCTIONS 1. You MUST charge completely prior to initial use. (Follow charging instructions in your Product Handbook) 2. Charge immediately after each use. 3.
- Page 4 This PRODUCT IS NOT INTENDED FOR EXTREME OFF-ROAD Use! Please take care of your Bullet 1000w! DO NOT JUMP or ABUSE THIS PRODUCT! DO NOT RIDE IN WET/ICY CONDITIONS! Failure to follow these instructions will VOID YOUR WARRANTY!
- Page 5 IMPORTANT PLEASE AND THIS BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
-
Page 6: Quick Reference
QUICK REFERENCE SAFETY GUIDE SAFETY GUIDE The recommended minimum age for riding this scooter is 13 years old. To avoid damage to the motor and footplate, do not overload the scooter. Never ride with more than one person. Inspect your scooter thoroughly before each use for loose or missing parts. Avoid unintentional starts by turning the scooter off while not in use. -
Page 7: Getting To Know Your Scooter

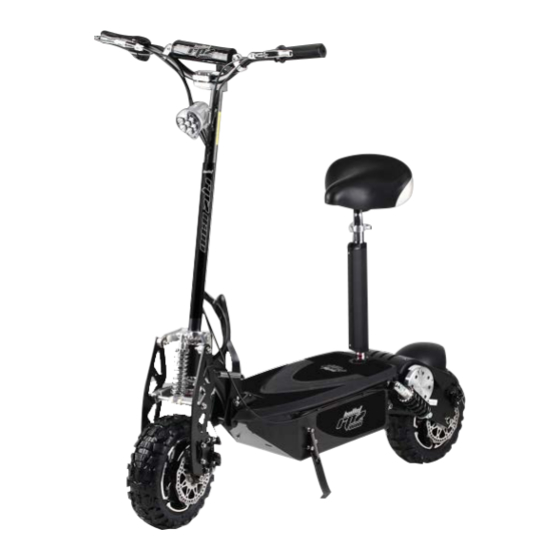

GETTING TO KNOW YOUR SCOOTER Variable speed throttle Optional Seat Kit Included Front & Rear Hand Brakes Rear Brakes Rear Shock Powerful 800 Front Shocks Wait Motor Lock and Fold Design for easy Storage 10”Aluminum Wheels Front Disc Brakes (Photo’s may vary) -
Page 8: Package Contents
4. Seat 5. Seat Post & Clamp Getting started Please read and understand these instructions and the OPERATING PRO CEDURES section, prior to starting or riding your BULLET 1600W Assembly 1. Carefully remove the scooter form the box. Then install the wheels please. - Page 9 5. Secure the hand brakes in place by using the provided Allen Wrench to first loosen the tension bolts. Adjust the levers to a comfortable position and tighten the bolts.*BE CAREFUL NOT TO PULL ON THE CABLES！ Assembly-Continued: Insert the 25 amp fuse by opening the footplate cover as shown.
-
Page 10: Charging
CHARGING Your scooter comes charged out of the carton. We still recommend charging the unit for 6-8 hours prior to its first use. We also recommend charging your scooter after each use and prior to storage. Warning: Do not allow scooter to go into deep discharge, as this will damage the batteries. -
Page 11: Braking System
4. Put one foot on the deck of the BULLET 1000W while pushing off with the other foot, gently rotate the THROTTLE GRIP. On the right side of the handlebars. The BULLET 1000W will begin to move on its own power. - Page 12 wheel spins freely. For brakes that are adjusted too tight: 2.Tighten the tension screw on the right hand brake lever by rotating it clockwise until the wheel has a slight drag. To adjust the front brakes: For brakes that are adjusted too loose: 3.
-
Page 13: Tire Pressure
SQUEAKY BRAKES The brakes may squeak before they are broken in. This is normal and will not affect the function or performance of the brakes. With continued use the squeak should go away. TIRE PRESSURE The tire must be inflated to a maximum of 50.P.S.I.It is also recommended to use a tub e additive like Slime, available from any motorcycle shop, to avoid inconvenient puncture Empty all air from the tire, prior to loosening the bolt to split the rim. -
Page 14: Maintenance Schedule
harmful. If the chain is making a humming sound when the wheel is turning, this is too ti ght and may cause the chain to snap. The correct tension is achieved by adjusting the chain from its loose position to w ... -
Page 15: Circuit Diagram
rge. Unit does not have spe e end of their useful life. 2.Replace Charger Unit cified travel range. 2.charge is malfunctioning Unit moves intermittently or 1. Batteries not fully charge 1. Charge or replace batteri very slow. 2. Loose Wire. 2.Check for loose wires 3. -
Page 16: Technical Parameter
Electric mini quad Technical parameter 1. product size: 120X650X1085mm 2. CTN/size: 1090X325X445mm 3. Electrical motor: Continuous 1000W (1600W Peak) 4. Maximum Speed: 50km/h 5. Weight capacity: 120kg 6. Charging time: 8-10h 7. Wheel distance: 950mm 8. Wheel material: pneaumatic rubber tyre 9. - Page 18 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
Need help?
Do you have a question about the RPZ1600 and is the answer not in the manual?
Questions and answers
Where do you get spare parts from and also the scooter will not turn on.
The context does not specify where to find spare parts for the Bullet RPZ1600 scooter.
Possible reasons it will not turn on include:
1. Batteries not fully charged – charge or replace them.
2. Loose wires – check and secure connections.
3. Bad throttle or controller – may need replacement.
4. Brake switches out of adjustment – adjust by loosening the brakes.
This answer is automatically generated
I can't work out my wiring
I wanted to know how much are batteries for a Razor Bullet 1-6 RPZ1600. I need 4x 12V batteries and cant outsource them anywhere.
