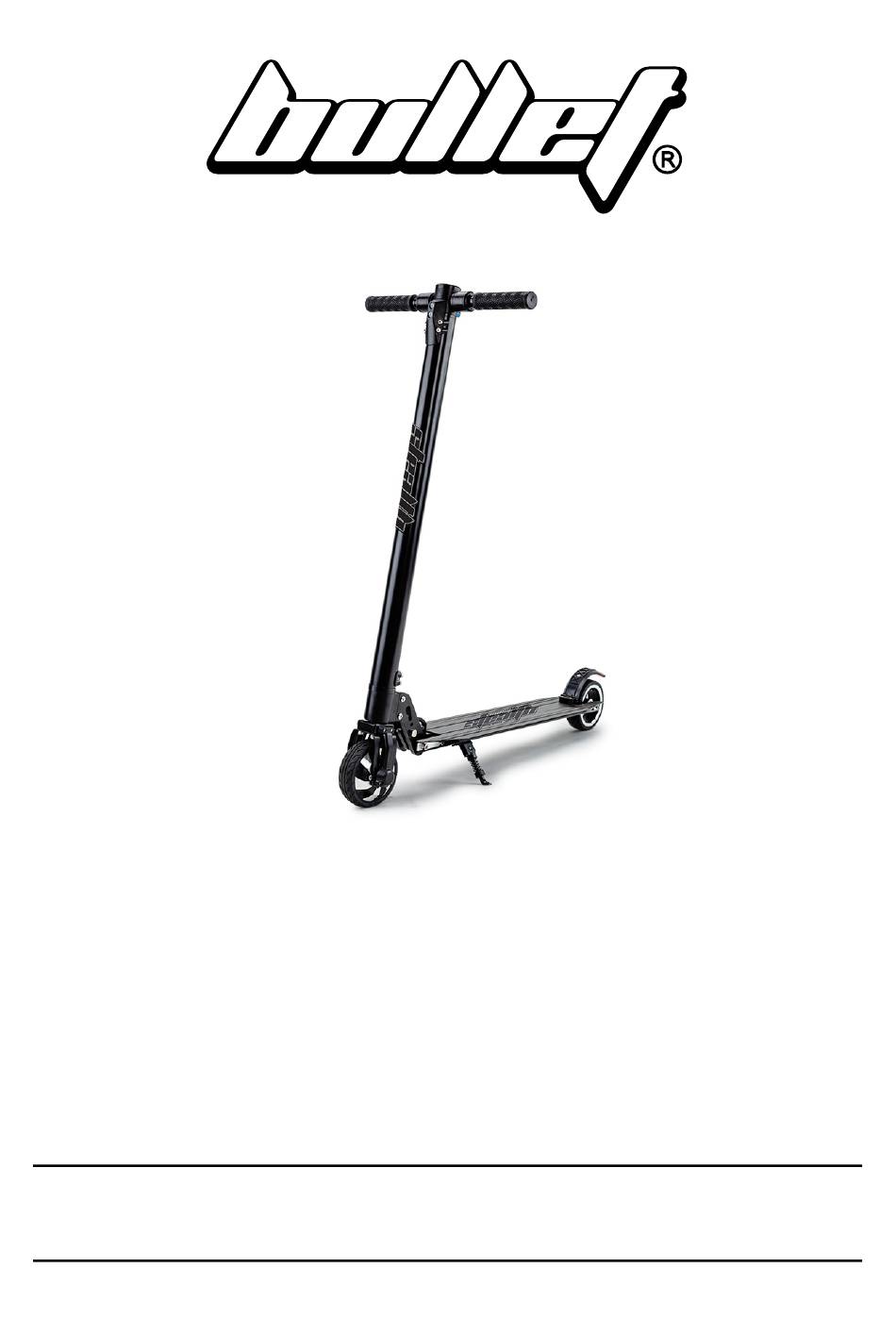

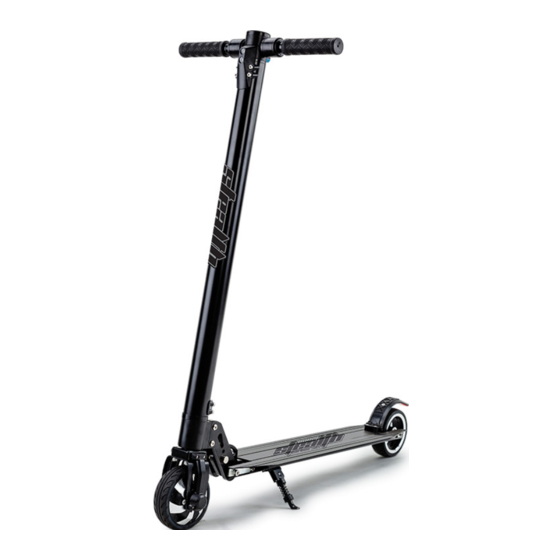

Carbon-Fibre Electric
Scooter
User Manual
[Revision 14.0 March 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY,
PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE.
• Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description
and packaging.
E&OE
©2019 Bullet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bullet Stealth
Summary of Contents for Bullet Stealth
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE ©2019 Bullet...
-
Page 2: Safety
Bumpy, slippery, uneven or rough surfaces may increase risks. − Do not touch the brakes or electric motor when in use and/or immediately after riding as they can become very hot. − Do not ride at night or when visibility is limited. E&OE ©2019 Bullet... - Page 3 Do Not clean or perform any maintenance on the product when it is being charged. FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS INCREASES RISK OF SERIOUS INJURY. USE THE PRODUCT ONLY WITH APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE OPERATION. E&OE ©2019 Bullet...
-
Page 4: Table Of Contents
Controls and Features..........................9 Console Features ............................. 10 Maintenance and Storage ....................... 11 Cleaning and Storage ..........................11 Battery Care and Charging ........................11 Battery Charging ..........................11 Battery Disposal ..........................11 Troubleshooting ..........................12 Specifications ........................... 12 E&OE ©2019 Bullet... -
Page 5: Parts Identification And Assembly
"left-hand" thread, so you must rotate it left (anti-clockwise) to screw it in. Tighten it firmly by hand. 4. Install the left-hand handlebar (4), marked "L", to the "steering head" – rotate it right (clockwise) to screw it in, and tighten firmly by hand. E&OE ©2019 Bullet... - Page 6 5. If necessary, use the screwdriver to remove (rotate left) the 2 console screws (5) located at the top of the "steering head". Place the console (6) in position (it is already connected electrically) on the steering head, then use the screwdriver to tighten (rotate right) the 2 console screws. E&OE ©2019 Bullet...
-
Page 7: Operation
• Monitor battery usage when in use, the scooter may suddenly slow down as the battery charge reduces. Folding Press the folding switch and put down the scooter tube about 90°. After hearing a clicking sound, the scooter is fully folded. E&OE ©2019 Bullet... -
Page 8: Unfolding
Carbon-Fibre Electric Scooter Unfolding Press the folding switch and lift the scooter tube about 90°. After hearing a clicking sound, the scooter is fully unfolded. E&OE ©2019 Bullet... -
Page 9: Controls And Features
Reset Trip Distance Meter – Press and hold to reset trip meter to "zero". Battery Charging Port – Connection point for the battery charger. Rear Brake – Step on mudguard to apply rear brake. Headlight – Safety feature for added visibility. E&OE ©2019 Bullet... -
Page 10: Console Features
Total Mileage Shows the total mileage the rider has travelled so far. Single Mileage Shows the mileage after switching ON the scooter for the first time. Headlight Shows that the headlight is either turned OFF or ON. E&OE ©2019 Bullet... -
Page 11: Maintenance And Storage
• The batteries are Lithium-Ion. They must be recycled or disposed of it in an environmentally responsible manner. • Never dispose of a battery as normal rubbish. • Never burn or dispose of batteries in a fire. E&OE ©2019 Bullet... -
Page 12: Troubleshooting
Display showing speed / "Wheel diameter" and/or "motor Set "wheel diameter" to "02" and "motor RPM that is incorrect poles" incorrectly set. poles" to "04". Specifications Battery Type Lithium-Ion Charging Time Approximately 4 hours Maximum Load 100kg (rider weight) E&OE ©2019 Bullet... - Page 13 ©2019 Bullet. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
Need help?
Do you have a question about the Stealth and is the answer not in the manual?
Questions and answers
The scooter is only 4 months old and the chain keeps coming off. I have taken the slack out of the chain and rode ot for 10 minutes and it still came off.
The chain on the Bullet Stealth scooter could be coming off because the wheel has moved, which can misalign the chain. Another possible reason is that the chain tension is incorrect, and fixing it would require tools.
