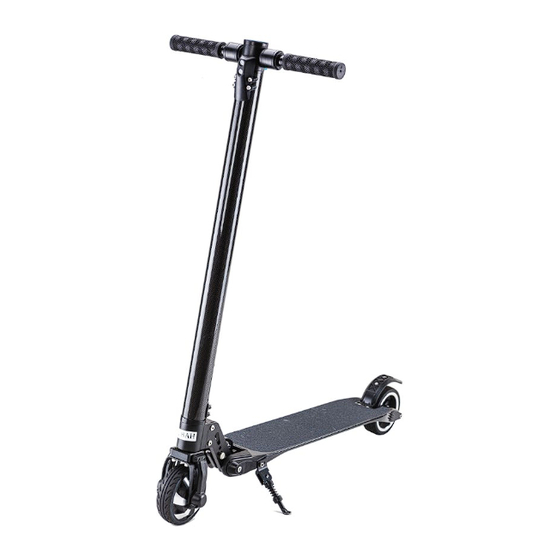

Electric Scooter
User Manual
[Revision 8.0 June 2019]
Please note that there must be forward momentum for the motor to activate.
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY,
PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE.
• Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description
and packaging.
E&OE
©2019 Bullet
Advertisement
Table of Contents
Related Manuals for Bullet TRNCFSBULBZLI
Summary of Contents for Bullet TRNCFSBULBZLI
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE ©2019 Bullet...
-
Page 2: Safety
Bumpy, slippery, uneven or rough surfaces may increase risks. • Do not touch the brakes or electric motor when in use and/or immediately after riding as they can become very hot. • Do not ride at night or when visibility is limited. E&OE ©2019 Bullet... - Page 3 The charger is not a toy, and should be operated by adults only. • Do not operate the charger near flammable materials. • Do not clean or perform any maintenance on the product when it is being charged. E&OE ©2019 Bullet...
-
Page 4: Table Of Contents
Maintenance and Storage ......................10 Cleaning and Storage ..........................10 Battery Care and Charging ........................10 Battery Charging ..........................10 Battery Disposal ........................... 10 USB Charger ............................10 Charging the Tail Light ........................11 Troubleshooting .......................... 12 Specifications ..........................12 E&OE ©2019 Bullet... -
Page 5: Parts Identification And Assembly
(anti-clockwise) to screw it in. Tighten it firmly by hand. 2. Install the left-hand handlebar (2) to the "steering head" – rotate it right (clockwise) to screw it in, and tighten firmly by hand. E&OE ©2019 Bullet... -
Page 6: Operation
To fold the scooter, push in the locking pin and hold it there, then rotate the steering tube down a little before releasing the pin. Continue rotating the steering tube down until the locking pin "pops" out – the scooter is now the folded position (C). E&OE ©2019 Bullet... -
Page 7: Controls And Features
Rear Brake – Step on mudguard to apply rear brake. Tail Light – Safety feature for added visibility that illuminates on scooter movement. Headlight – Safety feature for added visibility. Press and hold Decrease Speed button to switch the headlight ON and OFF. E&OE ©2019 Bullet... -
Page 8: Using The Console
- "1" = 15km/h; "2" = 20km/h; "3" = 27km/h. Error Indicator – Illuminates if a system error occurs. The scooter may stop functioning if an error occurs – contact an authorised service centre for assistance. E&OE ©2019 Bullet... -
Page 9: Basic Operation
8. To slow down, use the rear brake be pressing on the rear mudguard with your foot, or use the Decelerator paddle, or use both. When using the Decelerator paddle, the console displays "braking level" symbols. E&OE ©2019 Bullet... -
Page 10: Maintenance And Storage
The battery must have sufficient charge available for this function to be used. To use the USB charging function, plug the device into the charging port (Z) using a suitable cover (not supplied). E&OE ©2019 Bullet... -
Page 11: Charging The Tail Light
Once charged, check the tail light by holding it and moving it in various directions to activate the lamps. 5. Re-insert the rubber plug into the connector, then carefully slide the tail light into the mudguard and secure it using the 2 screws. E&OE ©2019 Bullet... -
Page 12: Troubleshooting
Seek diagnosis and repair from authorised intermittently. damaged / faulty. service center. Tail light not illuminating Battery requires charging Charge the tail light battery. Specifications Battery Type Lithium-Ion Charging Time Approximately 4 hours Maximum Load 120kg (rider weight) E&OE ©2019 Bullet... - Page 13 ©2019 Bullet. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
