Model 330V
O O w w n n e e r r ' ' s s G G u u i i d d e e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Model 330V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viper Model 330V

Summary of Contents for Viper Model 330V

  • Page 1 Model 330V O O w w n n e e r r ’ ’ s s G G u u i i d d e e...
  • Page 2 l l i i m m i i t t e e d d l l i i f f e e t t i i m m e e c c o o n n s s u u m m e e r r w w a a r r r r a a n n t t y y Directed Electronics, Inc.
  • Page 3 AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED ELECTRONICS, INC. OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.

  • Page 4: Table Of Contents

    contents limited lifetime consumer ..warranty ....i trademarks and copyrights ..1 what is included ... . .2 important information .

  • Page 5: What Is Included

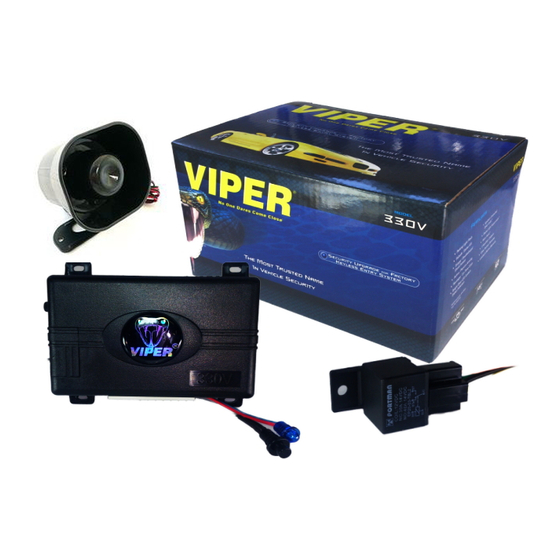

    what is included Control module and harness A Stinger ® dual stage shock sensor (on-board the control module) Pre-wired Valet ® switch and status LED Failsafe ® Starter Kill relay (if equipped) important information Congratulations on the purchase of your security system. Due to the complexity of this system, it must be installed by an authorized dealer only.

  • Page 6: Using Your System

    using your system manual (active) arming The factory default is active arming. In this mode you can activate, or arm, the system by locking the doors with your factory keyless entry transmitter. When the system arms, you will hear a short horn honk and see the parking lights flash once.

  • Page 7: Armed Protection

    n n o o t t e e : : If any protected entry point (such as a door or a switch- protected trunk or hood) is open, the system will not passively arm. Additionally, each time a sensor is triggered during the arming countdown, the 30-second countdown starts over.

  • Page 8: Disarming

    disarming To disarm the system, unlock the doors using your factory keyless trans- mitter. The horn will sound twice, and the parking lights will flash twice. If the horn sounds either four or five times when disarming, refer to the Diagnostics section of this guide. This is called Tamper Alert. disarming without a transmitter This feature allows you to override the system without the transmitter should it be lost, damaged or disabled.

  • Page 9: Remote Valet

    T T o o e e n n t t e e r r o o r r e e x x i i t t V V a a l l e e t t ® ® M M o o d d e e w w i i t t h h t t h h e e V V a a l l e e t t Turn ignition to “on”...

  • Page 10: Nuisance Prevention Circuitry

    transmitter does not have a panic button, this system can be pro- grammed to enable a panic feature (refer to the Programming Options). If enabled, just press the lock button on your factory keyless transmit- ter twice within three seconds to enter Panic Mode. The horn will sound and the parking lights will flash for 30 seconds.
  • Page 11 If the bypassed sensor tries to trigger the system while it is being bypassed, the 60-minute bypass period will start over. This ensures that a sensor that is continuously triggering will remain bypassed. Doors are covered differently: If the alarm is triggered by an open door for three full cycles (one-and-one-half minutes), the doors will be bypassed until the trigger ceases.

  • Page 12: Diagnostics

    diagnostics The microprocessor at the heart of your system is constantly monitor- ing all of the switches and sensors connected to it. It detects any faulty switches and sensors and prevents them from disabling the entire sys- tem. The microprocessor will also record and report any triggers that occurred during your absence.

  • Page 13: Table Of Zones

    each time it is disarmed, until the next time the ignition key is turned on. table of zones The zone number is the number of LED flashes used by the system to identify that input. The standard input assignments are listed below. Z Z O O N N E E (Number LED Flashes)

  • Page 14: Programming Options

    programming options Programming options control your system's normal, operational set-up. Most options do not require additional parts, but some may require installation labor. programming settings The following is a list of the program settings: n n o o t t e e : : Factory default setting is shown in b b o o l l d d . n n o o t t e e : : Settings 6 and 11 are to be set by the installer.
  • Page 15 the parking lights will flash for a few seconds followed by a full trigger response when the door is opened. In the instant mode, the system will trigger the full trigger response. Sensor shunt zones 2 2 and 4 4 or All zones. Siren duration - 3 3 0 0 seconds or 60 seconds.

  • Page 16: Glossary Of Terms

    glossary of terms Control Module: The “brain” of your system. Usually hidden under- neath the dash area of the vehicle. It houses the microprocessor which monitors your vehicle and controls all of the alarm’s functions. Failsafe Starter Kill (if equipped): An automatic switch controlled by ®...
  • Page 17 © 2005 directed electronics, inc.

  • Page 18: Notes

    notes © 2005 directed electronics, inc.
  • Page 19 © 2005 directed electronics, inc.
  • Page 20 Q Q U U I I C C K K R R E E F F E E R R E E N N C C E E G G U U I I D D E E : : T T o o a a r r m m t t h h e e s s y y s s t t e e m m ■...
  • Page 21 The company behind this system is Directed Electronics, Inc. Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, DIRECTED is ISO 9001 registered.
