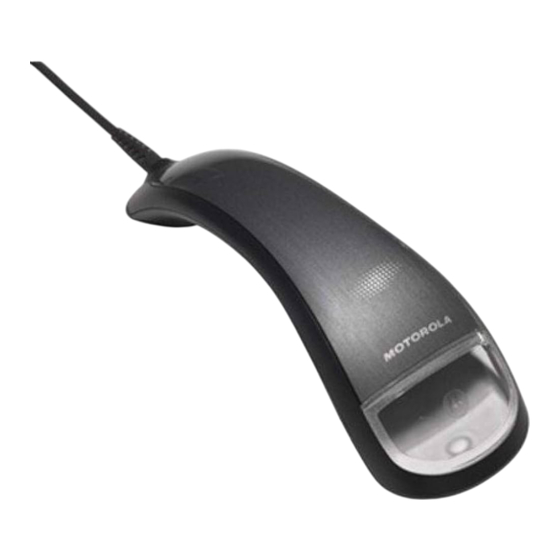

Corded digital imager
Hide thumbs Also See for DS4800:

Advertisement

Quick Links

DS4800 SERIES CORDED
DIGITAL IMAGER
QUICK START GUIDE

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for Motorola DS4800

  • Page 1 DS4800 SERIES CORDED DIGITAL IMAGER QUICK START GUIDE...
  • Page 2 Motorola reserves the right to make changes to any product to improve reliability, function, or design. Motorola does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Motorola products might be used.
  • Page 3: Presentation Mode

    DS4800 Series Imager Quick Start Guide Imager Features Presentation Mode Interface Cable Customizable Bezel Capacitive Touch Trigger Speaker LED Indicator Connect Host Interface Set Defaults Bar Code Set Factory Defaults...
  • Page 4: Enter Key Bar Code (Carriage Return/Line Feed)

    DS4800 Series Imager Quick Start Guide Enter Key Bar Code (Carriage Return/Line Feed) Add an Enter key after scanned data. Enter Key (Carriage Return/Line Feed) Tab Key Bar Code Add a Tab key after scanned data. Tab Key Set Up Interface (Scan Host Bar Codes) USB Device Type The imager defaults to the HID keyboard interface type.
  • Page 5: Usb Caps Lock Override

    DS4800 Series Imager Quick Start Guide IBM OPOS (IBM Hand-Held USB with Full Scan Disable) Simple COM Port Emulation USB CDC Host SSI over USB CDC Symbol Native API (SNAPI) with Imaging Interface Symbol Native API (SNAPI) without Imaging Interface...
  • Page 6: Emulate Keypad With Leading Zero

    DS4800 Series Imager Quick Start Guide Emulate Keypad Enable Keypad Emulation Disable Keypad Emulation Emulate Keypad with Leading Zero Enable Keypad Emulation with Leading Zero Disable Keypad Emulation with Leading Zero Quick Keypad Emulation Applies only when Emulate Keypad is enabled.
  • Page 7 DS4800 Series Imager Quick Start Guide Scanning Correct and Incorrect Triggering Hand-Held Triggered and Hand-Held Presentation Scanning Hands-Free Scanning and Aiming 0 1 2 3 4 5...
  • Page 8: User Experience

    DS4800 Series Imager Quick Start Guide User Experience User Indications (By Default) Speaker Haptic/ Indication Indicator LED Sequence Vibration Power up Power up tone Green, then fades out Double-vibrate Ready to scan (hand-held mode) None None None Ready to scan...
  • Page 9 DS4800 Series Imager Quick Start Guide Haptic/Vibration Enable Disable Indicator LED Enable Disable Trigger Feedback Scan ONE bar code for each option if the default (*) does not meet your requirements. Trigger Audio Click Enable Disable Haptic/Vibration Enable Disable...
  • Page 10: Utility Functionality

    DS4800 Series Imager Quick Start Guide Scan Tone Scan ONE bar code for each option if the default (*) does not meet your requirements. *Wood Block / Tone 1 Pulse / Tone 2 Chime / Tone 3 Zap / Tone 4...
  • Page 11: Recommended Usage / Optimum Body Posture

    DS4800 Series Imager Quick Start Guide Recommended Usage / Optimum Body Posture AVOID BENDING AVOID EXTREME WRIST ANGLES Avoid Extreme Wrist Angles Avoid Bending AVOID REACHING Avoid Reaching Troubleshooting Indication Resolution Aiming dot does not appear No power to imager...
  • Page 12: Regulatory Information

    Motorola Solutions, Inc. (collectively “Motorola”). This guide applies to Model Number: DS4801. All Motorola devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following website: http://www.motorolasolutions.com/support.
  • Page 13: Japan (Vcci) - Voluntary Control Council For Interference

    DS4800 Series Imager Quick Start Guide Japan (VCCI) - Voluntary Control Council for Interference Class B ITE Korea Warning Statement for Class B ITE Other Countries Brazil Regulatory declarations for DS4801 - BRAZIL For more information consult the website www.anatel.gov.br Declarações Regulamentares para DS4801 - Brazil...
  • Page 14: Waste Electrical And Electronic Equipment (Weee)

    Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono essere restituiti a Motorola al fine di consentirne il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il seguente sito Web: http://www.motorolasolutions.com/recycling/weee.
  • Page 15: China Rohs

    Scan the bar code below for the DS4800 serial number. Report DS4800 Serial Number DS4800 Product Page Scan the bar code below to visit the Motorola Solutions DS4800 Series product page, where you can access this and all user guides. http://www.motorolasolutions.com/DS4800...
  • Page 16 MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2014 Motorola Solutions, Inc. All Rights Reserved.
