Fusion CRGBW Instructions

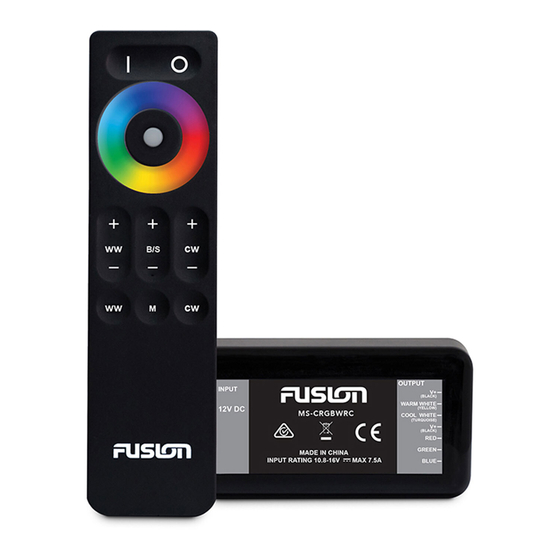

Wireless CRGBW LED Remote Control
Instructions
Important Safety Information
Failure to follow these warnings and cautions could result in
personal injury, damage to the vessel, or poor product
performance.
See the Important Safety and Product Information guide in the
stereo box for product warnings and other important information.
This device must be installed according to these instructions.
Disconnect the vessel's power supply before beginning to install
this product.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
When drilling or cutting, always check what is on the opposite
side of the surface to avoid damaging the vessel.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation,
contact Fusion ® Product Support.
Supplies and Tools Needed
• 2-conductor 22 AWG (0.33 mm
control receiver to the power source
• 6-conductor 22 AWG (0.33 mm
combination of 2- to 4-conductor wire) to connect the receiver
to the LED speakers
• Cable ties or adhesive for mounting the receiver
• 4 gauge (3 mm) countersunk stainless-steel screws for
mounting the remote cradle (optional)
• 3 mm flat screwdriver
• Wire cutters
• Drill and drill bits for mounting the remote cradle (optional)
Mounting and Connection Considerations
When selecting a location for the remote control receiver and
making the wiring connections, observe these considerations.
• The receiver housing is not weather proof, and you must
install the receiver in a location that is not exposed to the
elements.
• You can connect a single receiver to up to 10 LED speakers
with RGB, cool white, and warm white functionality (5 pair).
You must use an additional receiver and remote control (sold
separately) to connect to additional LED speakers.
• You cannot use a single remote control with more than one
receiver.
Connecting the Remote Control Receiver
You can connect up to 10 (5 pair) of CRGBW LED speakers to
one remote control receiver.
1
Route a power wire (not included) from a 12 Vdc power
source to the location of the receiver
August 2020
®
WARNING
CAUTION
NOTICE
2
) wire to connect the remote
2
) wire (or equivalent
.
2
Install the included 7.5 A fuse
3
Route 6-conductor wire
the receiver to the speakers you want to control, joining the
wire where needed to connect up to 4 speakers.
NOTE: To avoid interference, you must not route the LED
wires near and parallel to any RCA, power, or speaker audio
cables. You should also avoid routing this cable near any
other electronic cabling on the vessel.
4
Connect the 6-conductor wire or equivalent to the CRGBW
connectors on the speakers according to the installation
instructions provided with the speakers.
5
Loosen the wire terminal screws on the bottom of the
receiver using a 3 mm flat screwdriver.
6
Connect the power and RGB speaker wires to the wire
terminals on the sides of the receiver.
Letter on receiver label
INPUT +12V DC (left
side)
INPUT -12V DC (left
side)
V+ (BLACK) (right side)
WARM WHITE
(YELLOW)
COOL WHITE
(TURQUOISE)
V+ (BLACK) (right side)
RED
GREEN
BLUE
7
Tighten the wire terminal screws on the bottom of the
receiver.
8
Secure the receiver to the mounting location using cable ties
or adhesive (not included).
Installing the Remote Control Cradle
You can install the included remote cradle to store the remote
when not in use. Mounting hardware for the cradle is not
included.
Because the remote control is not weatherproof, you must install
the cradle in a location that is not exposed to the elements.
1
Using the cradle as a template, mark the two pilot holes.
2
Remove the cradle from the mounting surface and drill the
pilot holes.
GUID-80736249-84A1-4457-B3FC-9231AA6112DC v1
on the power wire.
or equivalent (not included) from
Wire color or function
12 Vdc negative (-)
12 Vdc positive (+)
CRGBW 12 Vdc positive (+) (common)
wire
NOTE: Two V+ connectors are provided
on the right side for convenience. You
should connect the common wire from
the speakers to only one of these
connectors.
CRGBW warm white wire
CRGBW cool white wire
CRGBW 12 Vdc positive (+) (common)
wire
NOTE: Two V+ connectors are provided
on the right side for convenience. You
should connect the common wire from
the speakers to only one of these
connectors.
CRGBW red wire
CRGBW green wire
CRGBW blue wire
NOTICE
