- Page 1 English TOPAZ User Guide TOPAZ...
-
Page 2: Specifications

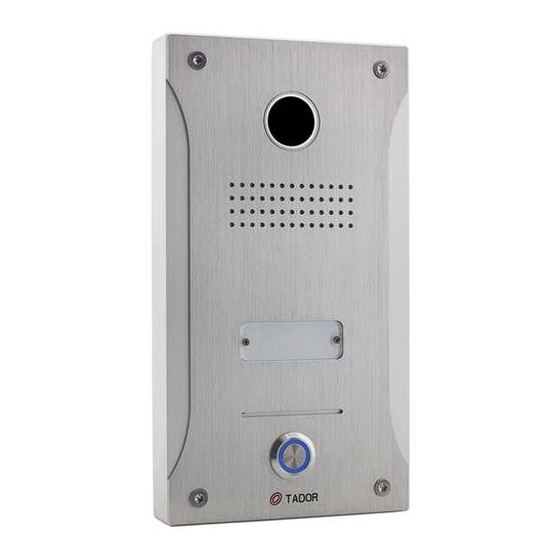

General Topaz Door entry system is Audio-Video door entry system 2 wires based for villa houses and apartments. The system works on 2 wires and very easy to program and install. It allows connecting up to 4 panels and 32 monitors. -
Page 3: Power Supply Details
Power supply details Operating voltage Transformer type Description Amount of Amount of monitors Panels 24V 4.5A Ns-100 Up to 3 Ns-150 24V 6.5A Up to 7 Ns-350 24V 14.6A Up to 32 Electric or magnetic Lock Type או Normally close Normally open Surface Flush Mount... -
Page 4: Installation Diagram
Installation diagram A. Topaz Panel + 1 Monitor B. Topaz panel + more than one monitor... - Page 5 • 250mA, we advise to use external power supply for maximum results as 250mA is lock that made for small voltage and might be to weak for the system Monitor settings for panel with 2 buttons will call will call monitors monitors number...
- Page 6 Monitor 3: Slave Monitor 4: Slave • The door station is also compatible with other monitors which our provided by Tador. • It can be extended 3 slave monitors for each monitor ( Better use with extra distributer for extension )
- Page 7 It is possible to connect up to four panels in a system, and if want to do that you will need to set each panel a different number. Below setting will allow you to set panel number: 1 - 4 Panel 4 Panel 3 Panel 2...
- Page 8 Thank you for buying one of our products Thank you for buying one of our products www.Tador.com All rights reserved Tador Technologies LTD All rights reserved Tador Technologies LTD All rights reserved Tador Technologies LTD...
