INTRODUCTION AND
OBSERVATIONS

2.3- HOW TO FIX THE MACHINE TO THE WALL AND THROW LINE

M i n i d a r t m a c h i n e c a n b e f i x e d t o t h e w a l l u s i n g t h e s e c u r i t y m a c h i n e h a n g e r

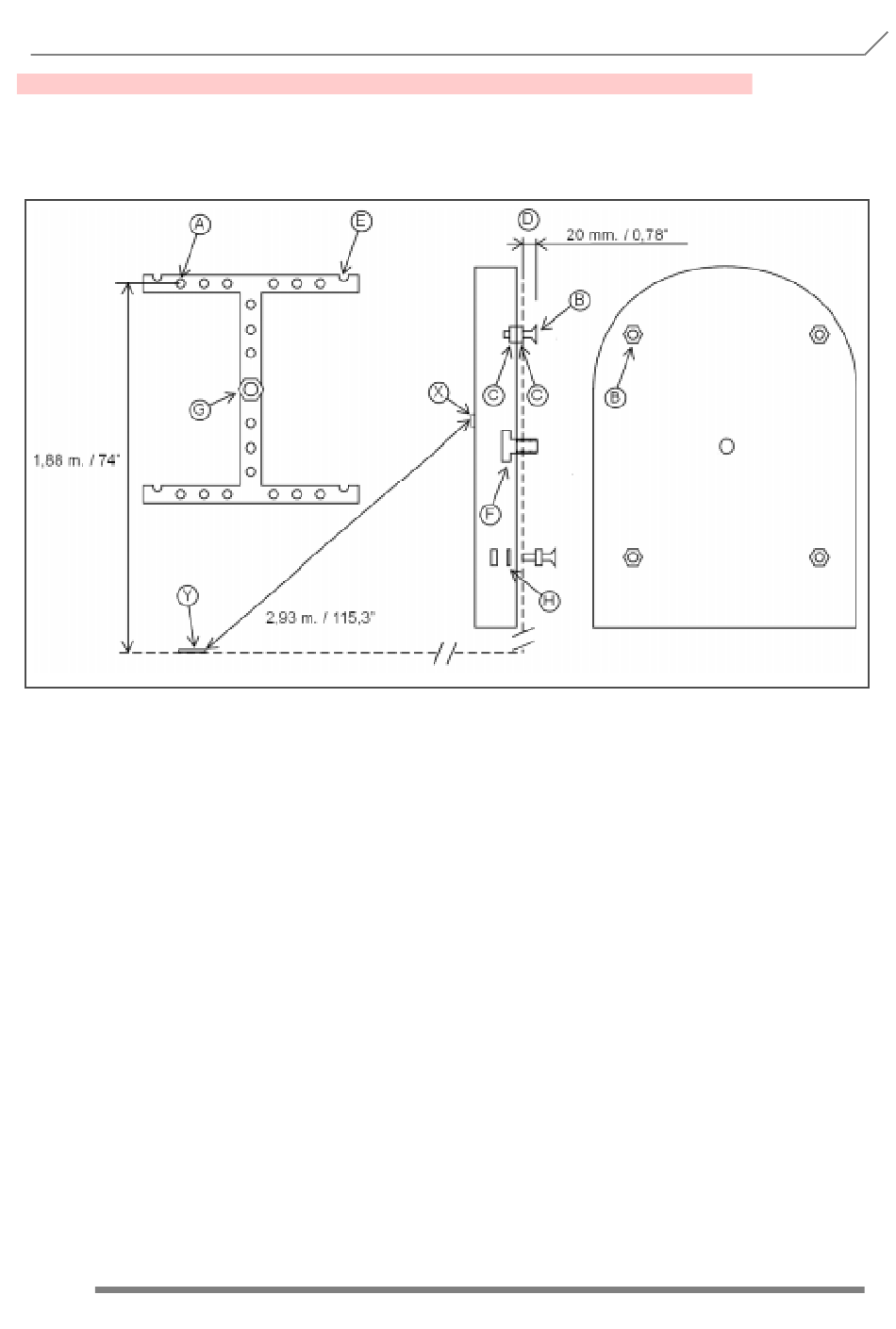

(Part number 00-000-116). See figure 2.
SECURITY HANGER
1- Fix the security machine hanger to the wall by the screws introducing them through
the 18 holes marked with A.
ATTENTION: Check the stiffness of the wall and use the corresponding screws. The security
hanger has to resist the 40 kg./87 pounds weight.
2- Take out the inner target following the steps in ( see paragraph 2.2.1 ).
3- 1,88 m / 74" is the exact height from hole A (security hanger) to the floor. See figure 2.
4- Put the 4 screws (cone head hex screw m10x18 mm./0,70" ) marked B following the figure 2,
with two nuts C, each one at both sides of the metal case. Add the four washers H.
Check that the distance D is about 20 mm./0,78".
5- Put the machine on the security hanger. The screws B have to fit inside mooring
charge marked with E.
6- Put the security screw F (hexagonal m10x20 mm./0,78") and fix it by the nut G.
-8-
2.3- HOW TO FIX MACHINE TO WALL AND THROW LINE
FLOOR
FIGURE 2
