INTRODUCTION AND OBSERVATIONS

2.5- MULTI COIN ACCEPTOR

2.5.2- SPECIFICATIONS

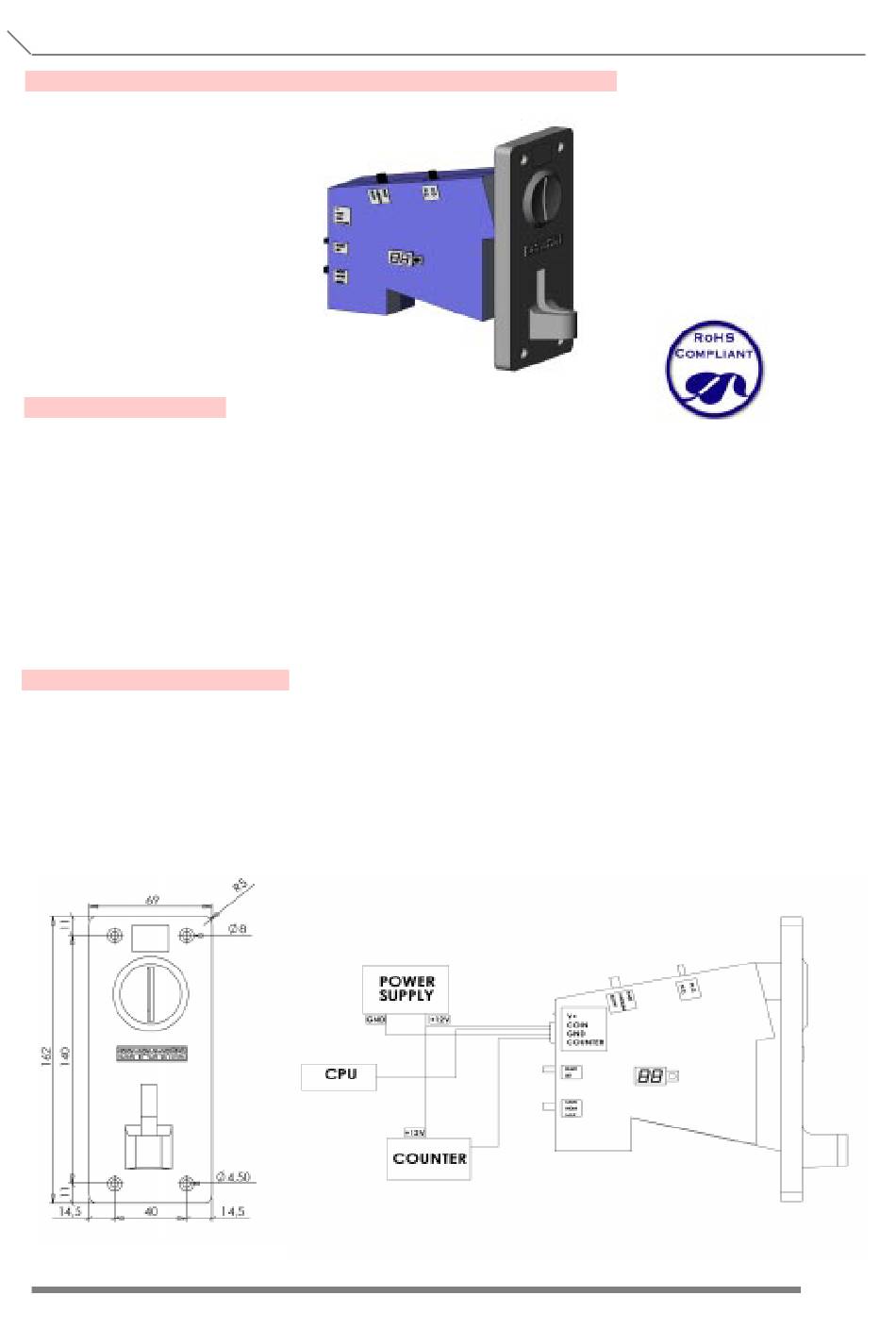

2.5-AUTO PROGRAMMABLE MULTI COIN ACCEPTOR

2.5.1-FEATURES

-Standard front plate measures.
-The microprocessor identifies the coin.
-Identifies 3 different kind of coins. Up to 15 coins must be programmed to complete the self
learning routine.
-Easy adjustement of 3 levels of sensibility.
-Safety system CPU with manipulation prevention for a reliable and safe operation.
-Mechanical coin counter output (120 ppm). (counter not included).
-2 diferent size of pulses to adapt to any device.

2.5.2-SPECIFICATIONS

Coin diameter: 18mm - 29mm
Coin width: 1,2mm - 3 mm
Voltage: DC 12 V +/- 20 %
Operating temperature: 10 º ~ 45 º
Power consumption: 50 mA (no counter)
Note: Turn-on the unit for 10 minutes before programming, to allow temperature to stabilize in the
components.
-11-
