INTRODUCTION AND
OBSERVATIONS

2.6- CARD READER

The IC Card can be used in this machine to identify players, payment, bonus, etc.
A Computer and its software must be connected in order to use all this features.

2.7- NETWORKING MACHINES

Up to 32 machines can be connected to play in RS485 network. Connect a wire with 2 connectors
RJ11 to the CPU (CN20,CN21).
Connect a RS485/USB converter to the computer. See figure 10.
The TOTAL lenght of the wire can't exceed 100 m. (3937"). Wires between machines can't exceed
3 m. (118,11").

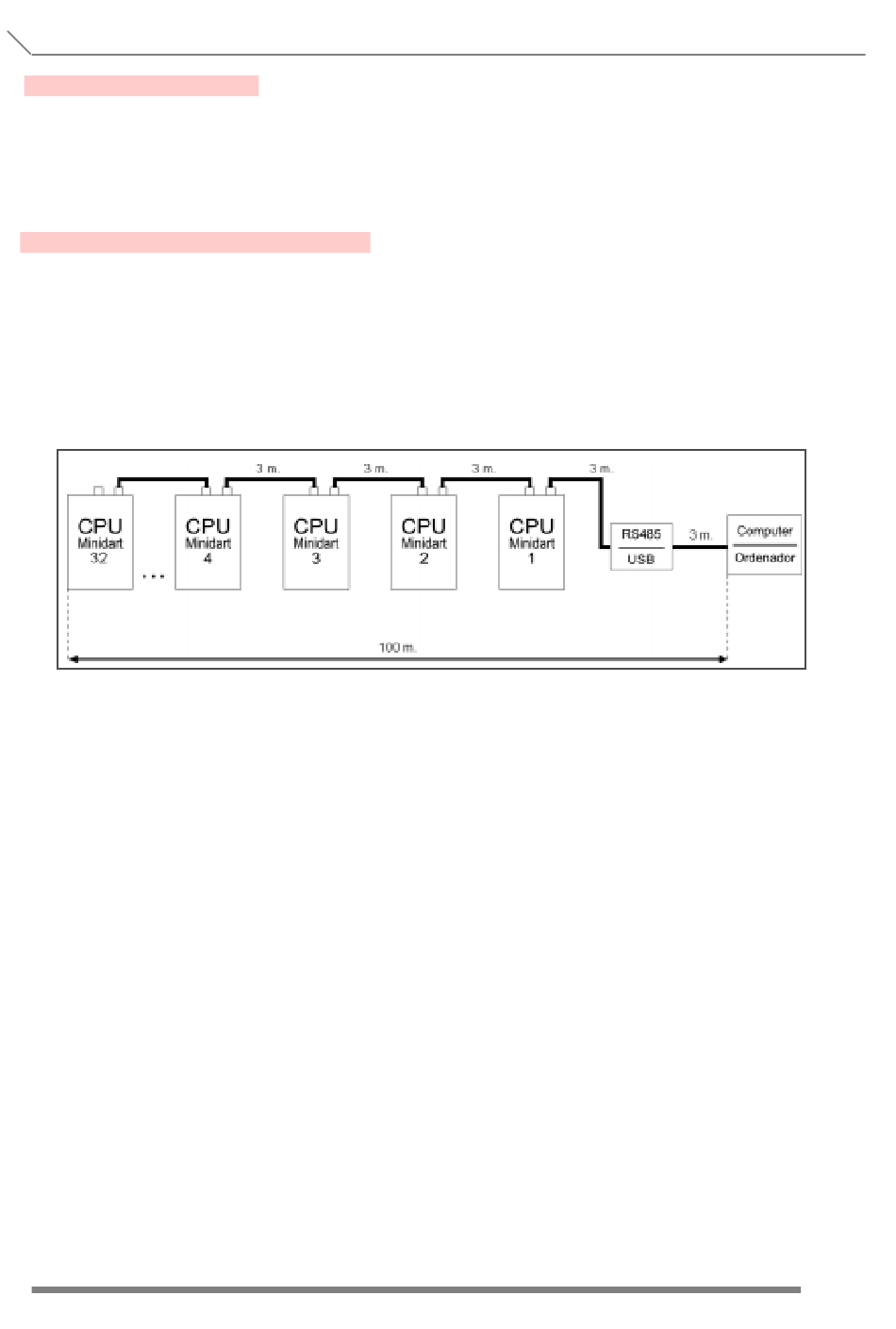

FIGURE 10
2.6- CARD READER
2.7- NETWORKING MACHINES
