INTRODUCTION AND OBSERVATIONS
2.5.3-. PROGRAMMING
The programming mode shows in display the diferent registers of memory. Every register match
with the number of pulses given. So if we program register number 2 means the coin introduced will
give 2 pulses.
1. At the beginning put the switch E in «normal» position, put mode switch B in «set».
The display shows «00».
2. press and release «A» button every time for reaching the desired register. The display will show
1.2.3...99
3. Insert 15 diferent coins (same value). When finishing the unit will show «F» and a «beep» can
be heard.
4. Put the switch «B» in «start» position for normal operation

2.5.4- CLEANING REGISTERS

1- To clean only one register put the switch B in "set"(display 00), select the desire register
throught button A , then press button A and keep pressed until you hear a "beep" (2 seconds).
2. To clean ALL registers press button A for 2 seconds when display shows «00». Then it shows
«C».
3 return switch B to «start» position when finishing for normal operation.

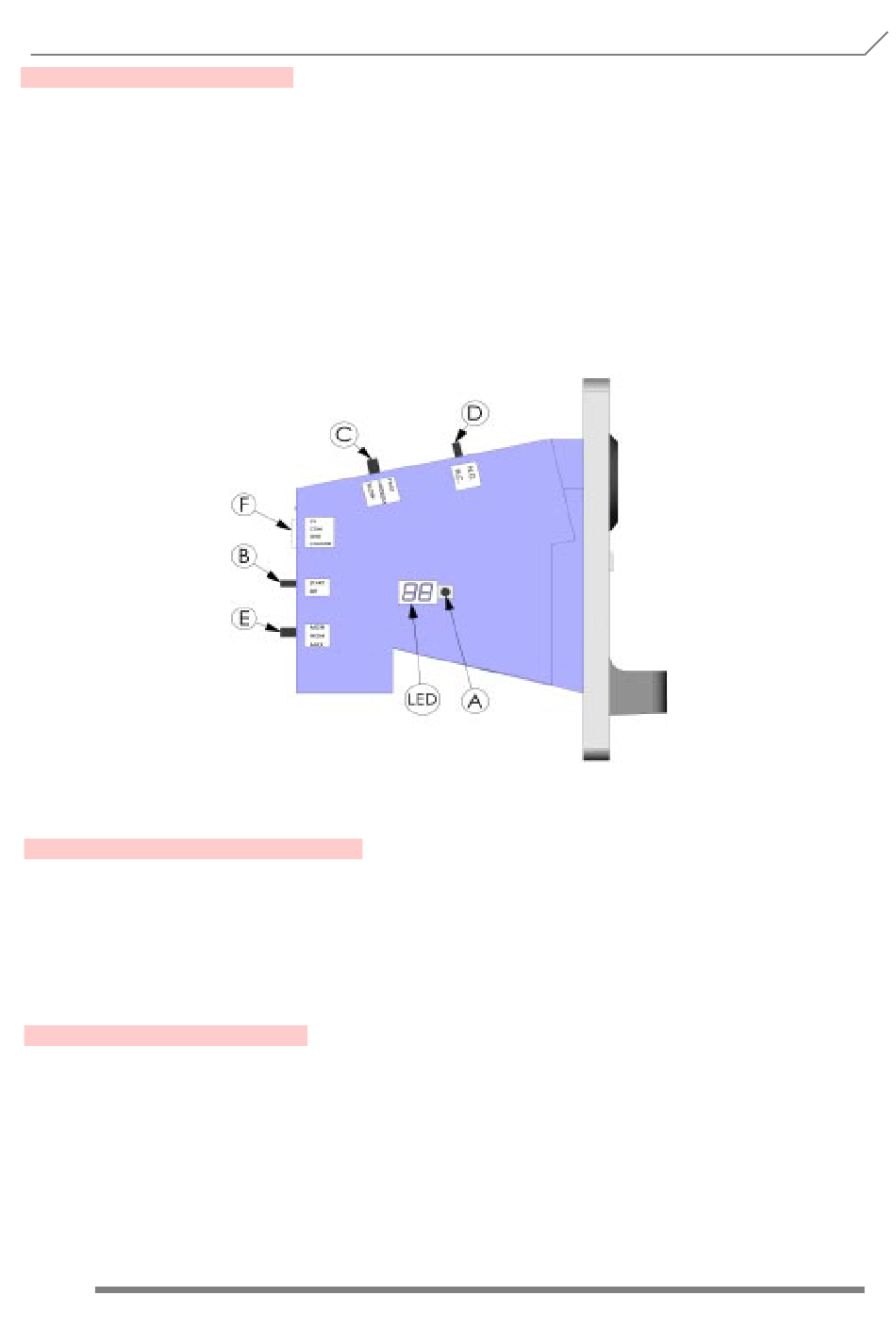

2.5.5- SWITCH OPTIONS

B. Mode of operation: «Start» normal operation «SET» Programming. 1- 99 reg/pulses
C. Width of pulse: Fast 25ms. Medium 45ms Slow 65 ms
D. Output pulse type: NO normally open (0),(standar). NC normally closed (1)
E. Accuracy window acceptance: «mgn» = big. «nom» = normal. «max» = small.
