Summary of Contents for Pulsar VD51

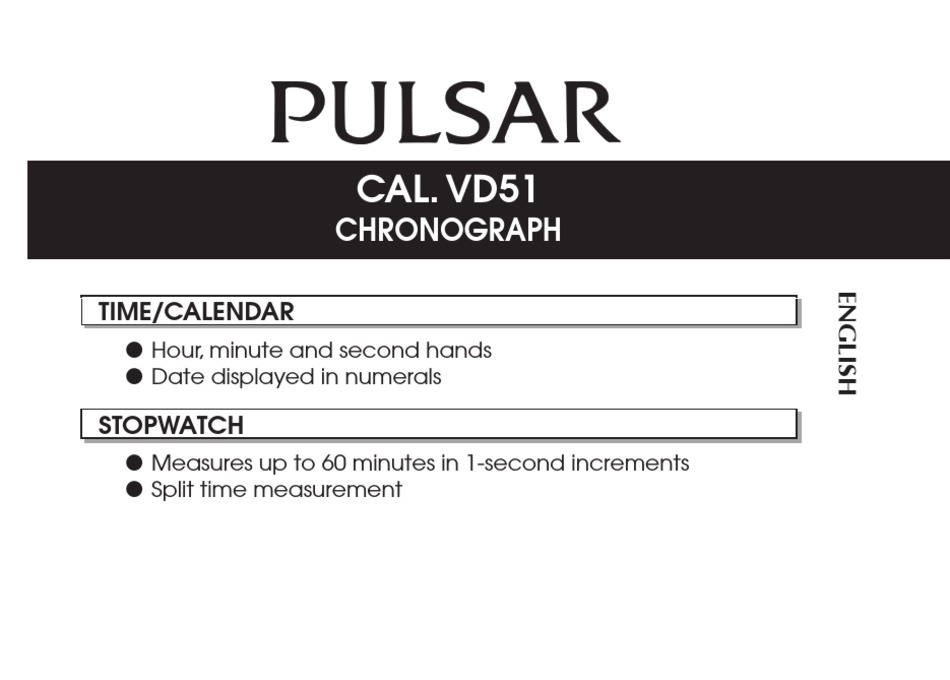

- Page 1 CAL. VD51 CHRONOGRAPH TIME/CALENDAR l Hour, minute and second hands l Date displayed in numerals STOPWATCH l Measures up to 60 minutes in 1-second increments l Split time measurement...
- Page 2 DISPLAY AND CROWN/BUTTONS STOPWATCH second hand Minute hand Hour hand a: Normal position b: First click (date setting) c: Second click (time setting) SEC. CROWN Second hand Date MIN. STOPWATCH minute hand...
- Page 3 SCREW DOWN CROWN [for models with screw down crown] Unlocking the crown 1 Turn Crown counterclockwise until you no longer feel the threads turning. 2 Crown can be pulled out. Locking the crown 1 Push Crown back in to normal position. 2 Turn Crown clockwise while pressing it lightly until tight.
- Page 4 STOPWATCH HAND POSITION ADJUSTMENT Before setting the time, be sure to check that the STOPWATCH second and minute hands return to the “0” position when the stopwatch is reset. HOW TO RESET THE STOPWATCH If the stopwatch is in use, press the buttons in the following order to reset it, and then, check if the STOPWATCH hands are at the "0"...
- Page 5 If any STOPWATCH hands do not return to the "0" position when the stopwatch is reset, reset the positions of the STOPWATCH hands by following the procedure below. STOPWATCH second hand Pull out to second click. CROWN Press to reset the position of the STOPWATCH second hand to the "0"...
-
Page 6: Time Setting
TIME SETTING Before setting the time, check that the stopwatch measurement is stopped. Pull out to first click, and turn CROWN Hour hand Second hand clockwise until the previous day’s date appears. Do not set the date between 9:00 P.M. and 1:00 A.M. Otherwise, the date may not change properly. - Page 7 Pull out when the second hand is CROWN at the 12 o’clock position. Second hand The second hand will stop on the Minute hand spot. When the crown is at the second click position, do not press any button, as doing so will start the SEC.
- Page 8 STOPWATCH l The stopwatch measures up to 60 minutes in 1-second increments. l The measured time is indicated by the STOPWATCH hands that move independently of the hands for time display. l Before using the stopwatch, be sure to check that the crown is set at the normal position and that the STOPWATCH hands are reset to the “0”...
- Page 9 Standard measurement Ex . 100m race RESET START STOP Accumulated elapsed time measurement Ex. Basketball game START STOP RESTART STOP RESET (Start of game) (Time out) (Restart of game) (Game over) • Restart and stop of the stopwatch can be repeated as many times as necessary by pressing the button A.
-
Page 10: Battery Change
When the battery expires, be sure to replace it as soon as possible to prevent any malfunction. l We recommend that you contact an AUTHORIZED PULSAR DEALER for battery replacement. l After the battery is replaced with a new one, adjust the stopwatch hand position and... - Page 11 l Necessary procedure after battery change After the battery is replaced with a new one, or in case any of the hands should move improperly, follow the procedure below to reset the hands to the “0” position. Pull out to second click. CROWN Press and hold simultaneously for 2 seconds or longer.
- Page 12 WARNING Do not remove the battery from the watch. If it is necessary to take out the battery, keep it out of the reach of children. If a child swallows it, consult a doctor immediately. Never short-circuit, tamper with or heat the battery, and never ex- pose it to fire.
-
Page 13: To Preserve The Quality Of Your Watch
3 bar, such as acci dental contact with splashes of water or rain, but it We recommend that you wear a PULSAR Diver’s is not designed for swimming or diving. watch for scuba diving. - Page 14 * Before using the water resistance 5, 10, 15 or 20 bar watch in water, be sure the crown is pushed in completely. Do not operate the crown when the watch is wet or in water. If used in sea water, rinse the watch in fresh water and dry it completely.
-
Page 15: Periodic Check
CARE OF CASE AND BRACELET MAGNETISM Y o u r w a t c h w i l l b e To prevent possible rusting of a d v e r s e l y a f f e c t e d b y the case and bracelet caused by strong magnetism.
