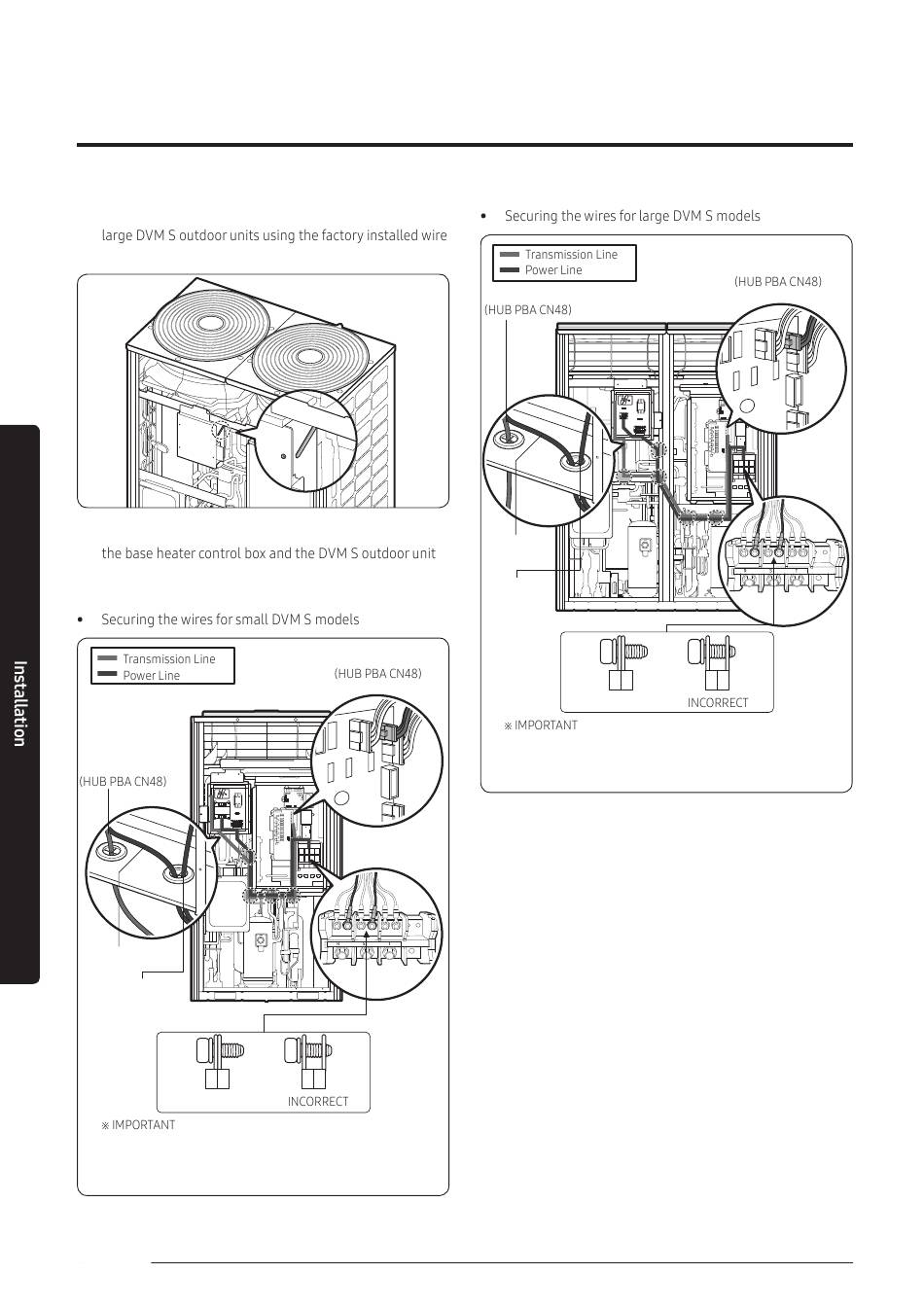

Control Box Installation
4
Secure the motor wire that connects to the control box on
holder. Be careful not to touch the control box's body.
5
Connect the Transmission and power wires between
control box. Secure the wires with the factory installed
wire holders.
Transmission wires
Power supply
wires
Base heater
power wires
CORRECT
When screwing the terminals together. arrange them back to
back so that there will be no gap left between them as shown
in the figures below.
6
English
Transmission wires
Power supply
wires
Base heater
power wires
Transmission wires
When screwing the terminals together. arrange them back to
back so that there will be no gap left between them as shown
in the figures below.
Power supply
wires
Transmission wires
CORRECT
Power supply
wires
