Related Manuals for Meaco 50Lm-v2
Summary of Contents for Meaco 50Lm-v2

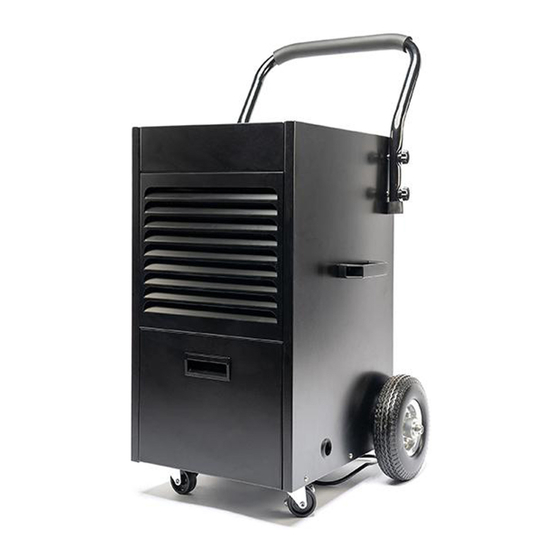

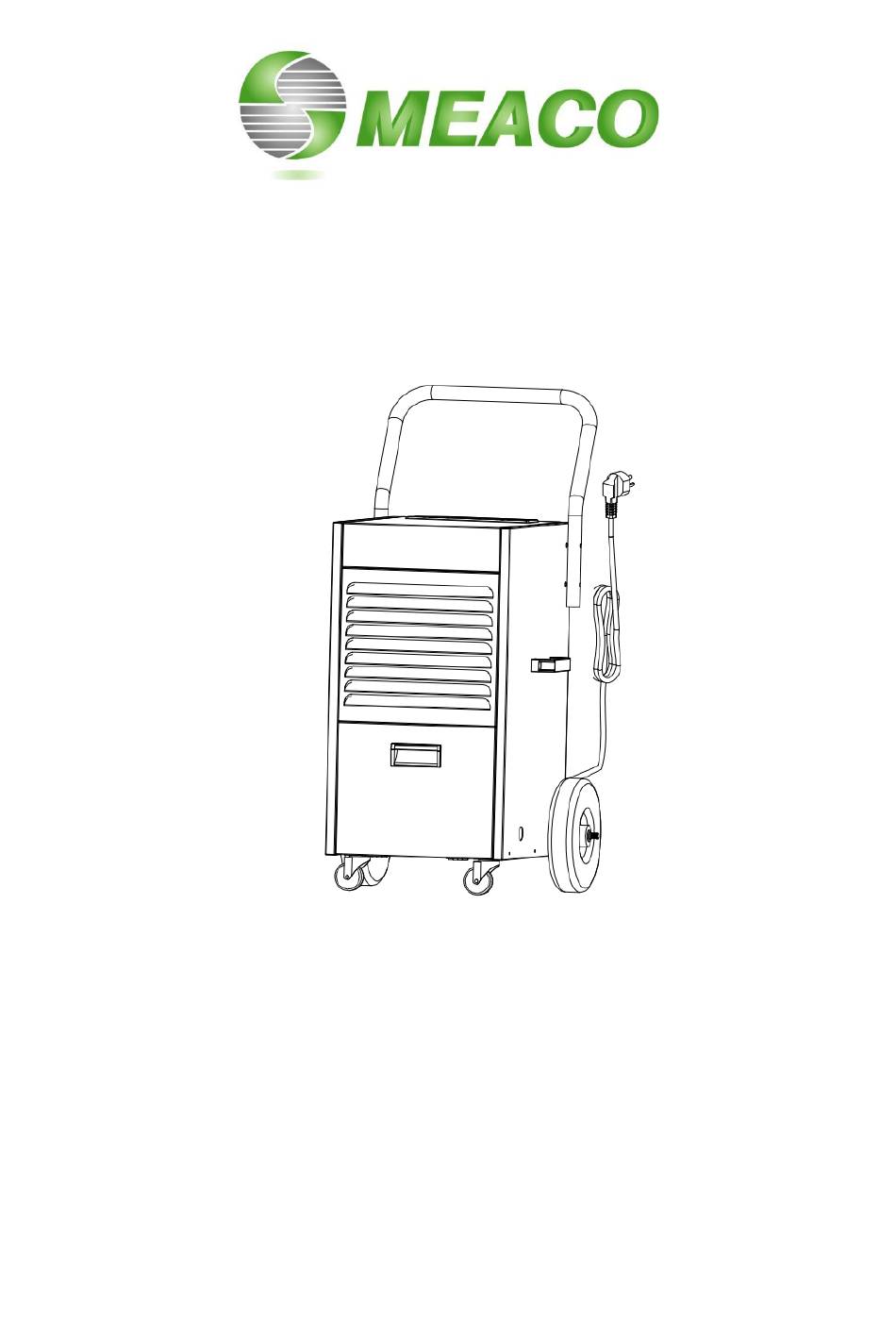

- Page 1 Meaco 50Lm-v2 Instruction Manual Meaco 50Lm Dehumidifier Please read this instruction manual before using the dehumidifier and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Saftey Information
If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt, do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user... - Page 3 ● If there is any damage to the unit then do not use it and contact Meaco or your retailer. ● As with all dehumidifiers, always keep upright and leave the dehumidifier standing upright for 24 hours before using it upon receipt.
-
Page 4: Wiring Instructions
GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 5: General Advice
GENERAL ADVICE ----------------------------------------------------------------------------------------------------------------------------- ---------- ● Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. ● After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. Store the dehumidifier box and packaging in a safe place –... -
Page 6: Product Identification
PRODUCT IDENTIFICATION ----------------------------------------------------------------------------------------------------------------------------- ---------- Front of the dehumidifier Pushing handle Control panel Air inlet Lift handle Water tank cover Big wheel Back of the dehumidifier Air outlet Power cord hook Power cord Radiator grill... -
Page 7: Installation
INSTALLATION ----------------------------------------------------------------------------------------------------------------------------- ---------- Before use 1. Remove the dehumidifier from the packaging and take down the hand-screw. 2. Rotate the pushing handle, aim it at the hole site, then tighten the hand-screws. 3. Installation complete. - Page 8 Emptying the water tank 1. When the water tank is full, the ‘FULL’ light will turn on. 2. The dehumidifier will also make a buzzing sound – to stop this, press the power button to turn the machine off. 3. To empty the water tank, open the front panel. Hold the water tank by its handle and pull it out horizontally.
-
Page 9: Control Panel And Operation
CONTROL PANEL AND OPERATION ----------------------------------------------------------------------------------------------------------------------------- ---------- Power button Press the power button to turn the dehumidifier on. The LED lights will display, and the dehumidifier will automatically enter continuous mode. The display screen will show the relative humidity level. The compressor is on. Press the power button again to enter standby mode – the compressor will turn off and the display screen will show ‘- -‘. -
Page 10: Other Functions
OTHER FUNCTIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- AUTOMATIC DEFROSTING SYSTEM During normal dehumidifying operation, ice may form on the evaporator. This dehumidifier is equipped with an automatic hot-gas defrosting system, if ice is detected by the temperature sensor, it will defrost automatically according to the following principle: ●... -
Page 11: Maintenance
MAINTENANCE ----------------------------------------------------------------------------------------------------------------------------- ---------- Always turn off the power and disconnect the main cable before performing maintenance procedures. INSPECT ELECTRICAL SYSTEM ● Inspect the electrical cord for damage at regular intervals. CLEANING THE EXTERIOR ● Clean the exterior with a soft, dry cloth. If the device is extremely dirty, use a mild cleaning agent or wipe the dehumidifier with a slightly damp cloth. -
Page 12: Specifications
SPECIFICATIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- ELECTRICAL CONNECTIONS This dehumidifier is designed to operate in a 230V~50Hz electrical installation. Make sure that the electric sockets are connected to earth and that all safety precautions are taken. OPERATING CONDITIONS This dehumidifier can be operated within an ambient temperature range from +5°C to +32°C, and with a relative humidity from 20%rh to 90%rh. -
Page 13: Troubleshooting
The room humidity is very high continuous mode or to reach a and above 95%rh target humidity level of 50%rh If you need to contact Meaco, please use the contact details below. Contact Number: 01483 234900 Contact Email: customerservice@meaco.com service@meaco.com Live Chat: www.meaco.com... -
Page 14: Warranty And Customer Service
To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This dehumidifier has been imported into... - Page 15 This marking indicates that this product should not be disposed with other household wastes throughout the UK and EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
