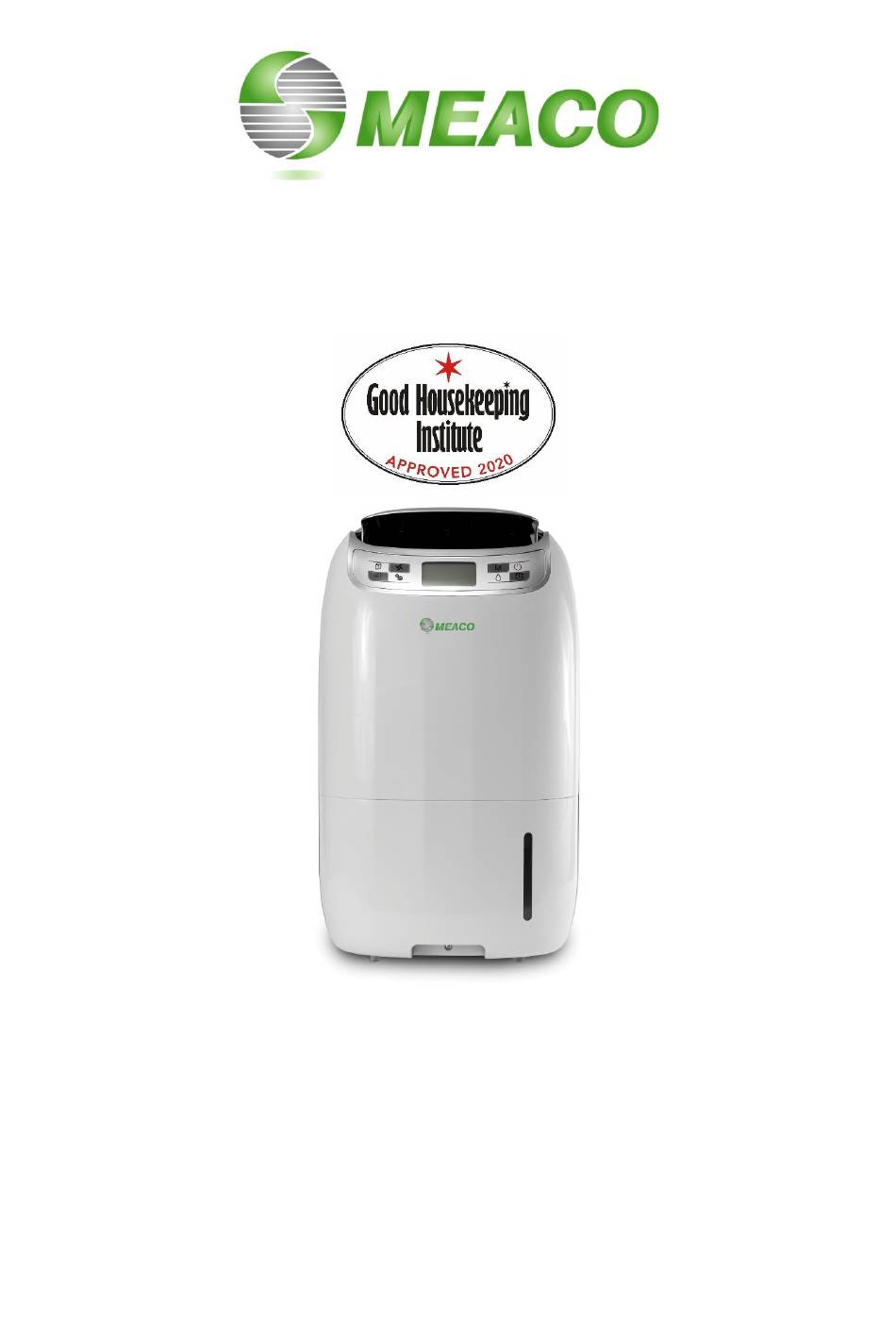

- Page 1 Meaco 25L Ultra Low Energy Dehumidifier Instruction Manual Meaco 25L Ultra Low Energy Dehumidifier Please read this instruction manual before using the dehumidifier and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Saftey Information
If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt, do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user... - Page 3 Do not puncture either during the units working life or after. At the end of life dispose of following local recycling regulations. • If there is any damage to the unit then do not use it and contact Meaco or your retailer. • As with all dehumidifiers, always keep upright and leave the dehumidifier standing upright for 3-4 hours before using it upon receipt.
-
Page 4: Wiring Instructions
GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 5: General Advice
GENERAL ADVICE ----------------------------------------------------------------------------------------------------------------------------- ---------- • Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. • After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. •... -
Page 6: Product Identification
If you would like to use the continuous drainage option on your dehumidifier, you can either purchase a hose from our website (www.meaco.com) or use a garden hose that has an internal diameter of 12mm. -
Page 7: Control Panel
CONTROL PANEL ---------------------------------------------------------------------------------------------------------------------- ----------------- ON/OFF BUTTON When the dehumidifier is plugged into a wall socket, the dehumidifier will bleep and the display will remain blank. Press the ON/OFF button to turn the dehumidifier on or off. MODE BUTTON Press the Mode button to move through the four different drying modes: Humidistat Mode, Laundry Mode, Quiet Mode and Auto Mode (see symbols below). - Page 8 QUIET MODE: Use to control the noise level of your dehumidifier. When in Quiet Mode the dehumidifier will drop to low fan speed to reduce the noise coming from the dehumidifier. The dehumidifier will not bleep. AUTO MODE: Ultimate control of the room relative humidity. Auto Mode uses the unique MeacoEasyRH Control Program whereby you can press just one button and the dehumidifier will automatically maintain an optimum relative humidity for you as follows:...
- Page 9 LOUVRE SWING BUTTON Press the Louvre Swing button to turn the swing mode on or off. When switched on, the louvre will automatically move up and down distributing the air evenly. When the louvre swing is switched off, the louvre can be moved into a fixed position manually in order to direct the airflow.
-
Page 10: Other Functions
DC motor is that the harder you work it, the more efficient it becomes. For example, when the dehumidifier is used in Laundry Mode, more water is collected faster, whilst using less energy. WHAT MEACO RECOMMENDS ----------------------------------------------------------------------------------------------------------------------------- ----------... -
Page 11: Cleaning The Exterior
MAINTENENCE ----------------------------------------------------------------------------------------------------------------------------- ---------- Always turn off the power and disconnect the main cable before performing maintenance procedures. INSPECT ELECTRICAL SYSTEM • Inspect the electrical cord for damage at regular intervals. CLEANING THE EXTERIOR • Clean the exterior with a soft, dry cloth. If the device is extremely dirty, use a mild cleaning agent or wipe the dehumidifier with a slightly damp cloth. -
Page 12: Specifications
SPECIFICATIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- ELECTRICAL CONNECTIONS This dehumidifier is designed to operate in a 230V~50Hz electrical installation. Make sure that the electric sockets are connected to earth and that all safety precautions are taken. OPERATING CONDITIONS This dehumidifier can be operated within an ambient temperature range from +5°C to +35°C, and with a relative humidity from 30%rh to 90%rh. -
Page 13: Troubleshooting
TROUBLE SHOOTING ----------------------------------------------------------------------------------------------------------------------------- ---------- TROUBLE CAUSE SOLUTION There is no power to the unit. Plug in the unit and check the power outlet. Unit does not operate The ON/OFF button has not Press the ON/OFF button. been pressed. Ambient temperature is lower Under this condition the than +5°C (C2 appears on the dehumidifier becomes... - Page 14 A pipe has cracked internally causing a gas leak (this is not Please contact Meaco. dangerous). If you need to contact Meaco, please use the contact details below. Contact Number: 01483 234900 Contact Email: customerservice@meaco.com service@meaco.com Live Chat:...
-
Page 15: Warranty And Customer Service
To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This dehumidifier has been imported into... - Page 16 This marking indicates that this product should not be disposed with other household wastes throughout the UK and EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
