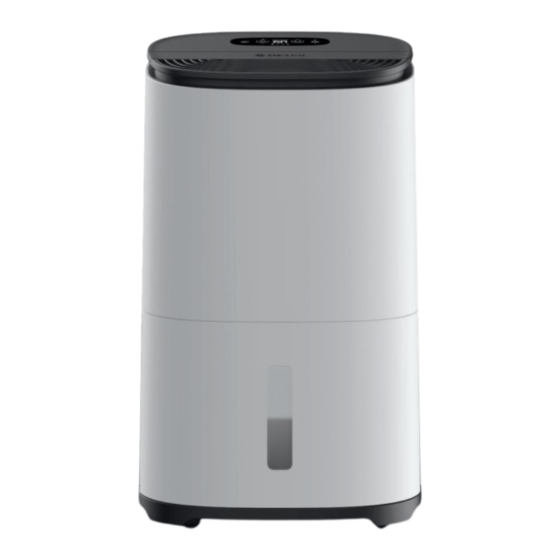

- Page 1 MeacoDry Arete® 10L and 12L Dehumidifier and Air Purifier Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Safety Information
If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt, do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user... - Page 3 Do not puncture either during the units working life or after. At the end of life dispose of following local recycling regulations. • If there is any damage to the dehumidifier then do not use it and contact Meaco or your retailer. • As with all dehumidifier, always keep upright and leave the dehumidifier standing upright for six hours before using it upon receipt.
-
Page 4: Wiring Instructions
GREEN/YELLOW. 4. Always ensure that the cord grip is positioned and fastened correctly. 5. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 5: First Steps
First Steps When you first receive your dehumidifier, it is important you follow the steps below carefully. 1. Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. 2. You should check your dehumidifier and its box and packaging for any transport damage. In case of damage you should inform the sender immediately. - Page 6 What can I use my dehumidifier for? Dehumidifying your whole house Your dehumidifier can be used to maintain an optimum humidity level throughout your house or flat. Moisture in the air from the entire house/flat will migrate towards the dehumidifier, reducing the humidity level.
-
Page 7: Product Identification
Product Identification ® The MeacoDry Arete dehumidifier will come complete with an instruction manual, a H13 HEPA filter, a right-angle adaptor to enable continuous drainage and a set of castors. Front view Control panel Handle Air outlet Water Tank Side view Handle To lift the handle use two hands, one on the left and... - Page 8 Rear view Handle Filter case and dust filter combined Cable Tidy Castors Castor assembly To fit the castors lay the dehumidifier on its back and push the castors into the four holes underneath the dehumidifier. Laying the dehumidifier on its back for a short period of time will not damage the unit. The castors are an optional extra and do not need to be fitted to the dehumidifier.
-
Page 9: Control Panel
Control Panel Smart Humidity Mode Night Mode / / Air Purification Child Lock Power Smart Laundry Mode Button Water Tank Child Lock Dehumidifying Purification Full Indicator Indicator Indicator Indicator When the dehumidifier is first plugged into the mains it will bleep once, no lights will appear on the control panel. - Page 10 Smart Humidity Mode and Night Mode Night mode can be set whilst the dehumidifier is in smart humidity mode by pressing the night mode / child lock button once. The fan speed will be reduced to low; the buttons will not bleep when pressed and all lights on the display will turn off (the night mode indicator will turn off 3 seconds later than the rest of the display).
- Page 11 Smart Laundry Mode and Night Mode Night mode can be set whilst the dehumidifier is in smart laundry mode by pressing the night mode / child lock button once. The fan speed will be reduced to low; the buttons will not bleep when pressed and all lights on the display will turn off (the night mode indicator will turn off 3 seconds later than the rest of the display).
-
Page 12: Water Tank
Water Tank The dehumidifier can be used to collect water in one of two ways: via the water tank or via continuous drainage. For general use in the home customers tend to use the water tank to collect water. For more information on how to use continuous drainage, see pages 13 and 14. -
Page 13: Continuous Drainage
How often will I need to empty the water tank? Customers often ask us how often they will need to empty their dehumidifiers water tank; however, the answer is different for everyone. How much water your dehumidifier collects will depend on several factors including: the humidity level, temperature, application, dehumidifier location, number of people, amount of moisture added to the environment and so on. - Page 14 Step 2: Remove the right-angle adaptor from the Step 1: Remove the water tank. water tank lid and push it onto the spout. The spout is where water drips out of the dehumidifier and is located on the left-hand side. Step 3: Attach the hose to the spout.
- Page 15 Cleaning Always turn off the power and disconnect the main cable before performing maintenance procedures. • Inspect the electrical cord for damage at regular intervals. Cleaning the exterior • Clean the exterior with a soft, dry cloth. If the dehumidifier is extremely dirty, use a mild cleaning agent or a slightly damp cloth.
- Page 16 To insert/replace the HEPA filter place it inside the combined filter case and dust filter, then slide the combined filter case and dust filter into the dehumidifier. • Replacement HEPA filters can be purchased from www.meaco.com. Storage If the dehumidifier will not be used for a long period of time, take the following steps: 1.
-
Page 17: Specifications
Specifications Dimensions (HWD) 472 x 319 x 237 mm 472 x 319 x 237 mm Weight 10.7kg 10.9kg 27°C and 60%rh: 6l / day 27°C and 60%rh: 7.5l / day Extraction Rate 30°C and 80%rh: 10l / day 30°C and 80%rh: 12l / day Noise Level 35 and 38 dB(A) 35 and 38 dB(A) -
Page 18: Troubleshooting
The dehumidifier is in smart laundry mode. See page 10 for more information E1 flashes every 30 seconds on the display Please contact Meaco E2 flashes every 30 seconds on the display Please contact Meaco The environment the dehumidifier is being used L3 slowly flashes on the display in is too warm. - Page 19 The target humidity level is higher than the actual humidity level. Use the smart humidity mode button to reduce the target humidity level The dehumidifier does not dehumidify / collects little water Clean the dust filter and/or replace the HEPA filter.
-
Page 20: Warranty
For the full list of the warranty terms and conditions please visit: www.meaco.com/warranty-terms. To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This dehumidifier has been imported into... - Page 21 The marking below indicates that this product should not be disposed with other household wastes throughout the UK and EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
