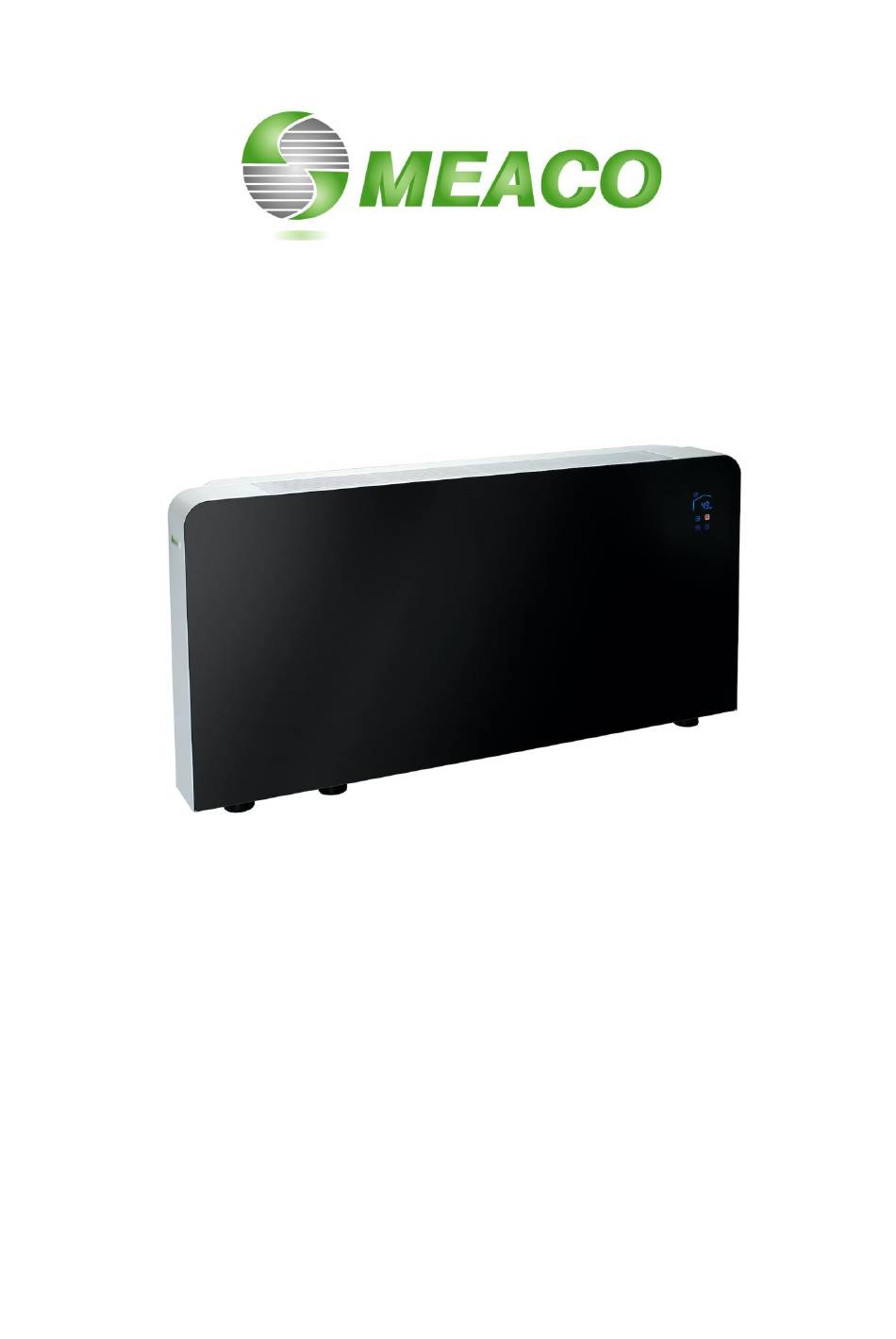

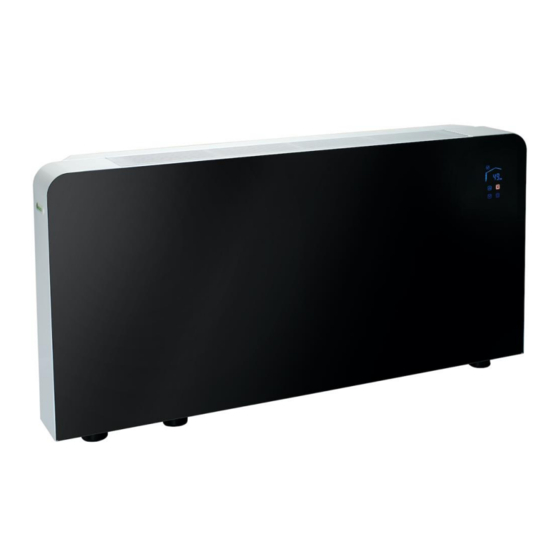

- Page 1 Meaco Wall-Mounted Dehumidifiers Instruction Manual MeacoWall 53B/W, MeacoWall 84B/W and MeacoWall 108B/W Dehumidifiers Please read this instruction manual before using the dehumidifier and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Saftey Information
If these areas become wet for any reason, thoroughly dry them before using the dehumidifier. If in doubt, do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user... - Page 3 Do not puncture either during the units working life or after. At the end of life dispose of following local recycling regulations. • If there is any damage to the unit then do not use it and contact Meaco or your retailer. • As with all dehumidifiers, always keep upright and leave the dehumidifier standing upright for 3-4 hours before using it upon receipt.
-
Page 4: Electrical Installation
ELECTRICAL INSTALLATION --------------------------------------------------------------------------------------------------------------------------------------- 108L Rated Voltage 220-240V~50Hz 220-240V~50Hz 220-240V~50Hz Power Consumption 0.892 1.095 1.700 (kW) Running Current (amps) Start-up Current (amps) • The unit must be installed to a grounded supply in ALL applications. • If the unit is to be installed into a wet area (for example, a swimming pool), please ensure the mains connections meet the criteria set out in Section 602 of BS7671 or other equivalent local regulations (non-UK). -
Page 5: General Advice
GENERAL ADVICE ----------------------------------------------------------------------------------------------------------------------------- ---------- • Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. • After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. •... -
Page 6: Product Identification
PRODUCT IDENTIFICATION ----------------------------------------------------------------------------------------------------------------------------- ---------- Please keep the dehumidifier upright at all times prior to installation. If the dehumidifier is inclined greater than 60 degrees then the dehumidifier should only be turned on 24 hours after it has been installed. -
Page 7: Installation And Transportation
INSTALLATION AND TRANSPORTATION ----------------------------------------------------------------------------------------------------------------------------- ---------- For installation and transportation, the following instructions must be considered: ➢ The air inlet and the air outlet must not be covered whilst the dehumidifier is in operation. ➢ Before moving the dehumidifier, it must be switched off by its ON-OFF switch. The dehumidifier must be disconnected at its fused spur and excess water should be drained. - Page 8 CONTINOUS DRAINAGE ----------------------------------------------------------------------------------------------------------------------------- ---------- This dehumidifier is designed to be connected to a permanent drain via a 16mm hose. Make sure the drain connection is running down hill with no kinks or blockages. As standard, the hose is fitted ready to come out of the right of the dehumidifier as you look at it from behind.
- Page 9 Connect the condensate hose (16mm diameter) and ensure that the water is flowing downhill with no kinks or blockages. You have the choice of fitting the drain on the right or left side. The hose on the right is pre-fitted, if you wish to change to the left, remove the bung from the left and swap it with the hose on the right.
-
Page 10: Control Panel
CONTROL PANEL ----------------------------------------------------------------------------------------------------------------------------- ---------- When the dehumidifier is turned on the display will show 88 and then the program version number for ten seconds. This is to allow the relative humidity sensor to sample the air and to take a reading. The display will dim after 90 seconds of no keys being pressed. - Page 11 SETTING THE RELATIVE HUMIDITY SET POINT Use the UP and DOWN arrows to set the desired target relative humidity level. CHECKING THE RELATIVE HUMIDITY SET POINT Press either the UP or DOWN arrow once, to check what the target relative humidity level has been set to.
-
Page 12: How It Works
HOW IT WORKS ----------------------------------------------------------------------------------------------------------------------------- ---------- If the dehumidifier is dehumidifying, the following symbol will be shown on the control panel: The dehumidifier will continue to dehumidify until the relative humidity is 5%rh below the target and stays there for at least 3 minutes. When the relative humidity increases 5%rh above the target and stays there for 30 seconds, then the unit will start to dehumidify again. -
Page 13: Maintenance
MAINTENANCE ----------------------------------------------------------------------------------------------------------------------------- ---------- The power supply must be disconnected before the following tasks are carried out. CLEANING THE FILTER To ensure that your dehumidifier has a long operational life the filter must be cleaned a minimum of once every two weeks. A blocked filter will put pressure on the fan and cause damage to the fan motor. -
Page 14: Electrical Connections
ELECTRICAL CONNECTIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- This dehumidifier was designed to operate in a 220-240V~50Hz electrical installation. Make sure that the electric sockets are connected to earth and that all safety precautions are taken. Installations in a wet area must comply with local laws. We recommend electrical installation and servicing by a qualified electrician only. - Page 15 108L Temperature Range +10°C to +32°C +10°C to +32°C +10°C to +32°C Relative Humidity 40%rh to 99%rh 40%rh to 99%rh 40%rh to 99%rh Range Rated Voltage 220-240V~50Hz 220-240V~50Hz 220-240V~50Hz Air Flow (m³/h) Noise Level dB(A) Power Consumption 0.892 1.095 1.700 (kW) Running Current (amps)
-
Page 16: Performance Curves
PERFORMANCE CURVES ----------------------------------------------------------------------------------------------------------------------------- ---------- MEACOWALL 53B/W DEHUMIDIFIER MEACOWALL 84B/W DEHUMIDIFIER MEACOWALL 108B/W DEHUMIDIFIER... -
Page 17: Troubleshooting
Move the dehumidifier to a warmer Conditions are below +10°C. Unit does not space. defrost Defective bypass relay valve. Contact Meaco. Codes P1 to P8 If the unit still does not work, contact &/or E0 appear Turn off for one hour and then restart. Meaco. - Page 18 CHEMICALS ----------------------------------------------------------------------------------------------------------------------------- ---------- This dehumidifier is designed to be used in clean air atmosphere free from corrosive chemicals. The use of chlorine is common in swimming pools and at safe levels will not harm the dehumidifier, but excess levels will damage the dehumidifier and invalidate the warranty. Abnormal levels of chlorine would be anything above 2ppm and/or a super-chlorination above a maximum of 30ppm over a 24-hour period.
-
Page 19: Warranty And Customer Service
For the full list of the warranty terms and conditions please visit: www.meaco.com/warranty-terms. To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This dehumidifier has been imported into... - Page 20 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
