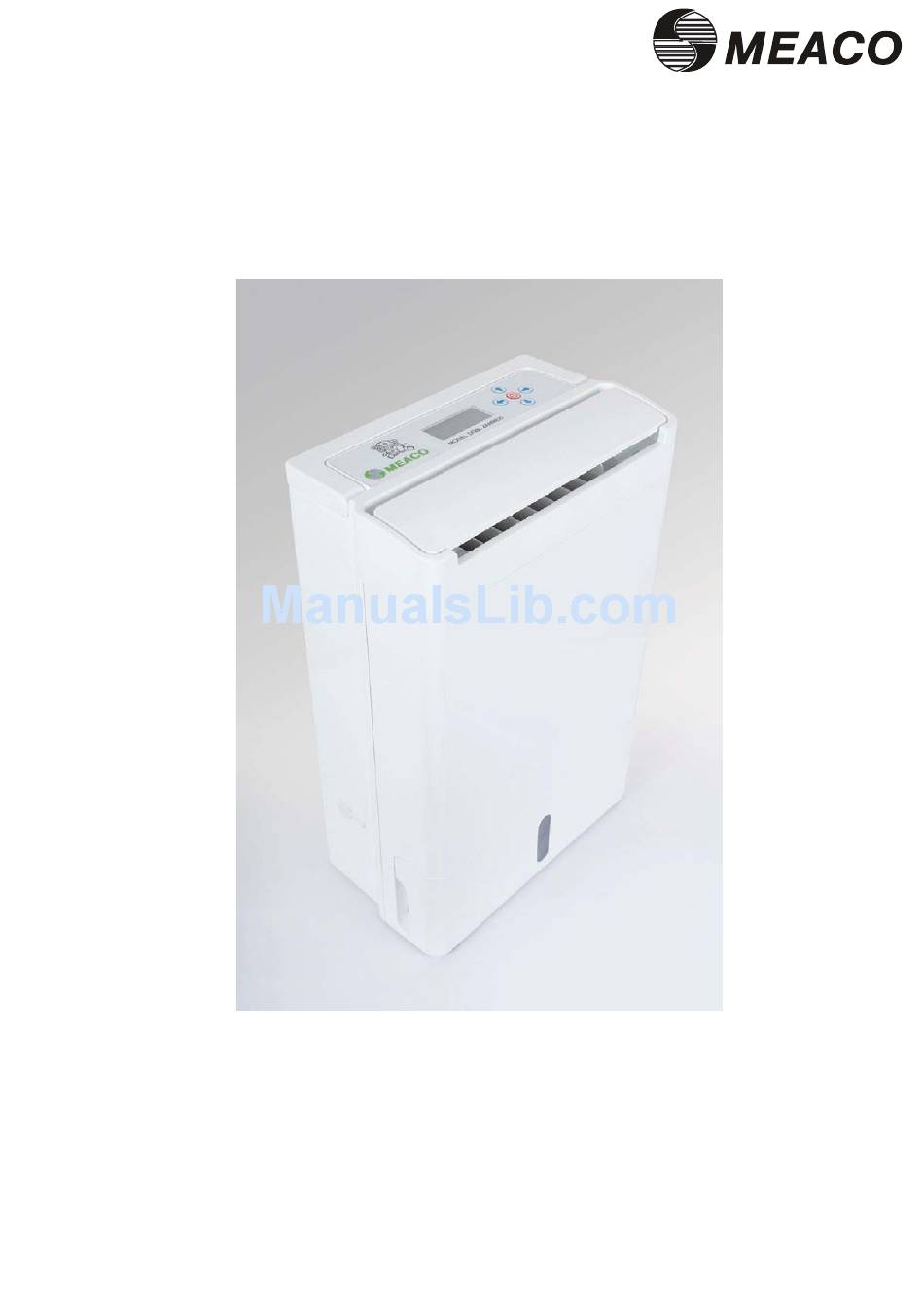

- Page 1 Meaco DD8L Zambezi Dehumidifier Thank you for choosing Meaco, we really do appreciate it INSTRUCTION MANUAL [EN] DD8L Zambezi...
-
Page 2: Safety Information
Do not store or operate outdoors. If electrical wiring or components become wet, thoroughly dry them before using the unit. If in doubt do not use the dehumidifier and consult a qualified electrician or a Meaco approved engineer. Keep Air Intakes Clear: Do not clog or block the air intakes by placing the dehumidifier too close to curtains, walls or anything that will restrict the air inlet. - Page 3 Turning off: Never unplug the power cord without press the "Power" key to off first, as this could damage the unit. Never unplug the dehumidifier before the fan has stopped blowing. Always unplug the unit when not in use or moving location. To disconnect from the power supply, grip the plug and pull from the power socket.
-
Page 4: General Advice
1. GENERAL ADVICE Before putting your dehumidifier into operation for the first time, the instruction manual should be studied carefully. After receiving the unit, you should check your dehumidifier for any transport damage. In case of damage, you should inform the sender immediately. - Page 6 5. WATER COLLECTION This dehumidifier contains a built-in tank where the water will automatically drip into. When the bucket is full the dehumidifier will turn off so that it cannot overflow. Bucket full, time to empty the dehumidifier When the water collection tank is full the dehumidifier will bleeper will sound ten times and Zambezi will turn off.
- Page 7 2. Remove the bucket, push back the drip stopper and push the hose onto the water outlet. 3. Reinsert the bucket and make sure that the hose runs downhill. If you find that the water is flowing back into the tank but the hose is running perfectly downhill with none of the above problems then make a 4mm diameter hole in the top of the hose 30mm from the dehumidifier to allow air into the top of the hose and to balance out the air pressure imbalance that is stopping the water from flowing.
-
Page 10: Off Timer
The above is all you need to do for day to day operation. The current relative humidity and temperature within the room is displayed at the bottom left of the display. Using your dehumidifier – Advanced options Off timer Press the Left or Right button to move to the hours setting on the top row. Use the Up or Down arrow to select your preferred countdown time. -
Page 11: Setting The Clock
Anti-Bacterial, anti-germs, anti-mould spores Ioniser Press the Left or Right button to move to the Anti-bacterial Ioniser setting on the middle row. Use the Up or Down arrow to select On or Off as required. To save press the Left or Right button to move to the next option or Enter to finish. Ioniser Off The Zambezi Ioniser is not the same as those found on other desiccant dehumidifiers which just remove dust from the air. -
Page 12: Child Lock
Child Lock Press and hold the Left or Right buttons at the same time for three seconds to turn the Child Lock on. Press and hold the same buttons for three seconds to turn the function off. Using your dehumidifier – Other functions and Settings Happy Zambezi Happy Zambezi appears on the display when the machine is dehumidifying and water is being collected. -
Page 13: Energy Consumption
Meaco Control Logic Zambezi benefits from the unique Meaco Control Logic that makes him a much better dehumidifier. If you select one of the humidistat options between 40 – 70%rh then Meaco Control logic will automatically work. When the target relative humidity has been reached the dehumidifier will stop drying the air but the fan will continue to run for 10 more minutes. -
Page 14: Cleaning
Zambezi is unique in that you are able to clear blockages yourself without the need to refer back to your supplier or Meaco. Remove the bucket and you will see in the top of the recess one black drain flap to the right of the drain and one black screw bung in the centre. - Page 15 45/350/660watts 358x200x548mm 7.8Kgs 9Kgs 41/45/50dB 6X10 m³ 0 0.5ppm 250V/10A...
-
Page 16: Troubleshooting And Fault Codes
Run the dehumidifier in Laundry mode for two days to from the dehumidifier lubrication. increase the lubrication, if fault persists then call Meaco. Negative air pressure in the room is pulling the water back into the dehumidifier overflow. Insert a 4mm hole... -
Page 17: Warranty And Customer Service
To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, call Meaco and we will be happy to help. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 18 Meaco are specialists in dehumidifiers and would welcome your comments and questions on this dehumidifier. If you do develop a fault within the first year then please do call us and if we cannot fix the problem over the phone we will be happy to collect the dehumidifier from you at our expense and repair or replace as appropriate.
