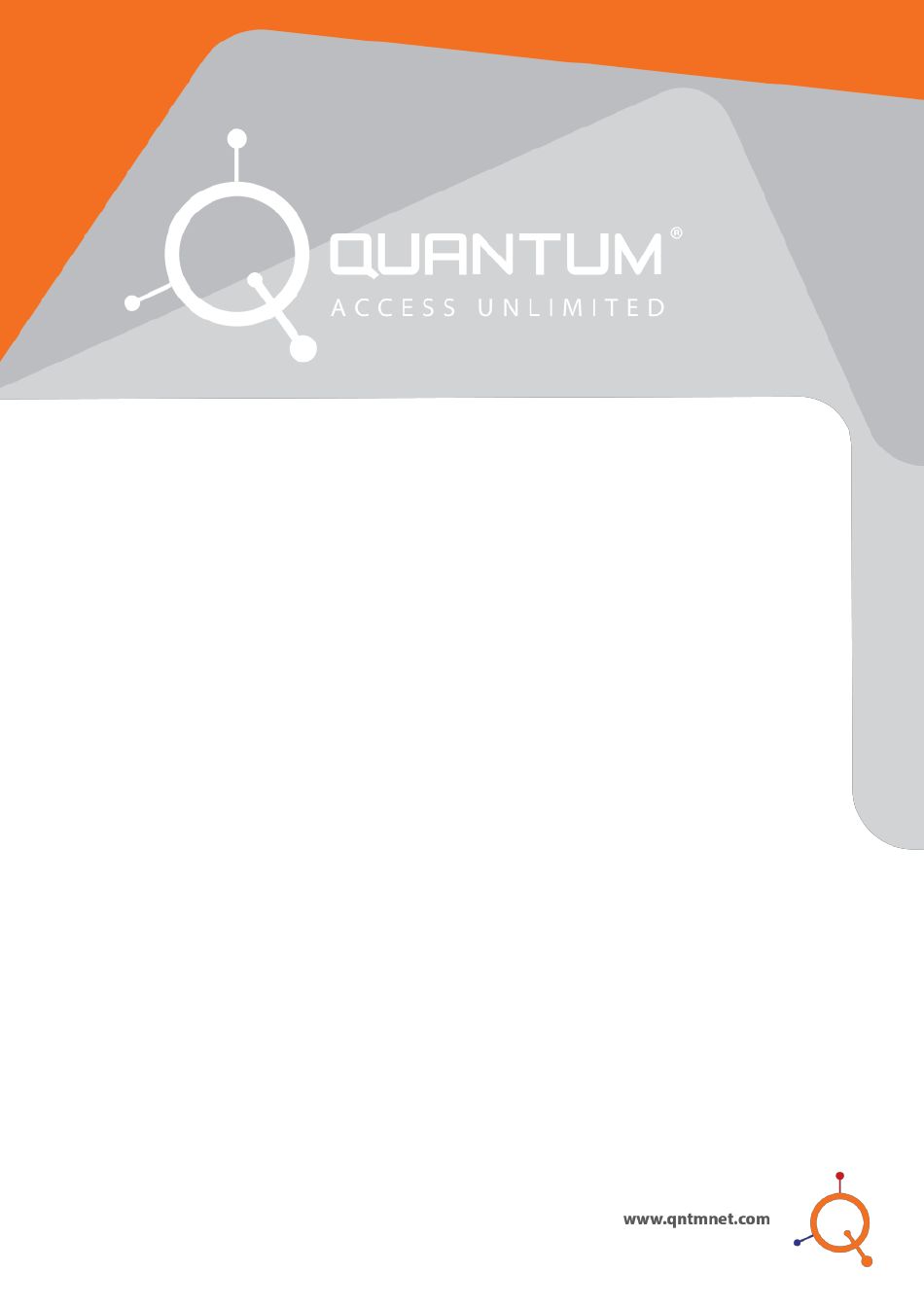

  • Page 1 Quick Setup Guide Model: QN-I-220...
  • Page 2 Copyright Information Copyright & trademark specifications are subject to change without prior notice. Copyright © 2018 Quantum Networks (SG) Pte. Ltd. All Rights Reserved. Quantum Networks & the logo are trademarks of Quantum Networks (SG) Pte. Ltd. Other brands or products mentioned may be trademarks or registered trademarks of their respective owners.

  • Page 3: Table Of Contents

    Step 4 - Access Point Quick Setup in Standalone Mode ..........8 Step 5 - Access Point Quick Setup in Cloud Controlled Mode ........12 Step 6 – Create New Account on Quantum RUDDER ..........16 Reset Access Point to Factory Defaults ................. 17 Access Point Default Login Detail ...................

  • Page 4: Glossary

    This Quick Setup Guide provides step-by-step instructions on how to set up Quantum Networks Access Point. After completing the steps described in this Guide, you will be able to install the Access Point (AP) on site and provide wireless network access to users.

  • Page 5: Before You Begin

    Before You Begin Your Quantum Networks’ Access Point can work in “Standalone Mode” or can be managed by “Cloud Controller”. To manage Access Point by “Cloud Controller”, please follow step 5 first and then step 1. For “Standalone Mode”, continue with step 1.

  • Page 6: Step 1 - Basic Setup

    Basic Setup Step 1 -  Connect WAN port of the Access Point to network with internet access.  You should see a new wireless network with SSID QN_XX:XX (where XX:XX are last four digits of Access Point MAC Address). ...

  • Page 7: Step 3 - Setting Up Device Ip Address

    o Click Change Firmware to update firmware if required. Select the firmware file from respective location and update. Figure 3 Step 3 - Setting Up Device IP Address  Click Start Configuration (Refer Figure1).  Configure IPv4 by selecting required option DHCP, Static or PPPoE and click Next. Figure 4...

  • Page 8: Step 4 - Access Point Quick Setup In Standalone Mode

    Management Mode Quantum Networks’ Access Point can be configured in two modes: Standalone Independent management of each Access Point Cloud Controlled Centralized management of Access Points using Quantum RUDDER Step 4 - Access Point Quick Setup in Standalone Mode ...
  • Page 9 iii. Review the Configuration Summary. Click Reconfigure if any changes are required or click Finish to complete the configuration. Figure 6...
  • Page 10 Router Select option Router and click Next. Configure WLAN (SSID) and Local subnet parameters and click Next. Figure 7 Parameter Value WLAN Country Select country Timezone Select timezone WLAN Name Define name for the network SSID Define visible wireless network name Password Configure passphrase for SSID Local Subnet...
  • Page 11 iii. Review the Configuration Summary. Click Reconfigure if any changes are required or click Finish to complete the configuration. Figure 8 Click Reconfigure if any changes required or click Finish to complete the Configuration.

  • Page 12: Step 5 - Access Point Quick Setup In Cloud Controlled Mode

    Step 5 - Access Point Quick Setup in Cloud Controlled Mode  Select “Management Mode” as “Cloud Controlled”, enter Quantum RUDDER login credentials and click “NEXT”. (If you do not have an account on Quantum RUDDER, please refer Step 6) ...
  • Page 13 Figure 10 Click Reconfigure if any changes required or click Finish to complete the Configuration.
  • Page 14 Router Select Operation Mode as a Router and click Next. Configure WLAN (SSID) and Local subnet parameters and click Next. Figure 11 Parameter Value WLAN Name Define wireless network name SSID Define visible wireless network name Passphrase Configure passphrase for SSID Local Subnet IP Address LAN IP address.
  • Page 15 Figure 12 Review the Configuration Summary. Click Reconfigure if any changes are required or click Finish to complete the configuration.

  • Page 16: Step 6 - Create New Account On Quantum Rudder

    Click “Create New Account” to sign up for a new account. Figure 13  Follow the steps as guided on screen for Registration.  Verify Quantum RUDDER account from registered email id.  Your Account on Quantum RUDDER (Quantum Networks’ Cloud Controller) is now ready to use.

  • Page 17: Reset Access Point To Factory Defaults

    Access Point Default Login Detail User Name: As Defined while creating account Password: Auto Generated Password will be sent to registered email on Quantum RUDDER. If you encounter problems while installing or using this product, please browse www.qntmnet.com for: ...

  • Page 18: Fcc Statement

    FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that cause undesired operation.
