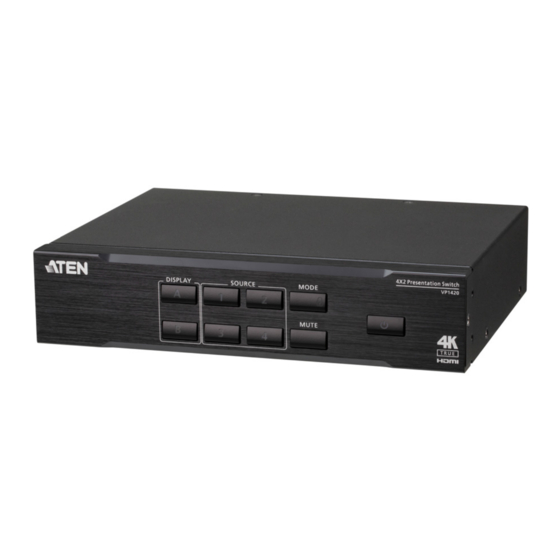

- Page 1 4 x 2 True 4K Presentation Matrix Switch VP1420 / VP1421 User Manual www.aten.com...
-
Page 2: Emc Information
VP1420 / VP1421 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VP1420 / VP1421 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
Make sure that all of the items are present and in good order. If anything is missing or was damaged in shipping, please contact your dealer for further assistance. VP1420 1 VP1420 4 x 2 True 4K Presentation Matrix Switch 1 IR Receiver 1 IR Remote Control ... -
Page 5: Table Of Contents
VP1420 ........ - Page 6 Audio Output ......... 39 Audio Input (VP1420) ........39 Audio Input (VP1421) .
- Page 7 VP1421 Audio Output Settings ......72 VP1420 Audio Input Settings ....... 74 VP1421 Audio Input Settings .
- Page 8 VP1421 Audio Output Settings ......92 VP1420 Audio Input Settings ....... 94 VP1421 Audio Input Settings .
-
Page 9: Vp1420
Chapter 5, CLI Commands provides details on the functions and RS-232 commands that you can use to control the VP1420 / VP1421 using a serial controller. Chapter 6, Video Presentation Control App provides details on remotely configuring system settings via the ATEN Video Presentation Control App. -
Page 10: Conventions
Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 11: Introduction
(VP1420), HDBaseT Extender (VP1421), and audio DSP (VP1421) into one compact device. With the four analog/digital inputs to 2 HDMI True 4K outputs (VP1420) / 1 HDMI & 1 HDBaseT outputs (VP1421), the VP1420/ VP1421 is designed to boost the efficiency and impact of professional presentations. -
Page 12: Features
(RS-232 and Telnet), and web-based GUI through Ethernet Supports standby mode for power saving and fast waking up Consumer Electronics Control (CEC) support Built-in contact in and LED out ports for keypad control using the ATEN VPK104 Contact Closure Remote Pad... - Page 13 VP1420 / VP1421 User Manual ATEN Control Box Media Player HDMI Audio VPK104 Contact Closure Remote Pad IR Recevier Active Speaker RS-232 Network Internet/ TV Box Laptop Blu-ray Player...
-
Page 14: Vp1421
Chapter 1. Introduction VP1421 Analog/Digital AV Matrix Supports 4 multi-format inputs – 2 HDMI, 1 HDBaseT, and 1 VGA inputs 1 HDMI and 1 HDBaseT outputs Audio embedding – stereo audio can be embedded into the display output or separated to stereo or optical audio outputs ... - Page 15 Long-distance transmission – transmit digital AV signal, bi-directional RS-232, and IR control signals up to 140 m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables Note: This is achieved using the HDBaseT In and HDBaseT Out ports on the VP1421, each extending the transmission up to 70 m.
-
Page 16: Planning The Installation
Chapter 1. Introduction Planning the Installation Required Equipment Prepare the following equipment before installing the VP1420 / VP1421. VP1420 Up to 3 input devices equipped with HDMI and 1 input device equipped with a VGA port Up to 2 display devices each equipped with an HDMI port VP1421 ... -
Page 17: Optional Equipment
1 Ethernet cable to connect the VP1421 to a network switch for remote management via the web console 1 host computer, ATEN Controller, or third-party control system that supports RS-232 or Telnet 1 ATEN VPK104 Contact Closure Remote Pad for convenient operation ... - Page 18 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 19: Hardware Setup
Chapter 2 Hardware Setup 1. Please review the safety information regarding the placement of this device in Safety Instructions, page 99. 2. Do not power on the VP1420 / VP1421 until all the necessary hardware is connected. Hardware Overview VP1420... -
Page 20: Rear View
Chapter 2. Hardware Setup Rear View Component Description Grounding Grounds the VP1420 to prevent damages from Terminal power surge or static electricity. Ethernet Port Connects to a network switch via an Ethernet cable to allow remote operation via the web console. -
Page 21: Vp1421
Press a pushbutton to select a source for the Pushbuttons focused display. The pushbutton for the selected source lights green. Power Pushbutton Used to power on/off the VP1420, or enable/ disable the standby mode. For details, see Power LED Indication, page 29. Mode Pushbutton ... -
Page 22: Rear View
Chapter 2. Hardware Setup Rear View 1 2 3 15 16 Component Description Ethernet Port Connects to a network switch via an Ethernet cable to allow remote operation via the web console. IR Receiver Port Connects to an IR receiver to receive IR signals from the IR remote control. - Page 23 VP1420 / VP1421 User Manual Component Description 15 Output/Display B Connects to an Rx device which in turn connected to a display device at a distance. 16 Grounding Grounds the VP1421 to prevent damages from Terminal power surge or static electricity.
-
Page 24: Ir Remote Control
Chapter 2. Hardware Setup IR Remote Control To operate the VP1420 / VP1421, insert the supplied IR Receiver to the IR Receiver Port on back panel of the device. No. Buttons Description On/Off Used to power on the VP1420 / VP1421 and enable/disable the standby mode. -
Page 25: Vpk104
VP1420 / VP1421 User Manual VPK104 Front View Component Description Source Selection Press a source selection button to put the source Buttons onto the set display*. The number on each button represents the source number at the rear of the VP1420 / VP1421. -
Page 26: Rear View
48.5mm Component Description LED In Port Connects to the LED Out port on the VP1420 / VP1421 to transmit and receive LED signals. Contact Out Port Connects to the Contact In port on the VP1420 / VP1421 to transmit and receive operation signals. -
Page 27: Mounting
VP1420 / VP1421 User Manual Mounting Rack Mount The VP1420 / VP1421 can be mounted on a 19” (1U) system rack. To conveniently access the front panel for local configuration and operation, mount the unit in a rack with the front panel facing outward. -
Page 28: Under Desk Mount
Chapter 2. Hardware Setup Under Desk Mount The VP1420 / VP1421 can be installed under a desk. To conveniently access the front panel for local configuration and operation, install the unit with the front panel facing forward. Note: The mounting kit required for this installation is not included in the package. -
Page 29: Installation
VP1420 / VP1421 User Manual Installation VP1420 Follow the steps below to safely install sources, displays, and other equipment to the VP1420. Media Player Medi i a Player Playe Internet/ 1. Use a grounding wire to ground the unit by connecting one end to the grounding terminal, and the other end to a suitable grounded object. - Page 30 8. (Optional) To allow access to the web interface, use an Ethernet cable to connect the unit’s Ethernet port to a network switch. 9. (Optional) To control the VP1420 using an IR remote control, connect the supplied IR receiver to the IR Receiver port.
-
Page 31: Vp1421
VP1420 / VP1421 User Manual VP1421 Follow the steps below to safely install sources, displays, and other equipment to the VP1421. Front View Media Player Medi i a Player Playe Play Rear View Internet/ VE802R VE802T 1. Use a grounding wire to ground the unit by connecting one end to the grounding terminal, and the other end to a suitable grounded object. - Page 32 Terminal Blocks. 7. (Optional) To configure the unit’s settings via RS-232 commands, connect a hardware controller, e.g. ATEN Control Box, to the RS-232 Serial Port using the provided 3-pole Terminal Block. 8. (Optional) To allow access to the web interface, use an Ethernet cable to connect the Ethernet port of the unit to a network switch.
-
Page 33: Vpk104
VP1420 / VP1421 User Manual VPK104 Follow the steps below to safely install the Remote Pad to the VP1420 / VP1421. Before you start, prepare 2 screws, 1 wall box, and some core wires. 1. (Optional) Prepare your installation site and install a Wall Box. - Page 34 Chapter 2. Hardware Setup 7. Cover the unit with the faceplate. Wall Box (not included) Faceplate...
-
Page 35: Local Operation
To ensure smooth operation using the IR remote control, use the IR remote control within the effective range (6 m) and keep a clear line-of-sight between the remote control and the IR receiver connected to the VP1420 / VP1421. Switching Sources To switch the video source on a display: 1. -
Page 36: Display Mode
Chapter 3. Local Operation Display Mode Understanding Display Mode The VP1420 / VP1421 supports the following display modes: Matrix mode ( ): When enabled, the AV sources can be configured separately, capable of showing different outputs. Mirror mode ( ): When enabled, display B uses the AV source assigned for display A and shows identical content. -
Page 37: Audio Settings
VP1421, use the MIC knob on the front panel. To mute all audio outputs (displays and speaker): For VP1420, press the Mute pushbutton/button. For VP1421, press the Volume knob on the front panel or press the Mute button on the IR remote control. -
Page 38: Panel Lock
Chapter 3. Local Operation Panel Lock To prevent accidental tampering of system settings via the front panel, you can lock the panel using the Mode pushbutton or set up an idle time for an auto lock via the web console (General > Panel Auto Lock). Refer to the table below for how to enable/disable the panel lock and the corresponding LED indication. -
Page 39: Power Led Indication
User Manual Power LED Indication The power pushbutton is equipped with an LED that indicates the power status of the VP1420 / VP1421. Refer to the table below for the status and supported tasks for each LED indication. LED Indication... - Page 40 Chapter 3. Local Operation This page is intentionally left blank.
-
Page 41: Remote Operation
192.168.0.1 HTTP Port Note: If the VP1420 / VP1421 is connected to a router that supports DHCP, a dynamic IP address will be assigned to the VP1420 / VP1421 as soon as it connects to the network. Look up the IP address by sending a read command via an RS-232 serial controller. -
Page 42: Supported Web Browsers
Chapter 4. Remote Operation Supported Web Browsers The VP1420 / VP1421 supports access to its web UI through the following web browsers and operating systems: Operating System Web Browser Supported Version Windows 10 x 64 Edge 40.15063.674.0 Windows 10 x 64 Firefox 64.0... -
Page 43: Logging In The Web Console
VP1420 / VP1421 User Manual Logging In the Web Console 1. In a web browser, type the IP address of the VP1420 / VP1421. This screen appears. 2. Type the username administrator and the password. 3. Click Log In. The main screen appears. -
Page 44: The Main Screen
Chapter 4. Remote Operation The Main Screen The VP1420 / VP1421 defaults to the main screen after logging in. Refer to the illustration and table below for an overview of the web console. Element Description Click the ATEN logo to visit ATEN’s official website. -
Page 45: General Settings
VP1420 / VP1421 User Manual General Settings The General page includes settings such as device name, panel lock, EDID, and login password. To access the general settings, log in the web console and the screen defaults to the page. - Page 46 Basic Name: Type a name for the VP1420 / VP1421. A valid name should be within 30 characters in length and contains no special characters. This name appears on the web console immediately after the model name: ...
- Page 47 Target of Contact Closure: Defines the display that a connected contact closure controls. HDCP Mode: Sets the HDCP of the VP1420 / VP1421. Change Password Administrator:The administrator account has access to all settings in the web console.
-
Page 48: Audio & Video Settings
Chapter 4. Remote Operation Audio & Video Settings Audio Control To access the audio control page, log in the web console, and then go to Video & Audio > Audio. -
Page 49: Audio Output
VP1421: Sets the volume of display B. Audio Out VP1420: Mute or unmute the independent speaker connected to the Audio Out port. VP1421: Sets the volume of the independent speaker connected to the Audio Out port. -
Page 50: Audio Input (Vp1421)
Chapter 4. Remote Operation Audio Input (VP1421) VGA In 1: Sets the volume of the VGA source. HDBaseT In 2: Sets the volume of the HDBaseT source. Source: Sets the audio source for the HDBaseT source. To use the audio source that comes along with the video, select Digital Audio. -
Page 51: Video Control
VP1420 / VP1421 User Manual Video Control Use the video control page to assign video sources and configure video settings. To access the video control page, log in the web console, and then go to Video & Audio > Video. -
Page 52: Apply Vs. Auto Apply
For example, if sources are connected to the VP1420 / VP1421 in the order of port 2, port 3, port 4 and then port 1, and that Display A is switched to port 3, when the source (port 3) is unplugged, Display A will automatically switch to port Apply vs. -
Page 53: System Settings
In the Support and Download tab, download a firmware file. 2. Log in the VP1420 / VP1421’s web console, and then go to System > Maintenance. 3. In the Firmware Upgrade section, click Browse File to select the firmware file that you downloaded, and then click Upgrade. -
Page 54: Backing Up System Settings
You can back up and export the VP1420 / VP1421’s configurations. This backup will not include the username and password settings. 1. Log in the VP1420 / VP1421’s web console, and then go to System > Maintenance. 2. Click Back Up. -
Page 55: Network Settings
IP address, subnet mask, gateway, and DNS to the VP1420 / VP1421. Manual: Select this option for the VP1420 / VP1421 to use a fixed IP address. Specify the IP address, subnet mask, and default gateway. Browser ... - Page 56 Chapter 4. Remote Operation This Page Intentionally Left Blank...
-
Page 57: Cli Commands
5. At the login prompt, type the login username and password for the VP1420 / VP1421. 6. When a session is established with the VP1420 / VP1421, you can control and configure the VP1420 / VP1421 via RS-232 commands. For more information on commands, see: ... -
Page 58: Connecting To The Vp1420 / Vp1421 Via Rs-232
Stop bits: 1 Parity: None Flow control: None 4. When a session is established with the VP1420 / VP1421, you can control and configure the VP1420 / VP1421 via RS-232 commands. For more information on commands, see: ... -
Page 59: Command Syntax
VP1420 / VP1421 User Manual Command Syntax The general form of a command is: command parameter<argument> {one|two|three} Notation Description The name of the command is shown in bold. command Indicates the name of the parameter. parameter Indicates the name of the value or the information that the user <argument>... -
Page 60: Command List
Telnet or RS-232. For details on establishing a Telnet or RS-232 session to the VP1420 / VP1421, see Connecting to the VP1420 / VP1421 via Telnet, page 47 and Connecting to the VP1420 / VP1421 via RS-232, page 48. -
Page 61: Displaymode
Function Updates an RS-232 controller connected to the VP1420 / VP1421 when operations are made to the VP1420 / VP1421 via its front panel, web console, or telnet. Execute this function to keep the RS-232 controller in sync with the VP1420 / VP1421. -
Page 62: Edid
Set the VP1420 / VP1421’s EDID mode to follow the display connected to the output port A. remix: Set the VP1420 / VP1421’s EDID mode to remix with which the system sends the optimum EDID of the connected displays to the sources. -
Page 63: Power
VP1420 / VP1421 User Manual o*: Indicates all output ports. On: Mute the specified input/output ports. Off: Unmute the specified input/output ports. Example mute o01 off read Functions and Syntax Syntax Function Displays the video and audio input assigned to... -
Page 64: Reset
Chapter 5. CLI Commands reset Function Resets the VP1420 / VP1421 to its default settings. Syntax reset scaling Functions and Syntax Syntax Function Reads the scaler settings on scaling output A and B. scaling o<output_port> {auto|off} Configures the specified output port to Auto or Off. -
Page 65: Swmode
VP1420 / VP1421 User Manual Function Switches the specified source on the specified display. Syntax sw {o<output_port>|o*} {i<input_port>|i+|i-} Parameters i<input_port>: Specifies an input port in two digits. +: Indicates the next input port. -: Indicates the previous input port. -
Page 66: Volume
Chapter 5. CLI Commands volume Functions and Syntax Syntax Function Indicates the Total Volume and the volume volume for each input and output port. Configures the volume of a specified volume input/output port. This command is {i<input_port>|i*} only supported by the VP1421. v<volume_number>... -
Page 67: Video Presentation Control App
Chapter 6 Video Presentation Control App Overview The ATEN Video Presentation Control App is designed to help you conveniently configure system settings to your VP1420 / VP1421 device. Supported Systems The ATEN Video Presentation Control App supports the following mobile... -
Page 68: Ios Version
Chapter 6. Video Presentation Control App iOS Version Main Page When logged in, the ATEN Video Presentation Control App defaults to the scanning page. Refer to the table below for an overview of the functions on each tab. Component Description... -
Page 69: Info
VP1420 / VP1421 User Manual Component Description Load a QR Tap this icon to upload a QR code image to join a meeting. code Image Info Below screen is what the info page looks like. It shows the version, privacy policy and contact us. -
Page 70: Logging In To The Control Panel
Chapter 6. Video Presentation Control App Logging in to the Control Panel There are three ways to log in to the control panel through our ATEN Video Presentation Control App on VP1420 / VP1421. When the App is opened, it automatically scans for the device and available rooms to access. - Page 71 3. Enter the username and password, then tap Login. Note: For security purposes, it is required to change the password from the VP1420 / VP1421 web console if you are logging in for the first time. For details, see General Settings, page 35.
-
Page 72: Logging In To The Control Panel Via Manually Connect
Logging in to the Control Panel via Manually Connect To manually connect and log in to the control panel, follow the steps below. 1. Open the ATEN Video Presentation Control App and tap Manually Connect. 2. Enter the IP address of the VP1420 / VP1421 and tap Connect. - Page 73 3. Enter the username and password, then tap Log in. Note: For security purposes, it is required to change the password from the VP1420 / VP1421 web console if you are logging in for the first time. For details, see General Settings, page 35.
- Page 74 7. Enter the username and password, then tap Log in. Note: For security purposes, it is required to change the password from the VP1420 / VP1421 web console if you are logging in for the first time. For details, see General Settings, page 35.
-
Page 75: Leaving The Meeting
VP1420 / VP1421 User Manual Leaving the Meeting To leave the control panel, follow the steps below. 1. Press the from your main screen. 2. A warning screen appears, then tap Leave. -
Page 76: Enabling Standby Mode
Chapter 6. Video Presentation Control App Enabling Standby Mode To enable standby mode, follow the steps below. 1. Press the from your main screen. 2. A warning screen appears, then tap OK. -
Page 77: Checking The Firmware Version
VP1420 / VP1421 User Manual Checking the Firmware Version To check the firmware version, follow the steps below. 1. Press the from your main screen. 2. Below screen appears. -
Page 78: Video Panel
Chapter 6. Video Presentation Control App Video Panel Switching a Source for a Display To switch a source for a display, follow the steps below. 1. To switch Source 2 to Display A. From the display page, drag the Source to Display A. -
Page 79: Display A Settings
VP1420 / VP1421 User Manual Display A Settings To configure display settings for the display A, follow the steps below. 1. Tab from the top right corner of the display A. 2. The below screen appears. Tool Description Tap to enable or disable the CEC. The Consumer Electronics... - Page 80 Last: Automatically switch the display to the previous available source based on the order of source connection. For example, if sources are connected to the VP1420 / VP1421 in the order of port 2, port 3, port 4 and then port 1, and that Display A is switched to port 3, when the source (port 3) is unplugged, Display A will automatically switch to port 2.
-
Page 81: Display B Settings
VP1420 / VP1421 User Manual Display B Settings To configure display settings for the display B, follow the steps below. 1. Tab from the top right corner of the display B. 2. The below screen appears. Tool Description Tap to enable or disable the CEC. The Consumer Electronics... -
Page 82: Audio Panel
Chapter 6. Video Presentation Control App Audio Panel VP1420 Audio Output Settings VP1421 Audio Output Settings... - Page 83 Audio Out port on the VP1421 and tap to mute or unmute. Source Sets the audio source for the Follow independent speaker connected to Display A the Audio Out port of the VP1420 / Follow VP1421. Display B Audio In...
-
Page 84: Vp1420 Audio Input Settings
Chapter 6. Video Presentation Control App VP1420 Audio Input Settings VP1421 Audio Input Settings... - Page 85 (connected to the Audio In port). select Embedded Audio In. HDMI IN 2 VP1420 only: Sets the volume of Increase (+) the HDMI 2 source connected to Decrease (-) the VP1420 and tap to mute ...
- Page 86 HDMI 3 source connected to the Mute VP1421 and tap to mute or unmute. Source VP1420: Sets the audio source for Digital Audio the HDMI 3 source connected to Embedded the VP1420. Audio In VP1421: Sets the audio source for the HDMI 3 source connected to the VP1421.
- Page 87 VP1420 / VP1421 User Manual System Settings Description Note: Default settings are indicated in bold. AUDIO In VP1421 only: Sets the volume of Increase (+) the independent audio source Decrease (-) connected to the Audio In port on ...
-
Page 88: Android Version
Chapter 6. Video Presentation Control App Android Version Main Page When logged in, the ATEN Video Presentation Control App defaults to the scanning page. Refer to the table below for an overview of the functions on each tab. Component Description... -
Page 89: Info
VP1420 / VP1421 User Manual Component Description Load a QR Tap this icon to upload a QR code image to join a meeting. code Image Info Below screen is what the info page looks like, it shows the version, privacy policy and contact us. -
Page 90: Logging In To The Control Panel
Chapter 6. Video Presentation Control App Logging in to the Control Panel There are three ways to log in to the control panel through our ATEN Video Presentation Control App on VP1420 / VP1421. When the App is opened, it automatically scans for the device and available rooms to access. - Page 91 3. Enter the username and password, then tap Log in. Note: For security purposes, it is required to change the password from the VP1420 / VP1421 web console if you are logging in for the first time. For details, see General Settings, page 35.
-
Page 92: Logging In To The Control Panel Via Manually Connect
Logging in to the Control Panel via Manually Connect To manually connect and log in to the control panel, follow the steps below. 1. Open the ATEN Video Presentation Control App and tap Manually Connect. 2. Enter the IP address of the VP1420 / VP1421 and tap Connect. - Page 93 3. Enter the username and password, then tap Log in. Note: For security purposes, it is required to change the password from the VP1420 / VP1421 web console if you are logging in for the first time. For details, see General Settings, page 35.
- Page 94 7. Enter the username and password, then tap Log in. Note: For security purposes, it is required to change the password from the VP1420 / VP1421 web console if you are logging in for the first time. For details, see General Settings, page 35.
-
Page 95: Leaving The Meeting
VP1420 / VP1421 User Manual Leaving the Meeting To leave the control panel, follow the steps below. 1. Press the from your main screen. 2. A warning screen appears, then tap Leave. -
Page 96: Enabling Standby Mode
Chapter 6. Video Presentation Control App Enabling Standby Mode To enable standby mode, follow the steps below. 1. Press the from your main screen. 2. A warning screen appears, then tap OK. -
Page 97: Checking The Firmware Version
VP1420 / VP1421 User Manual Checking the Firmware Version To check the firmware version, follow the steps below. 1. press the from your main screen. 2. Below screen appears. -
Page 98: Video Panel
Chapter 6. Video Presentation Control App Video Panel Switching a Source for a Display To switch a source for a display, follow the steps below. 1. To switch Source 2 to Display A. From the display page, drag the Source to Display A. -
Page 99: Display A Settings
VP1420 / VP1421 User Manual Display A Settings To configure display settings for the display A, follow the steps below. 1. Tab from the top right corner of the display A. 2. The below screen appears. Tool Description Tap to enable or disable the CEC. The Consumer Electronics... -
Page 100: Auto Switching
Last: Automatically switch the display to the previous available source based on the order of source connection. For example, if sources are connected to the VP1420 / VP1421 in the order of port 2, port 3, port 4 and then port 1, and that Display A is switched to port 3, when the source (port 3) is unplugged, Display A will automatically switch to port 2. - Page 101 VP1420 / VP1421 User Manual 2. The below screen appears. Tool Description Tap to enable or disable the CEC. The Consumer Electronics Control (CEC) allows for control of devices connected through HDMI ports to communicate with each other and makes the control of these devices using one remote control device possible.
-
Page 102: Audio Panel
Chapter 6. Video Presentation Control App Audio Panel VP1420 Audio Output Settings VP1421 Audio Output Settings... - Page 103 VP1420 / VP1421 User Manual System Settings Description Note: Default settings are indicated in bold. Audio Output Overall Increase (+) VP1420: Tap to mute or unmute the volume of Decrease (-) the speaker connected to Mute the VP1420.
-
Page 104: Vp1420 Audio Input Settings
Note: Default settings are indicated in bold. Source Sets the audio source for the Follow independent speaker Display A connected to the Audio Out port Follow of the VP1420 / VP1421. Display B Audio In VP1420 Audio Input Settings VP1421 Audio Input Settings... - Page 105 VP1420 / VP1421 User Manual System Settings Description Note: Default settings are indicated in bold. Audio Input VGA IN 1 VP1421 only: Sets the volume Increase (+) of the VGA source connected to Decrease (-) the VP1421 and tap ...
- Page 106 Chapter 6. Video Presentation Control App System Settings Description Note: Default settings are indicated in bold. Source VP1420 only: Sets the audio Digital Audio source for the HDMI 2 source Embedded connected to the VP1420. Audio In To use the audio source that comes along with the video, select Digital Audio.
- Page 107 VP1420 / VP1421 User Manual System Settings Description Note: Default settings are indicated in bold. Source VP1420: Sets the audio source Digital Audio for the HDMI 4 source Embedded connected to the VP1420. Audio In VP1421: Sets the audio source for the HDMI 4 source connected to the VP1421.
- Page 108 Chapter 6. Video Presentation Control App...
-
Page 109: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 110 Appendix Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.
-
Page 111: Rack Mounting
VP1420 / VP1421 User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 112: Technical Support
For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 North America Email Support support@aten-usa.com Online Technical Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: ... -
Page 113: Specifications
VP1420 / VP1421 User Manual Specifications VP1420 Video Input Interfaces 3 x HDMI Type-A female (Black) 1 x VGA (HDB-15) female (Blue) Max. Distance HDMI: 4K@60Hz (4:4:4) up to 3m 4K@30Hz up to 10m 1080p@60Hz up to 15m VGA: ... - Page 114 Video Output Port 2 x Pushbuttons (LED: Orange) Selection Selection Mute: 1 x Pushbutton Mode/Unlock: 1 x Pushbutton EDID Mode ATEN Default, Display A, Remix Connectors Power 1 x DC jack (Black) Power Consumption DC 5V, 7.21W Environmental Operating Temperature 0 - 40°C...
-
Page 115: Vp1421
4K@30Hz (4:4:4) up to 40m (Cat 6a or ATEN 2L-2910 Cat 1080p @60Hz up to 60m (Cat 5e/6) 1080p @60Hz up to 70m (Cat 6a or ATEN 2L-2910 Cat 6) Video Output Interfaces 1 x HDMI Type-A female (Black) 1 x HDBaseT (RJ-45) female (Silver) with selectable PoH Max. -
Page 116: Limited Warranty 108Limited Warranty
Appendix Supported Upscaling Upscaling resolutions: & Downscaling 1080p 60Hz to 4K 60Hz Resolutions 1080p 50Hz to 4K 50Hz 1080p 24Hz to 4K 24Hz 1080p 25Hz to 4K 25Hz 1080p 30Hz to 4K 30Hz Downscaling resolutions: ... - Page 117 VP1420 / VP1421 User Manual Switches Power 1 x pushbutton (LED: Green/Orange), 1 x slide switch (+48 phantom power), 1 x slide switch (PoH) Video Input Port 4 x pushbuttons (LED: Green) Selection Video Output Port 2 x pushbuttons (LED: Orange)
- Page 118 ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
