Bally ProSlot 6000 Setup And Operation

Table of Contents

Quick Links

Download this manual

ProSlot®

6000

MODULE 2

MK2-S6MOD-0013

SETUP AND OPERATION

Bally Gaming and Systems

6601 South Bermuda Road, Las Vegas, NV 89119

Table of Contents

Need help?

Do you have a question about the ProSlot 6000 and is the answer not in the manual?

Questions and answers

Dan Sladek

May 10, 2025

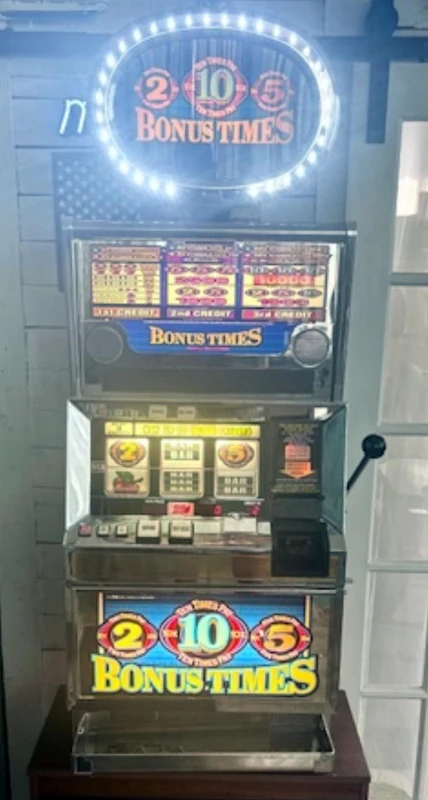

Sound Volume adjustment On Bally's 6000Bonus Times slot

1 comments:

Mr. Anderson

May 20, 2025

To adjust sound volume on the Bally ProSlot 6000, use the PRD Sound Enable option if the machine is equipped with a top box that has separate sound capabilities. Specific volume adjustment steps are not provided, but sound settings are controlled through machine options.

This answer is automatically generated

Summary of Contents for Bally ProSlot 6000

Page 2 For Customer Service and information, call or FAX: 1-877-GO-BALLY (877-462-2559) in the U.S. and Canada +1-702-896-7772 outside the U.S. 896-7772 in Las Vegas FAX: +1-702-896-7710 or visit our website at http://www.ballygaming.com...
Page 3 Credit Collect Messages ..........................22 Accounting....................23 Electromechanical Meters ..........................23 Machine Meter Groups........................... 24 00: Model Information ..........................24 01: Bookkeeping ............................25 01: Bookkeeping (MC=3 or MC=4) ......................26 - Revised, - New SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 4 #11 - Game Optioning............................. 41 #12 - Peripherals Test............................. 41 #13 - Data Vault™ Records ..........................42 #15 - Hopper Dump............................42 #16 - Topbox Test ............................42 - Revised, - New ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 5 Memory Malfunctions, 8x Series Malfunction Codes.................. 44 Communication Errors, 9x Series Malfunction Codes ................44 Reel Malfunctions, 4x and 7x Series Malfunction Codes ................44 Malfunction and Game Codes ..............45 - Revised, - New ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 6 Center Door Optic Audit Key Switch Diverter Assembly WBA Bill Acceptor Button, Switch COIN ACCEPTOR Button PSEUDO COIN Button RESET Power Switch Circuit Hopper Speaker Breakers MPU Assembly - Revised, - New SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 7 Assembly Fluorescent Starters Coin Optic (Behind Reels) Decoder Board Electromechanical Meters and Audit Key Switch Power Supply Button COIN ACCEPTOR Switch Button PSEUDO Button RESET MPU Board Hopper - Revised, - New ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 8 99.33 98.73 W6 (Extended) 99.79 “W6” Style Cabinet 129.73 157.85 Warning: Use a maximum of six machines for each 120VAC 20A grounded circuit. “S” and “E” Style Cabinets - Revised, - New SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 9 Installing the Machine Unpack and Inspect Machine Installation Checklist Unpack and inspect the machine. If the machine is damaged, contact a Bally Gaming and Systems Review environmental and power requirements Distributor or Customer Service Representative for Return Merchandise Authorization (RMA) Unpack and inspect machine information.
Page 10 Lithium batteries can cause them Remove the hopper. Mark the center of the stand. to explode. Replace failed batteries Washer with Bally part E-00628-0023 or its equivalent. Cam Stop Door Open Detect Circuit Some jurisdictions require a signal for a door opening while the machine power is .
Page 11 03356-0424 and MPU parts kit K- 0012 0.20 00820-0005. 0013 0.10 0014 0.05 0015 0.01 0016 4 (MC=07) *MC 22 does not support denomination less than 2.00 - Revised, - New 2-11 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 12 For a Complete, Full, or Partial SafeRAM™ Clear, turn the machine power . Unlock and remove the MPU assembly. If SafeRAM™ Clear EPROMs are required, remove the Main EPROMs from U28 and U43 and - Revised, - New 2-12 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 13 •Selects a level of SafeRAM™ Clear Reset MPU Assembly •Releases a machine tilt •Exits test and diagnostics the procedure completes without interruption. Volume ProSound •Adjusts the level of sound Board - Revised, - New 2-13 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 14 Rebet, no autospin Machine (0000) S/MPI indentification number (Must 0004 Rebet, autospin at max credits 78Lo Number 0000-0032 match progressive controller). 0005 Rebet, autospin at max coins or credits - Revised, - New 2-14 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 15 Jurisdictions only. Directed 0002 Printer Only * Option 22, Tokenization, is only displayed if DS 3, Switch 6 is in the Payment 0003 Printer and Hopper position. Configuration - Revised, - New 2-15 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 16 Host ® Progressive system. Multi-Area Progressive System (0003) supports a bidirectional RS-232 serial link for Bally 07 Number of External Game Jackpots Thrillions™. Once set, changing the option The available jackpots are determined by the requires a SafeRAM™ Clear.
Page 17 With some versions of Mains, setting Option 27, SPIN Bet Mode, to 0003 (Coin to Credit) and Option 22 to Note: A SafeRAM™ Clear is required to change Tokenization settings. - Revised, - New 2-17 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 18 Remaining credits must be paid 2-Light Service Top Flashing by an Attendant. 0003 Jackpot Top Steady Tilts Bottom Flashing Door(s) Bottom Steady Hopper Pay Top Steady - Revised, - New 2-18 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 19 The option is 70, 71, 72 MAPS Progressive Cabinet ID available only in markets 3 and 4. Bally Multi Area Progressive System (MAPS) 64 Minimum Voucher Pay requires a unique ID. Options 70, 71, and 72 are The minimum value of a voucher can be 12-digit numbers set four digits at a time.
Page 20 Each line can have up to 24 characters. The line ends at a null entry (00). characters are entered as a hexadecimal number of a printable ASCII character. The null - Revised, - New 2-20 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 21 0001 and from left to right, the decimal points shown in WIN PAID Option 78Hi to be set to 0001 or greater. represent the following: - Revised, - New 2-21 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 22 WIN PAID This decimal point will remain until the start of the next game event. Example 1 WIN PAID 8 8 8 - Revised, - New 2-22 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 23 Total Out Drop Paid (Coin/Credit) Combined Attendant Bill Change Total In Total Out Drop Paid (Coin/Credit) Combined Attendant Bill Change Total In Total Out Drop Paid (Coin/Credit) - Revised, - New 2-23 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 24 Model Information Group Values as transmitted from the progressive control- shown is the EPROM Number ler. Requires configuration for S/MPI pro- gressive operation (Option 02=0004). - Revised, - New 2-24 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 25 Games played since the last time the door information is total in (12 VLC) Door Open was opened. Games Since Games played since a system reset. (13 VLC) Reset - Revised, - New 2-25 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 26 The following is an example of the Message Center for the month and day in , and YYYY for the WIN PAID as it displays Win Records. year in CREDIT - Revised, - New 2-26 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 27 0 2 0 0 amount. The eigth sequence displays the function name and the ninth sequence shows the amount of Amount Total Credits Meter Cashed Out Group - Revised, - New 2-27 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 28 5 Bill Number of 5 bills accepted 10 Bill Number of 10 bills accepted on. Next, the LED displays time in HH MM SS format - Revised, - New 2-28 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 29 Exit the meter group and ERR 3 Coining Error final four digits of the jackpot finish the game. The values will display upon amount $553,576.50 re-entering the meter group. - Revised, - New 2-29 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 30 8 would indicate an disabled machine that has credits available, 1 non-cashable credits invalid acknowledgment the message can be processed, and this message was received status is reported. - Revised, - New 2-30 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 31 Meters remain secure number specific record is available by within the machine even if the circuit boards change— pressing BET MAX even if the machine is without power. - Revised, - New 2-31 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 32 5 9 5 9 1. 4 twelve numbers in Sequences Eleven and Twelve. Hours are shown in The minutes and seconds WIN PAID are shown in CREDIT - Revised, - New 2-32 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 33 Attendant Pay from Collect Lockup (Receipt Printed) Attendant Pay from Win Lockup (Receipt Printed) Attendant Pay from Collect Lockup (No Receipt) Attendant Pay from Win Lockup (No Receipt) - Revised, - New 2-33 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 34 ® Status Transaction Type/System ID Wager Match wager match. Date Validation Number Machine Paid External Bonus legacy bonus cumulative ® Time Amount Payout total. - Revised, - New 2-34 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 35 Reset reset. Coupon Promotion Out Games Since Door Close Games played since the last time the door was closed. Games Since Game Total of revenued games. Initialization - Revised, - New 2-35 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 36 The third digit of shows the number of each WIN PAID item. For the first item, 010d appears in WIN PAID shows the Personality EPROM identification REDIT number. - Revised, - New 2-36 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 37 F Feature 8 Lamp 6.5 VAC Deflector Solenoid. Thereafter, the Coin Deflector Solenoid +24 VDC ports cycle sequentially. Total In Meter +24 VDC Total Out Meter +24 VDC - Revised, - New 2-37 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 38 LED on the COD board or the green LED on • Value in coins or credits vended for each bill the Coin Mechanisms CC-16 acceptor. denomination. - Revised, - New 2-38 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 39 Note: Holding when entering CHANGE Test #5 initiates a reel calibration and store the reel-stop center position in SafeRAM™. - Revised, - New 2-39 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 40 WIN PAID pattern cycles in the Message Center that illuminates Note: Reel tilts generated with the each segment and decimal point. main door open are not recorded. - Revised, - New 2-40 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 41 It requires jumper BET MAX and holding SPIN JW18 to be installed on the MPU board. Refer to the Jumper table (page 2-9). - Revised, - New 2-41 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 42 Bad Data Transfer No Response and Bad Data Bad CRC No Response and Bad CRC Bad Data and Bad CRC No Response, Bad Data, and Bad CRC - Revised, - New 2-42 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 43 A one-coin overpay may indicate a faulty hopper control board. If the problem persists, If a tilt occurs, the machine exhibits the following: contact a Bally Field Service Technician. 1. The numerical tilt code displays in WIN PAID A 31 code coin-out jam may indicate tampering or 2.
Page 44 Results when Option 02, Progressive 91-2 Option Error Type, is set to 0004, and Option 78Lo, Machine Number, is set to 0000. - Revised, - New 2-44 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 45 (Market Game in Host Host is in the process of configuring Disconnect 91-9 Codes 3, 4, 12, 28, and 29). Configuration the game. - Revised, - New 2-45 ©2004 Bally Gaming and Systems ProSlot 6000 ®...
Page 46 Game in ROM Game receives a ROM signature request 91-d Signature from the host. Calculation Game Locked Out 91-b Game locked out by the host. by the Host - Revised, - New 2-46 SETUP AND OPERATION ©2004 Bally Gaming and Systems...
Page 48 For Customer Service and information, call or FAX: 1-877-GO-BALLY (877-462-2559) in the U.S. and Canada +1-702-896-7772 outside the U.S. 896-7772 in Las Vegas FAX: +1-702-896-7710 or visit our website at http://www.ballygaming.com...
