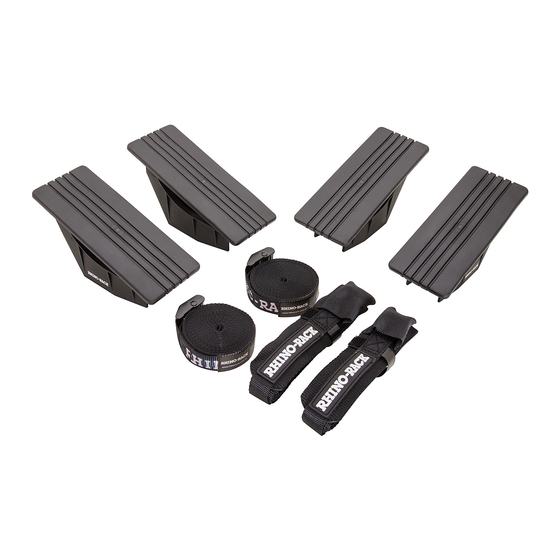

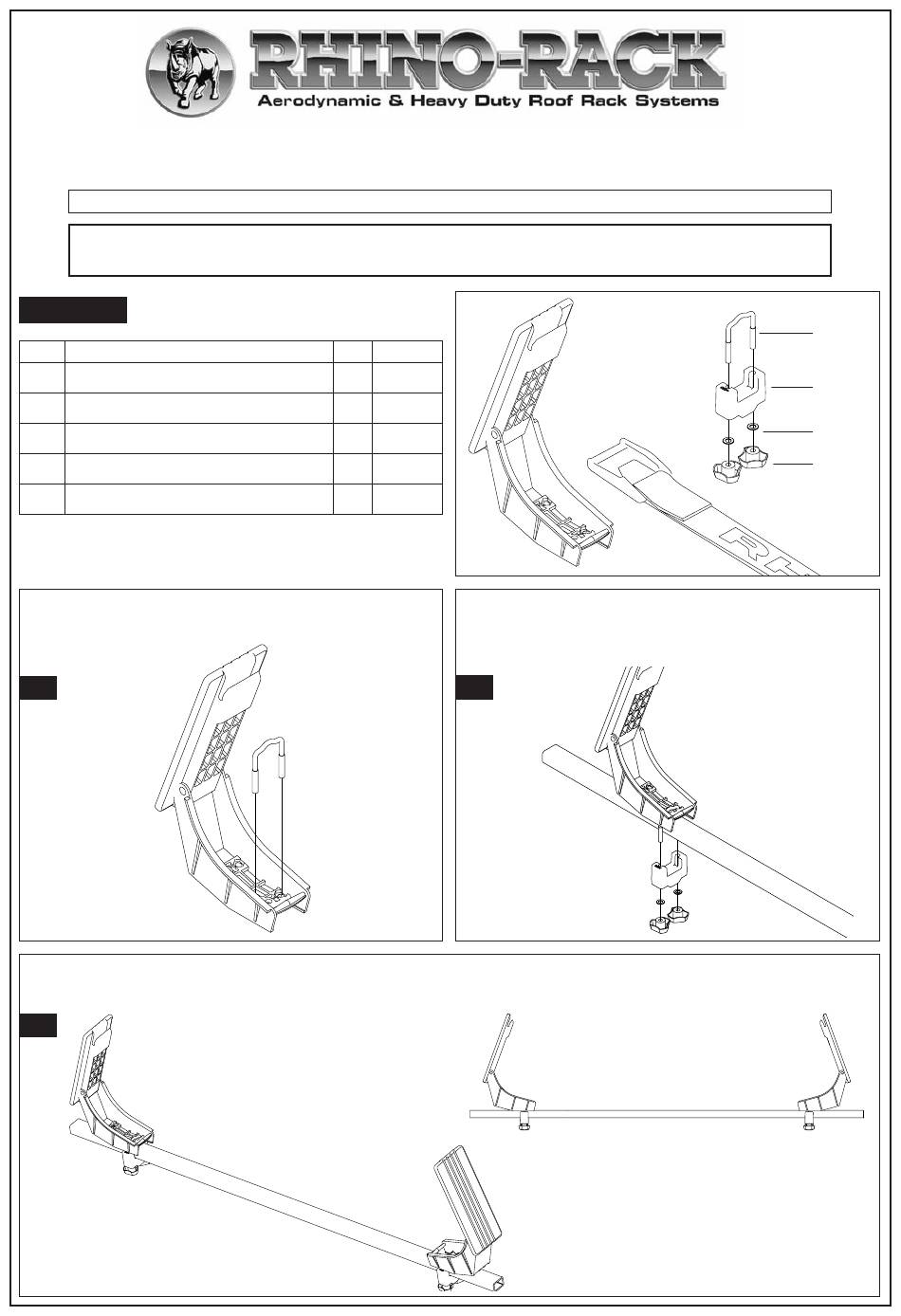

Rhino-Rack S400-FK2 Instructions

Place these instructions in the vehicle's glove box after installation is complete.
Important: Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the cross bars are installed in the correct locations.
Check the contents of kit before commencing fi tment and report any discrepancies.

Parts List

Item Component Name
1 M6 U-Bolt
2 European Bar "U" Adaptor Block
3 M6 x 16mm x 1.6mm Flat Washer
4 M6 Plastic Knob
5 Fitting Instruction
Insert the U-bolt through the kayak / canoe carrier
mounting holes (front or back holes).
1
Adjust the carriers to suit the kayak or canoe, then tighten the knobs to secure the carriers.
3
S400-FK2
EUROPEAN Bar 32mm x 22mm
Qty. Part No.
4 C064
4 M083
8 W031
8 N008
1 RS-273
Place the carrier and U-bolt over the crossbar. Insert
the European bar adaptor block, fl at washers and
knobs onto the U-bolt.
2
1
2
3
4
