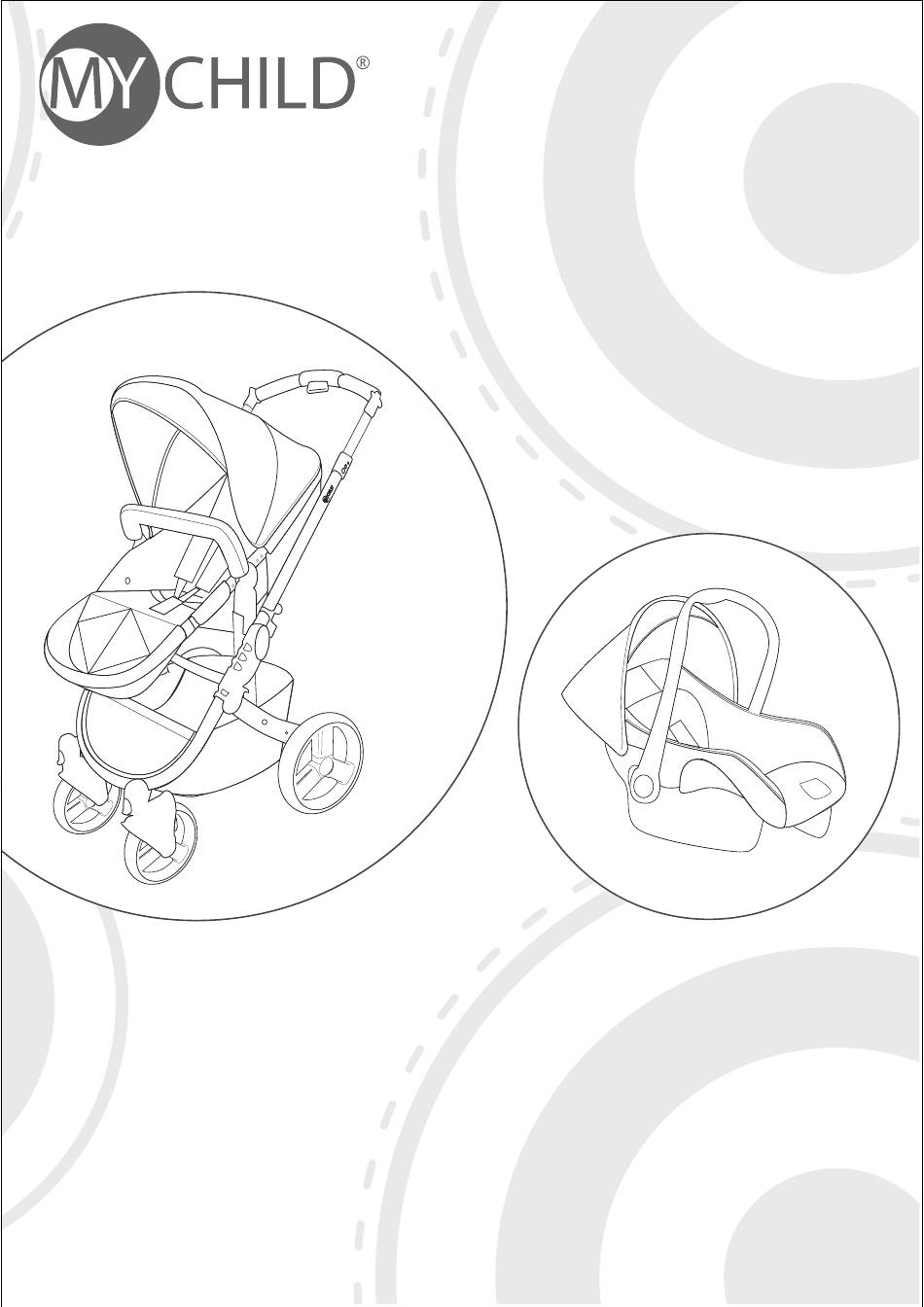

Pinto Travel System
Travel system with seat unit, infant carrier, hood
and raincover
Seat unit is suitable from 6months up to 15kg
This product is tested to: BSEN1888:2003 (A1-A3:2005)
Group 0+ infant carrier suitable from birth to 13kg
Confroms to ECE R44.04
Instructions:
reference. Your childs safety may be affected if you do not
follow these instructions
Please read carefully and keep for future
Advertisement
Related Manuals for My Child Pinto
Summary of Contents for My Child Pinto
- Page 1 Pinto Travel System Travel system with seat unit, infant carrier, hood and raincover Seat unit is suitable from 6months up to 15kg This product is tested to: BSEN1888:2003 (A1-A3:2005) Group 0+ infant carrier suitable from birth to 13kg Confroms to ECE R44.04...
- Page 2 Thank you for purchasing the MyChild Pinto. Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact your MyChild retailer.
- Page 3 Opening the stroller A. Release the storage latch by pulling the storage latch release lever, then lift the handle to open the stroller. B. Make sure both locks snap into place on both sides of the stroller. Assembling the wheels C.1.
- Page 4 Folding the stroller F . Release the carrying latch. See page 3 (A and B) for instructions IMPORTANT NOTE: be careful not to mistake the 1-finger carrying latch with the 2-finger safety lock lever (H). NOTE: remove child from stroller and lock the brake so the stroller is secure. G.
- Page 5 Fitting and removing the carrycot and infant carrier *Carrycot is optional extra O. (+Q carrycot is optional extra) To attach the seat, carrycot or the infant carrier to the stroller frame place onto the two adapters found on each side of the chassis, make sure both locks click into place. P.
- Page 6 Operating the harness S.1. T o secure the harness, snap each side of the waist belt into the centre buckle. Adjust shoulder straps and waist band to fit child by adjusting the sliders . T o release press tabs inwards on the quick release fastener and pull apart ( S.2).
- Page 7 Safety Information when using the seat unit and car seat with the pushchair chassis This seat unit is suitable for children from 6months to 15kg. Warning: to avoid injury ensure that your child is kept away when unfolding and folding this product. Warning: do not let your child play with this product.
- Page 8 Safety advice when using the car seat in a vehicle Warning: the correct fitting of the car seat belt (following the red guide markings) is of vital importance for the safety of your child. See the labels on the seat itself. Warning: keep these instructions with the seat for future reference.
- Page 9 Car seat travelling advice In order to maximise the protection that the seat can give your child, please adjust the harness so that it fits snugly and make sure that the seat is fitted correctly. Research shows that correct installation is the most important factor in car seat safety.
- Page 10 Parts Shoulder strap Harness adjuster Belt hook Handle adjustment Carry handle Shoulder pads Crotch pad Insert cushion Head hugger Handle adjustment Face the seat: push the red button each side of the handle, rotate and release the red button to desired position until you hear a click.
- Page 11 Harness adjustment (Approx weights) 10kg - 13kg Newborn - 10kg C.1. This car seat has 2 sets of slots. Select the most suitable slots according to the child’s weight. The shoulder harness straps should emerge from the backrest level with (or slightly above) the child’s shoulders.
- Page 12 Installing the car seat D. Choose a seat suitable for fitting the car seat to. See section above. E. Pull the seat belt straps so there is a lot of slack allowing you to wrap it around the car seat. This will make it easier to thread through the correct mounting points F.
-
Page 13: Fitting The Harness
Fitting the harness START HERE Note: a new J3 - Place the child in the seat and ensure born baby will there are no spaces need extra under the child. support around the head and body. Please don't remove the cushion if you are going to use it for your newborn baby... - Page 14 Customerservice@kooltrade.co.uk Imported by MyChild. M34 3QA www.mychildonline.co.uk...
