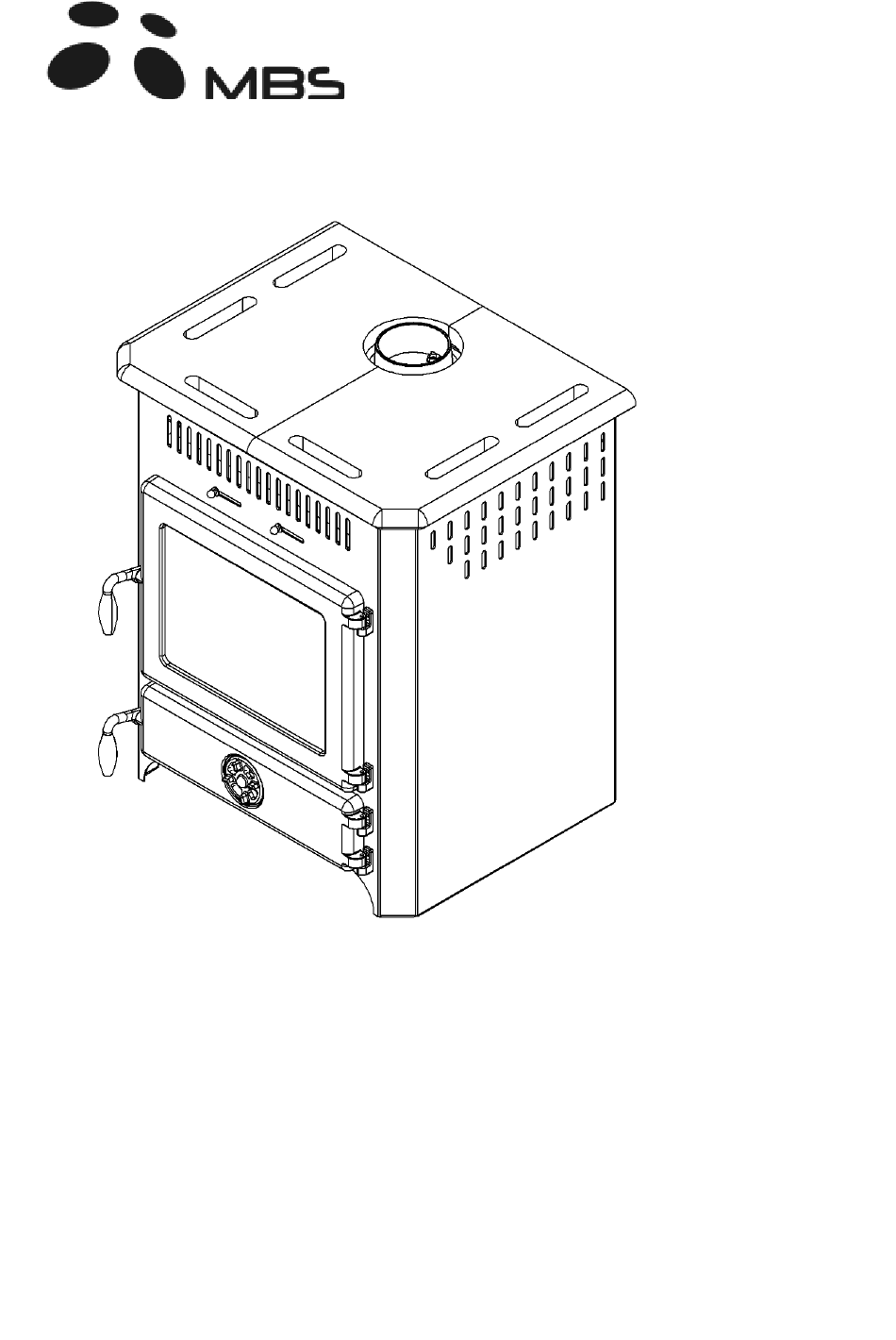

- Page 1 MANUAL INSTRUCTION Solid fuel stove for central heating – THERMO VULKAN...
- Page 2 DEAR CUSTOMER, We appreciate your trust dedicated to us and your determination to buy our product. You made a good choice, since this oven has technical characteristics which place it into top class, and you will be assured of it during exploitation. Please, carefully read this manual before you start to use his oven, since you will find tips and tricks for proper handling.
-
Page 3: Table Of Contents
CONTENTS Warning before use ................1 Description ....................2 Installation .....................4 Installation to the water heating system ..........6 Managing operation of the stove...……..…………………....10 Firing up and ignition ….................11 Cleaning and maintenance ..............12 General notes …..................13 Advices for environmental protection.............13... -
Page 4: Warning Before Use
WARNING BEFORE USE To obtain proper operation of your stove, it is important to read this manual and strictly observe directions for use and handling. For combustion, use solid fuels like woods, briquettes and low-caloric coal. It is forbidden to put explosive devices and materials into the firebox or on the plate. It is forbidden to keep combustible materials in direct vicinity of the stove. -
Page 5: Description

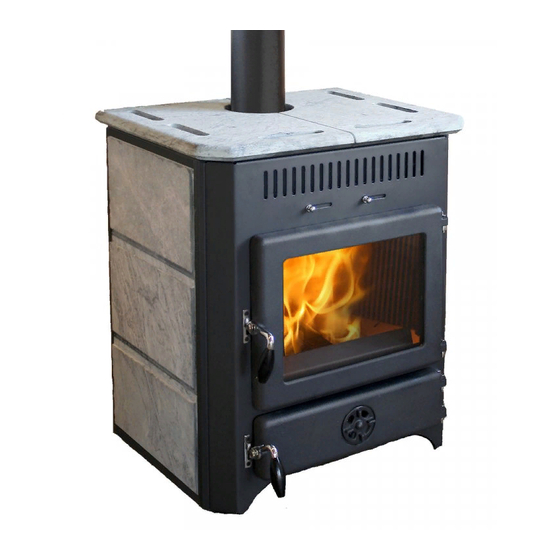

Floor oven Thermo Vulkan has boiler of 24 liters capacity which is made of boiler sheets with standard thickness. With production like this, life span of the boiler increases. - Page 6 Fig. 2 TECHNICAL DATA Technical characteristics Product name THERMO VULKAN Product purpose Solid fuel stove for central heating Nominal power (wood/ coal) 19,7 / 24.8 kW Power given to water (wood/ coal) 14 / 14.5 kW 5,7 / 10,3 kW...
-
Page 7: Installation
INSTALLATION Do not put the stove in direct vicinity of wooden elements, cooling devices, plastic parts of the furniture and other combustible materials, since it creates high working temperature which is distributed at the exterior of the stove. The least distance between oven and surrounding elements is 50 cm, and from combustible materials 80 cm. - Page 8 If draft in the chimney is weak (fig. 2a), check accuracy of the chimney. Chimney should be located within interior of an object, and if it’s on external walls of an object, it is recommended to insulate the chimney. Fig. 3 Defaults of the chimney may be: (fig.
-
Page 9: Installation To The Water Heating System
Installation into the water heating system For intake and and drainage of water into the system of floor (central) heating, 1" boiler connector are provided. Stove may be mounted on closed or open central heating system. Mounting on closed central heating system One of the installations is depicted on the fig. - Page 10 Fig. 5 Scheme of closed heating system Mounting on open heating system One of the aspects of carrying out installations is shown on fig. 6. At this system, on initial guide: safety distribution guide of expansion vessel and valve of the boiler are to be installed in order, and on initial guide of the system boiler valve, pump and valve are to be installed.
- Page 11 Note: Installation and putting into operation of the entire system must be carried out exclusively by professional who guarantees proper operation of entire heating system. In case of weak design of the system and eventual defaults during installation carried out by mentioned professional, which again may cause improper operation, complete material responsibility is transferred to such professional,not manufacturer, representative or vendor.
- Page 12 Fig. 6 Scheme of open central heating system FIRING UP AND IGNITION Prior to the first ignition, wipe all enameled surfaces of the stove with dry mop to avoid combustion of dirt on the stove and creation of unpleasant scents. Firing up in the firebox should be carried out as follows: •...
-
Page 13: Managing Operation Of The Stove
door (fig. 1, pos. 3). Stove has secondary air flow regulation due to improvement of combustion and maintaining firebox glass clean. By combining primary air through regulator on the ashtray door and secondary air via buttons above firebox door (fig.1, pos. -
Page 14: Firing Up And Ignition
Start firing up with moderate fire in terms of avoiding thermal shocks. Following quantity of woods is to be inserted only when previous quantity gets burned. Do not allow clogging of the grid with ashes and unburned fuel. Clean the grid. Open the door slowly and carefully, not abruptly, enabling equalization of pressures in the firebox and room, otherwise, it may cause occurrence of smoke in the room. -
Page 15: Cleaning And Maintenance
Fig. 7 During burning, turn regulator button into position of maximally opened flap in direction shown on fig. 8. During operation, depending on temperature, regulator flap will open and close automatically. If we want lower temperature then set, turn regulator button in desired position of minimally open flap, and it closes. Button is to be turned using auxiliary tools by putting longer side of the tool into the bed of the button and turning, as necessary. -
Page 16: General Notes
IRREGULARITIES IN OPERATION AND TROUBLESHOOTING In the following table, there are most frequent operating irregularities and troubleshooting. Table: Display of the most frequent irregularities, possible causes and troubleshooting. Problem Possible cause Remedy Carefully read and • observe manual Stove weakly heats Irregular handling •... -
Page 17: Advices For Environmental Protection
- It is forbidden to burn inorganic and organic waste (plastic, cardboard, textile, oiled wood etc.), since within combustion it discharges cancerous and other harmful materials. A.D. “Milan Blagojević” Smederevo Đure Strugara 20 11300 Smederevo tel: 026 633 600 026 633 601 fax: 026 226 926 e-mail: servis@mbs.rs www.mbs.rs...
