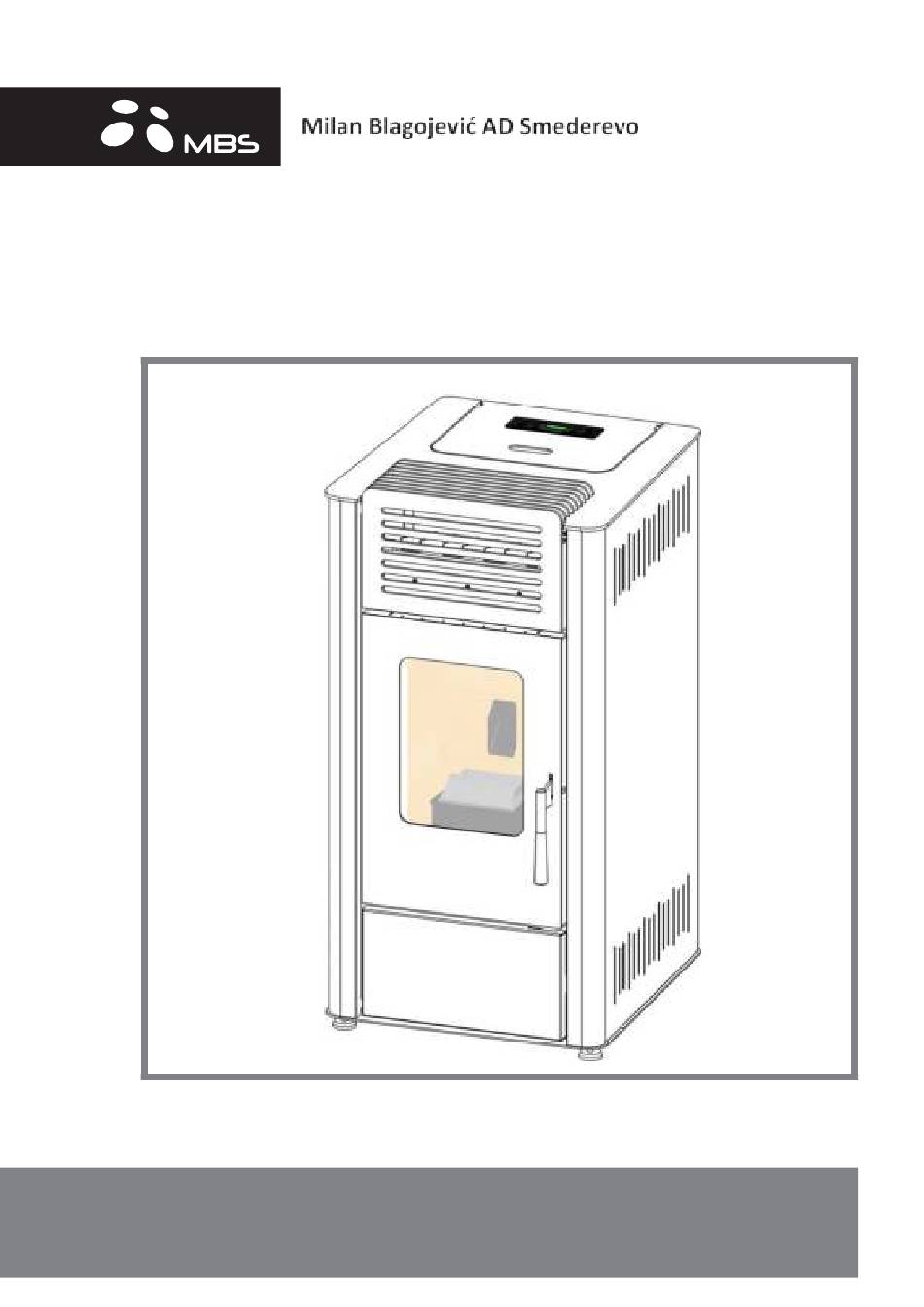

INSTRUCTIONS FOR INSTALLATION AND USE
Pellet Stove
HELLIA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HELLIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MBS HELLIA

Summary of Contents for MBS HELLIA

  • Page 1 INSTRUCTIONS FOR INSTALLATION AND USE Pellet Stove HELLIA...

  • Page 3: Table Of Contents

    Pellet Stove - HELLIA - 8kW DEAR CUSTOMER Thank you for trusting us and deciding to buy our product. You made a good choice, since the stove has technical characteristics that place it at the very top of its class, which you will see during operation.

  • Page 4: General Safety Information

    INSTRUCTIONS FOR INSTALLATION AND USE 1. INTRODUCTION Important: Warning: Please read these instructions carefully. They These instructions are an integral part of the stove, describes all the phases and gives all the please check whether it was delivered with the stove. In advices for smooth stove operation.

  • Page 5: General Notes

    If the stove is still overloading, contact the MBS The fire-pot where the pellet burns is constructed to service center at: 026/633 670 enable most of the combustion products to end up in the ashtray.
  • Page 6 INSTRUCTIONS FOR INSTALLATION AND USE In order to achieve combustion, the fuel and the oxidant must be available in the proper ratio. The reaction between these two elements is started by a stoked heater which ignites the pellets that are in the stove fire-pot, then the fuel and the oxidant are mixed resulting in combustion.
  • Page 7 Pellet Stove - HELLIA - 8kW 3.5. Stove Components (Image 3) 1 – electronic controller 2 – pellet container door 3 – pellet container – top plate – side – firebox door – firebox door glass – firebox door handle –...

  • Page 8: Technical Information

    INSTRUCTIONS FOR INSTALLATION AND USE 3.6. Technical Information The table shows technical information for three stove models - 8kW. MODEL HELLIA Dimensions (HxWxL) 1000x520x560 Chimney connection On the back side Ø80 Height from the floor to the flue connection axis...

  • Page 9: Connecting The Stove To The Chimney

    Pellet Stove - HELLIA - 8kW • The minimum room size where it may be installed is 20- Important: 25 m2, otherwise the stove will not be properly utilized. Before installing the stove, check the draft in the • The installer should guarantee easy access to the stove chimney, since it is one of the key factors for proper and chimney.

  • Page 10: Stove Connection Examples

    INSTRUCTIONS FOR INSTALLATION AND USE Chimney defects may include: • Poorly designed windshield • Foreign objects, protrusions or other obstacles in the chimney • Chimney cracks • Accumulated soot (due to lack of cleaning) • Duct inserted too deep in the chimney •...
  • Page 11 Pellet Stove - HELLIA - 8kW Connection to External Chimney Image 6 shows the correct connection to the external chimney. The chimney must have proper insulation. The top must be fitted with a cap for rain and wind protection, while the bottom must be fitted with a tee for collection of condensate in the chimney.
  • Page 12 INSTRUCTIONS FOR INSTALLATION AND USE Connection to Internal Chimney Image 7 shows the correct way to connect the stove to the internal chimney. 80 mm diameter flue ducts are used for connection within a room. The ducts do not have to be insulated, but it is important to provide adequate sealing at the duct connections.
  • Page 13 Pellet Stove - HELLIA - 8kW Connection for a Combination of Internal and External Chimney Image 8 shows the stove installation with a combination of internal flue ducts and an external chimney. The external chimney must be insulated, the top must be fitted with a cap for rain and wind protection, and it must have a condensation regulation system.
  • Page 14 INSTRUCTIONS FOR INSTALLATION AND USE Note: If the flue ducts are installed without a tee and the condensation container as in Image 9, you must prevent condensation and dust accumulation in certain zones of the flue curves. This type of stove installation is allowed with mandatory regular maintenance and cleaning of flue ducts.

  • Page 15: Stove Commissioning - Obligation Of The Authorized Person

    Pellet Stove - HELLIA - 8kW 6. STOVE COMMISSIONING – OBLIGATION OF THE AUTHORIZED PERSON After the stove had been correctly installed according to power and the chimney, that it is at a safe distance from the requirements and regulations, the stove will be put flammable materials, that it had high quality pellet and into operation.

  • Page 16: The Pellet

    INSTRUCTIONS FOR INSTALLATION AND USE 8. THE PELLET Description: Use of pellet in MBS stoves: Pellet is a product obtained by pressing sawdust from We recommend procuring the pellet from authorized dry, high-calorie wood. Sawdust is subjected to high pellet distributors and manufacturers who can guarantee pressure where it heats up and creates a natural binder.
  • Page 17 7-13 08:10 INSTRUCTIONS FOR INSTALLATION AND USE Image 11 18.5°C P- 4 OFF...

  • Page 18: Stove Commissioning

    Pellet Stove - HELLIA - 8kW 9.1. Stove Commissioning ENGLISH SERBIAN Once the stove is connected to 07:33 power, set the power switch located at the back of the stove to position 1. 16.5°C The display will show the following...

  • Page 19: Adjusting The Heating Intensity (Heating Power)

    INSTRUCTIONS FOR INSTALLATION AND USE Once the flame is lit in the burner ENGLISH SERBIAN and the exhaust gases’ temperature is achieved, the lighter is turned off and the display shows the message FLAME LIGHT 07:42 07:4 (Image 17). 16.5° 16.5°...

  • Page 20: Achieving The Desired Temperature During Operation

    Pellet Stove - HELLIA - 8kW 9.4. Achieving the Desired ENGLISH SERBIAN Temperature During Operation 12:0 12:0 Once the set room temperature is achieved, the stove goes to the economy mode where it saves fuel, 22°C 22°C WORK and the display shows the message...
  • Page 21 INSTRUCTIONS FOR INSTALLATION AND USE To avoid restarting the stove twice ENGLISH SERBIAN use the option LOAD INITIAL to start the dispenser spiral and loading the pellet without starting the stove! LOAD INITIAL option can’t start until the display reads OFF! The starting NEnu NEnu option process is as follows: load the...

  • Page 22: Display Clock And Date Setting

    Pellet Stove - HELLIA - 8kW 9.8. Display Clock and Date Setting ENGLISH SERBIAN The pellet stove can be turned on and off during the day and this is regulated by programs. In order to program the stove, you must first set the clock and date on the control unit display.

  • Page 23: Language Setting

    INSTRUCTIONS FOR INSTALLATION AND USE Press the SET and use key 1 or 2 to ENGLISH SERBIAN set the month (Image 31). NEnu NEnu MONT MESEC Image 31 DATUM CLOCK Press the SET and use key 1 or 2 to set the year (Image 32).

  • Page 24: Stove Operation Programming

    Pellet Stove - HELLIA - 8kW 9.10. Stove Operation Programming ENGLISH SERBIAN There are 3 types of boiler programming: - Daily programming - Weekly programming - Weekend programming The following describes each individual programming. Daily Programming The stove can be turned on and off...
  • Page 25 INSTRUCTIONS FOR INSTALLATION AND USE Press key 4 and then key 5 and the ENGLISH SERBIAN display will read as in Image 39. N-3-2 N-3-2 PROGRA DNEVNO M DAY PROGRA Image 39 Press the SET key and then key 1 to activate the daily programming (On) as shown in Image 40.
  • Page 26 INSTRUCTIONS FOR INSTALLATION AND USE...
  • Page 27 Pellet Stove - HELLIA - 8kW Press the SET key and set the ENGLISH SERBIAN stove shutdown time (Image 44). Once the final setting with key 4 is done, we go back to the main menu 11:50 11:50 and the display will indicate that the programming is active.

  • Page 28: Weekend Programming

    INSTRUCTIONS FOR INSTALLATION AND USE Repeat the same process and set ENGLISH SERBIAN the stove shutdown time in the first program (Image 48). 12:00 12:00 N-3-3- N-3-3- 02 STOP 02 STOP PROG-1 PROG-1 Image 48 Press the SET key and use key 1 to activate (ON) or deactivate (OFF) the program 1 for the corresponding weekday from Monday to Sunday as...
  • Page 29 Pellet Stove - HELLIA - 8kW Press the SET key to activate the ENGLISH SERBIAN weekend program as shown in Image N-3-4- N-3-4- CHRONO VIKEND WEEK- PROGRA Image 50 Press the SET key and key 1 to set the of the first stove ignition as shown in...

  • Page 30: Stand-By Mode Programming

    INSTRUCTIONS FOR INSTALLATION AND USE 9.11. Stand-by Mode Programming Note: When the stove reaches a higher or lower temperature than the set one, it does not turn off and The stand-by mode is practically a type of a thermostat. does not start immediately, but has its own time interval When operating the stove, if the room temperature is set that it needs to react.

  • Page 31: Pellet Type

    Pellet Stove - HELLIA - 8kW 9.12. Pellet Type ENGLISH SERBIAN TYPE PELLET option (the pellet type) enables you to decrease or increase the pellet load! Depending on the pellet quality, you can correct the pellet dose in all modes! If the user determines that the...

  • Page 32: Alarms

    INSTRUCTIONS FOR INSTALLATION AND USE This message does not affect the operation of the stove, but it is shown on the display until it is canceled by simultaneously holding down keys P1 and P6 for a few seconds! The service menu monitors the time when the cleaning message appeared and this will show whether the boiler was...
  • Page 33 Pellet Stove - HELLIA - 8kW ENGLISH SERBIAN 07:47 18.5°C 35 OFF Image Every time the alarm appears, the display will read ATTESA RAFFRED 07:54 07:5 (Image 65) indicating that the alarm will continue, and you can cancel it by 18.5°C P-...
  • Page 34 INSTRUCTIONS FOR INSTALLATION AND USE On-screen indication AL 5 / NO LIGHTNING - AL 5 / NEMA PLAMENA Description The flame did not ignite. When is it activated The stove didn’t detect the flame within the given time interval. What to do Turn off the stove by pressing the ON/OFF button for several seconds.

  • Page 35: Warranty Statement

    WARRANTY STATEMENT MBS declares that the stove will function flawlessly if you install parts that do not correspond to the original ones. follow the given instructions. We undertake to provide...
  • Page 36 INSTRUCTIONS FOR INSTALLATION AND USE NOTES...
  • Page 38 Đure Strugara 20, 11300 Smederevo, Serbia phone: 026 633 600 / 026 633 601 fax: 026 4629 941 e-mail: office@mbs.rs www.mbs.rs...
