Summary of Contents for MBS Thermo IN

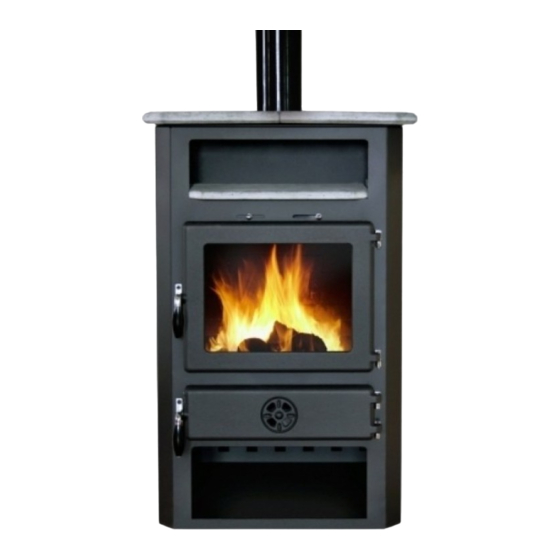

- Page 1 INSTRUCTIONS FOR INSTALLATION AND MANUAL Solid fuel stove for central heating THERMO IN...
- Page 2 Please, read carefully this instructions before you use Thermo In, in order to find hints and tips for proper handling and maintenance. We also believe that you will put your signature in the book of satisfied customers of our products.
-
Page 3: Table Of Contents
CONTENTS Warning before use……............1 Stove description...............2 Installation ................4 Installation of stove into the system for water heating....6 Operation ..……..…………………........10 Procedures for ignition and lighting ……....……...11 Cleaning and maintenance ............12 General notes ................13 Advices for environmental protection ........13... -
Page 4: Warning Before Use
WARNING BEFORE USE In order to put your stove in regular operation, it is very important to read these instructions and observe instructions for use and handling. For combustion, use solid fuel like wood, briquette, but not stone coal due to its high calorie combustion power. -
Page 5: Stove Description

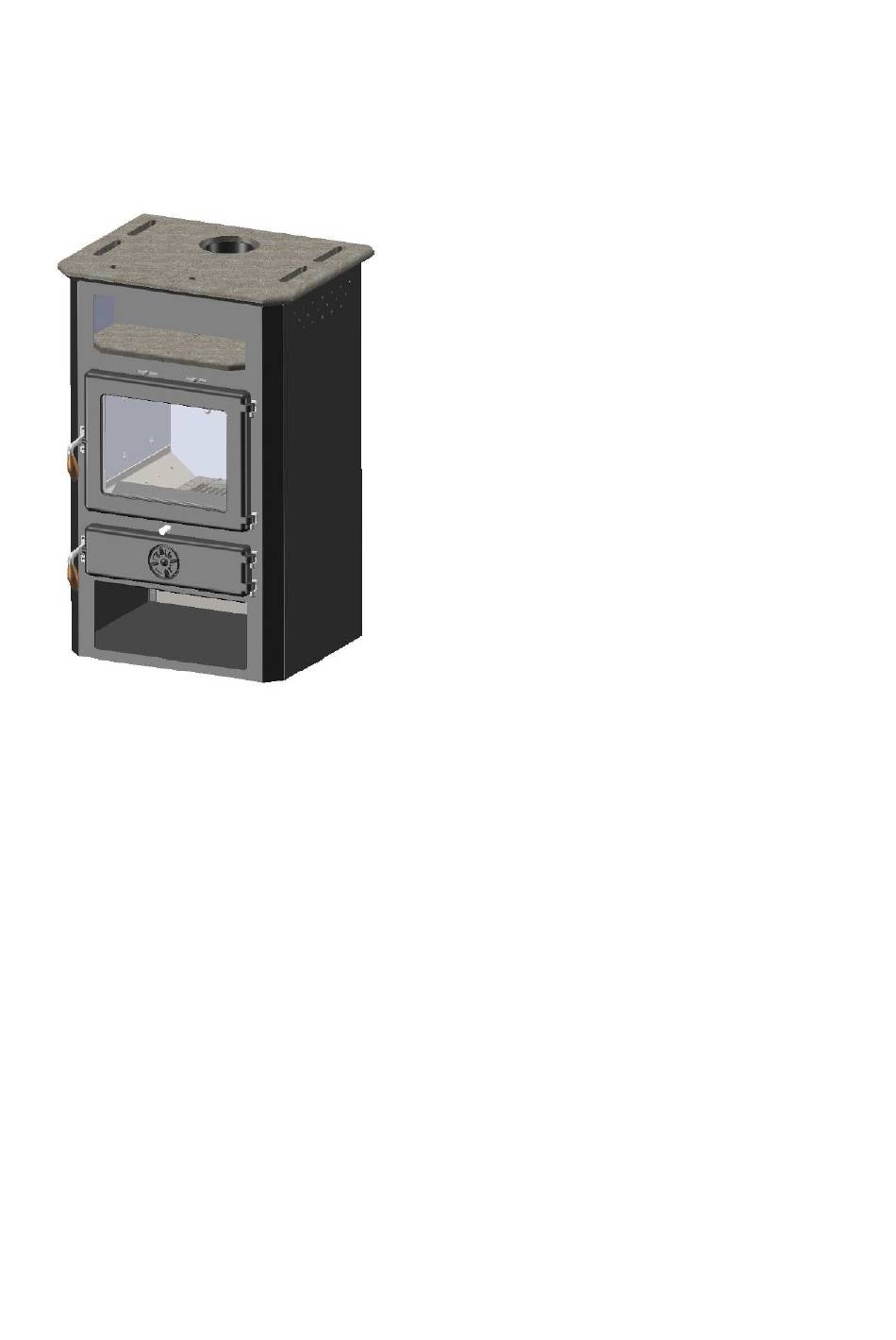

STOVE DESCRIPTION Figure 1. Integral parts of Thermo IN furnace 1 – ashtray 2 – ashtray door 3 – thermo-regulator button 4 – grate handler 5 – natural stone hotplate 6 – fume outler 7 – fire door 8 – auxiliary regulator 9 –... - Page 6 Solid fuel stove for central heating Thermo IN is made and tested according to the European standard EN 13240. Figure 1 shows appearance of stove with integral parts important for handling and use. Table 1 gives its technical characteristics. Table 1. Technical characteristics...
-
Page 7: Installation
Figure 2 Central heating stove Thermo IN possesses boiler with the 23l capacity made of standardized boiler metal-sheet. With such this production improves boiler life span. Water adapters are 1“. Work table of stove is consisted of plate made of natural stone (figure 1, position 5) with cast adapter for smoke exhaust (figure 1, position 6) which is mounted on plate by two screws. - Page 8 Prior to installation of stove, check chimney draught since it is one of key factors for proper operation. Draught depends on integrity of the chimney and meteorological conditions. One of the simplest ways for checking of draught in chimney is by candle flame, as described on figure 3.
-
Page 9: Installation Of Stove Into The System For Water Heating
- For water inlet and outlet within the system of floor (central) heating are provided with adapters on boiler 1". - Thermo IN may be installed on closed or open system of central heating. Installation on closed central heating system One of the aspects of mounting installations is depicted on figure 5. - Page 10 Figure 5 Scheme of closed central heating system...
- Page 11 Installation on open central heating system One of the aspects of installation is depicted on figure 6. At this system, starting guides are to be mounted in sequence, safety distribution guide of expansion vessel and boiler valve, and on starting guide of the system boiler valve, pump and valve are to be installed.
- Page 12 Figure 6 Scheme of open central heating system...
-
Page 13: Operation
MANAGING STOVE OPERATION Pace of combustion, as well as quantity of heat transmitted by the stove, depends on the quantity of primary air for combustion which is brought into the area below firebox. Regulation of quantity of primary air is provided automatically using thermo- regulator Rathgeber (figure 7). -
Page 14: Procedures For Ignition And Lighting
PROCEDURES FOR IGNITION AND LIGHTING Prior to the first ignition, clean all enameled surfaces of the stove by dry mop in order to avoid combustion of dirt on stove and creation of undesirable scents. Note: Upon first ignition, there may be slight smoking, especially at colored surfaces. All cast parts are protected with thermo-resistant color which obtains its stability after few ignitions. -
Page 15: Cleaning And Maintenance
- regularly remove ash from ashtray - to regularly remove gravel and non-combusted materials from the firebox, with cleaning set Accumulated gravel and non-combusted materials should be regularly removed from the firebox, by cleaning set. CLEANING AND MAINTENANCE Through regular and proper cleaning, you enable proper operation and stove life span. -
Page 16: Advices For Environmental Protection
A.D. “Milan Blagojević” Smederevo Đure Strugara 20 11300 Smederevo tel: +381 26 633 600 +381 26 633 601 fax: 026 226 926 e-mail: office@mbs.rs servis@mbs.rs www.mbs.rs...
