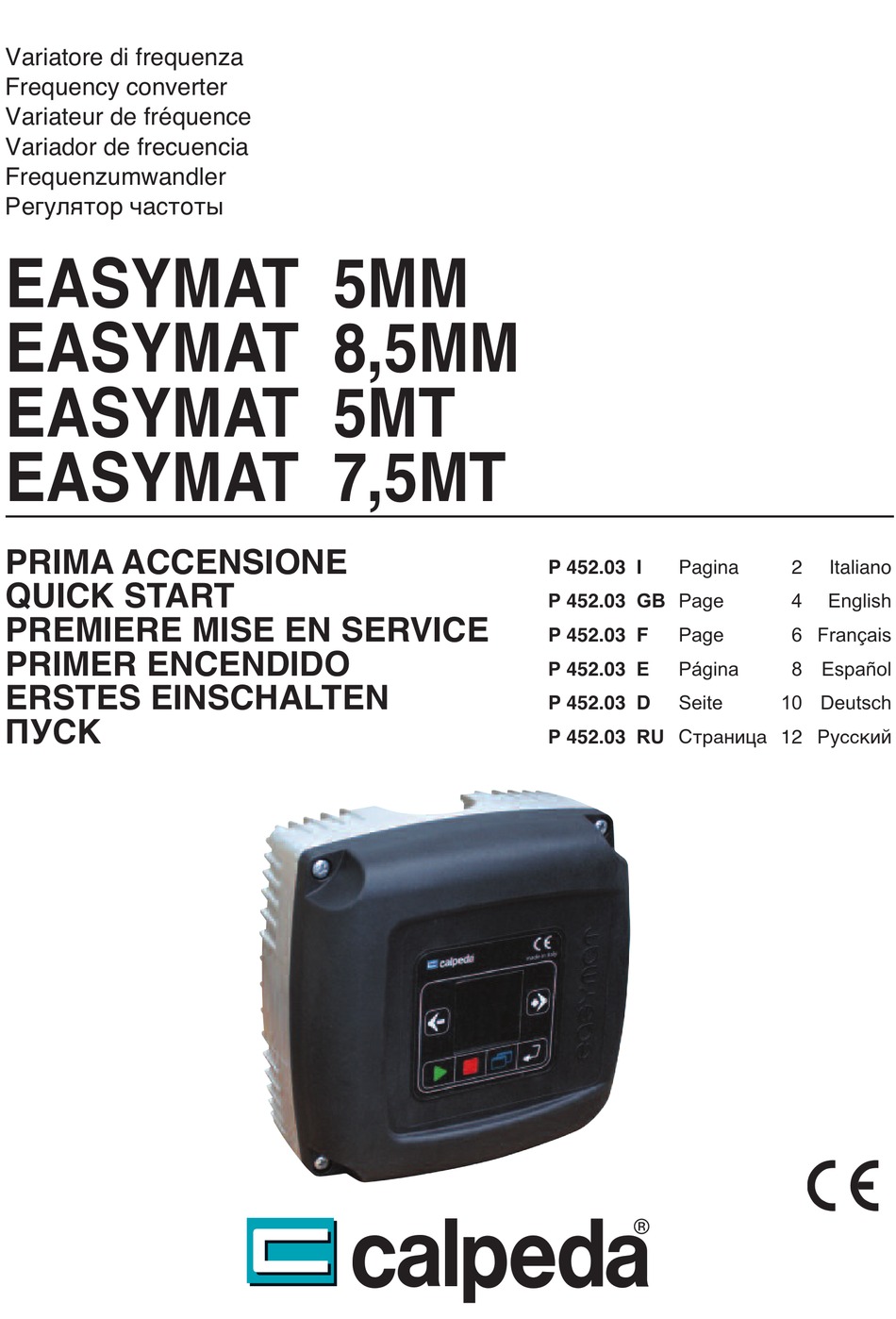

Calpeda EASYMAT 5MM Quick Start Manual
  1. Manuals
  2. Brands
  3. Calpeda Manuals
  4. Media Converter
  5. EASYMAT 5MM
  6. Quick start manual
Calpeda EASYMAT 5MM Quick Start Manual

Calpeda EASYMAT 5MM Quick Start Manual

Frequency converter
Hide thumbs Also See for EASYMAT 5MM:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 32

Quick Links

Download this manual
GB Page
P
Page
Página
P
E
Seite
RU ëÚ‡Ìˈ‡
P
4
English
6 Français
8 Español
10 Deutsch
êÛÒÒÍËÈ

Advertisement

loading
Need help?

Need help?

Do you have a question about the EASYMAT 5MM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Calpeda EASYMAT 5MM

Summary of Contents for Calpeda EASYMAT 5MM

  • Page 1 GB Page English Page 6 Français Página 8 Español Seite 10 Deutsch RU ëÚ‡Ìˈ‡ êÛÒÒÍËÈ...
  • Page 2 Modalità pompa singola 4. UP05 pressione di lavoro 1. Avviamento UP02 UP03 UP05 2. UP02 corrente nominale 5. Inversione senso rotazione della pompa UP04 (motore trifase) 3. UP03 frequenza nominale...
  • Page 3 Modalità multipompa 6. Collegamento multipompa RS 485 7. AP10 impostazione Master/Slave 8. AP09 modalità multipompa...
  • Page 4 Single pump mode 4. UP05 set point pressure 1. Start UP02 UP03 UP05 2. UP02 nominal current 5. Inversion of the direction of rotation UP04 (three-phase motor) 3. UP03 nominal frequency...
  • Page 5 Cascade mode 6. Cascade mode connection RS 485 7. AP10 Master/Slave setting 8. AP09 Cascade mode...
  • Page 6 Modalité pompe unique 4. UP05 pression de travail 1. Démarrage UP02 UP03 UP05 2. UP02 courant nominal 5. Inversion du sens de rotation pompe UP04 (moteur triphasé) 3. UP03 fréquence nominale...
  • Page 7 Modalité multi-pompe 6. Branchement multi-pompe RS 485 7. AP10 définition Maitre/Esclave 8. AP09 modalité multi-pompe...
  • Page 8 Modalidad bomba individual 4. UP05 Presión de utilización 1. Arranque UP02 UP03 UP05 2. UP02 Corriente nominal 5. Invertir el sentido de la rotación de la bomba UP04 (motor trifásico) 3. UP03 Frecuencia nominal...
  • Page 9 Modalidad Multibomba 6. Conexión multibomba RS 485 7. AP10 Establecer Master/Slave 8. AP09 Modalidad Multibomba...
  • Page 10 Modus Einzelpumpe 4. UP05 Betriebsdruck 1. Einschalten UP02 UP03 UP05 2. UP02 Nennstrom 5. Wechsel der Drehrichtung Motors UP04 (Drehstrommotor) 3. UP03 Nennfrequenz...
  • Page 11 Modus Multipumpe 6. Verbindung RS 485 7. AP10 Master/Slave Einstellung 8. AP09 Modalität Multipumpe...
  • Page 12 Режим работы с одним насосом 4. UP05 рабочее давление 1. Пуск UP02 UP03 UP05 2. UP02 номинальная сила тока 5. Изменение направления вращения насоса UP04 (с трехфазным двигателем) 3. UP03 номинальная частота...
  • Page 13 Режим работы с несколькими насосами 8. AP09 режим работы с несколькими насосами 6. Подсоединение нескольких насосов RS 485 7. AP10 Настройка главного/ зависимого регулятора...
  • Page 14 Corrente nominale Nominal current Courant nominal Corriente nominal Nennstrom Н а а а а Frequenza nominale Pressione di lavoro Nominal frequency Set point pressure Fréquence nominale Pression de travail Frecuencia nominal Presión de utilización Nennfrequenz Betriebsdruck Н а а а а...
  • Page 16 RoHS...
  • Page 17 RU ëÚ‡Ìˈ‡ êÛÒÒÍËÈ...
  • Page 20 4.93.410 4.93.409.1...
  • Page 21 (b1-b2) 4.93.412...
  • Page 22 4.93.412.1...
  • Page 23 RS 485...
  • Page 24 RA 100...
  • Page 26 4.93.410...
  • Page 31 Modifica parametro - Change parameter - Changement de paramètre Cambio de parámetros - Parameterwert ändern - а а а...
  • Page 34 4.93.410 4.93.409.1...
  • Page 35 (b1-b2) 4.93.412...
  • Page 36 4.93.412.1...
  • Page 37 RS 485...
  • Page 38 RA 100...
  • Page 40 4.93.410...
  • Page 43 Never run the pump for more than five minutes with closed gate valve.
  • Page 45 Modifica parametro - Change parameter - Changement de paramètre Cambio de parámetros - Parameterwert ändern - а а а...
  • Page 48 4.93.410 4.93.409.1...
  • Page 49 (b1-b2) 4.93.412...
  • Page 50 4.93.412.1...
  • Page 51 RS 485...
  • Page 52 RA 100...
  • Page 54 4.93.410...
  • Page 59 Modifica parametro - Change parameter - Changement de paramètre Cambio de parámetros - Parameterwert ändern - а а а...
  • Page 62 4.93.410 4.93.409.1...
  • Page 63 (b1-b2) 4.93.412...
  • Page 64 4.93.412.1...
  • Page 65 RS 485...
  • Page 66 RA 100...
  • Page 68 4.93.410...
  • Page 73 Modifica parametro - Change parameter - Changement de paramètre Cambio de parámetros - Parameterwert ändern - а а а...
  • Page 76 4.93.410 4.93.409.1...
  • Page 77 4.93.412...
  • Page 78 4.93.412.1...
  • Page 79 RS 485...
  • Page 80 RA 100...
  • Page 82 4.93.410...
  • Page 87 Modifica parametro - Change parameter - Changement de paramètre Cambio de parámetros - Parameterwert ändern - а а а...
  • Page 89 éèÄëçéëíú èéêÄÜÖçàü íéäéå! èÂ‰ ‰ÓÒÚÛÔÓÏ Í ËÌ‚ÂÚÓÛ ÒΉÛÂÚ ÓÚÍβ˜ËÚ¸ ˝ÎÂÍÚÓÔËÚ‡ÌËÂ. íËÔ˚ ç‡ÔflÊÂÌË ‚ÌÛÚË ËÌ‚ÂÚÓ‡ ÓÒÚ‡ÂÚÒfl ÓÔ‡ÒÌ˚Ï, ÔÓ͇ Ì ÔÓ„‡ÒÌÂÚ Ò‚ÂÚÓ‚ÓÈ Ë̉Ë͇ÚÓ ̇ ˆËÙÓ‚ÓÈ Ô‡ÌÂÎË ËÌ‚ÂÚÓ‡. 230Ç å‡ÍÒ. ÒË· ÚÓ͇, 230Ç...
  • Page 90 4.93.410 4.93.409.1...
  • Page 91 ç ÛÒڇ̇‚ÎË‚‡ÈÚ ˝ÎÂÍÚÓ˘ËÚ ‚ ÏÂÒÚ‡ı, Ì Á‡˘Ë˘ÂÌÌ˚ı ÓÚ ÒÓÎ̈‡ ËÎË fl‰ÓÏ Ò ËÒÚÓ˜ÌË͇ÏË ÚÂÔ·. (b1-b2) 4.93.412...
  • Page 92 4.93.412.1...
  • Page 93 RS 485...
  • Page 94 RA 100...
  • Page 96 4 93 410...
  • Page 101 Modifica parametro - Change parameter - Changement de paramètre Cambio de parámetros - Parameterwert ändern - а а а...
  • Page 102 Cavo motore Installazione Componenti aggiuntivi Motor cable Installation Additional components Câble du moteur Installation Composants supplémentaires Cable motor Instalación Componentes adicionales Motorkabel Installation Zusätzliche Komponenten...
  • Page 103 Lunghezza massima Indicazioni Maximum lenght Indications Longueur maximum Indications Longitud máxima Indicaciones Höchstlänge Hinweise...
  • Page 104 Motor cable Installation Additional components Câble du moteur Installation Composants supplémentaires Cable motor Instalación Componentes adicionales Motorkabel Installation Zusätzliche Komponenten Tipologia di filtro Filter type Type de filtre EASYMAT Tipo de filtro Filtertyp EASYMAT 5MM EASYMAT 5MT EASYMAT 8,5MM EASYMAT 7.5MT...
  • Page 105 Lunghezza massima Indicazioni Maximum lenght Indications Longueur maximum Indications Longitud máxima Indicaciones Höchstlänge Hinweise Indicazioni Indications Indications Indicaciones Hinweise...
  • Page 106 4.93.414.1 4.93.414.2 4.93.414.3 Max. ø 4,5 mm...
  • Page 107 4.93.414.6 4.93.414.5 4.93.414.4...
  • Page 110 ÑÂÍ·‡ˆËfl ÒÓÓÚ‚ÂÚÒÚ‚Ëfl "Calpeda S.p.A." 2004/108/ 2006/95/...
  • Page 112 RoHS...

This manual is also suitable for:

Easymat 8,5mmEasymat 5mtEasymat 7,5mt
